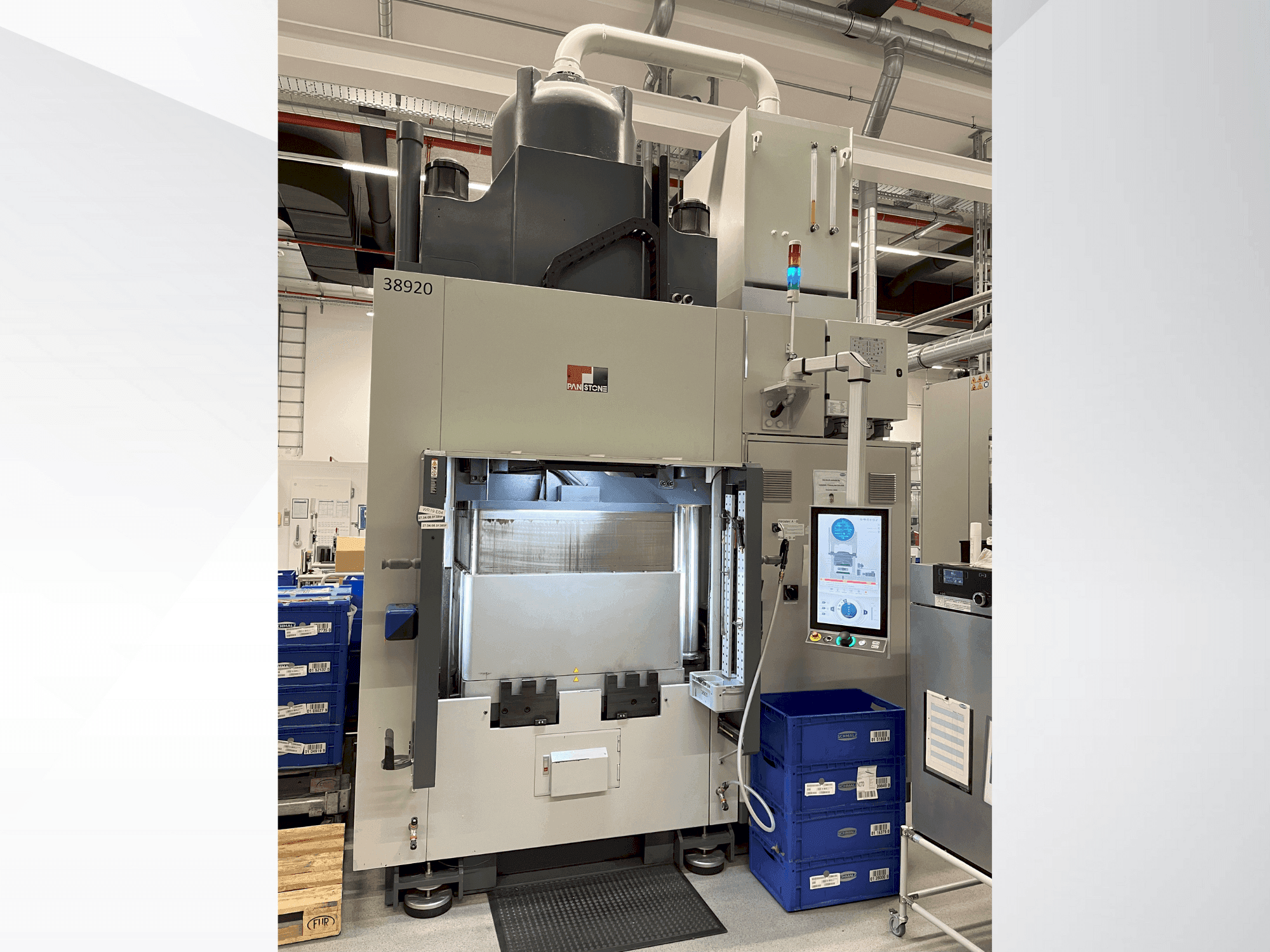

Front view of PAN Stone D-V-500-PCD machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

PAN Stone D-V-500-PCD

Photo Gallery

PAN Stone - D-V-500-PCDDE-OTH-PAN-2018-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used PAN Stone D-V-500-PCD For Sale | gindumac.com

Show in original language

This PAN Stone D-V-500-PCD was manufactured in 2018. Ideal for various plastic processing applications, this machine maintains a robust design suitable for diverse industrial environments. Consider the opportunity to buy this PAN Stone D-V-500-PCD plastic processing machine. Contact us for more information.

Overview

brand: PAN Stone
year: 2018
MODEL: D-V-500-PCD
production hours: 5500
application type: Other Plastic Processing Machinery
Location: Germany
machine type: Plastic Processing Machine

Technical Information - PAN Stone D-V-500-PCD

General Data

Measurements width: 1650 mm
Measurements depth: 2750 mm
Measurements height: 4400 mm

Clamping unit

Clamping force: 5000 kN

Additional Information

Additional equipment

22" Touch Display with B&R Control System
Windows-Based Interface
Units Switchable, with Functions Enabled as Needed
Free Process Configuration Possible
Operator Intervention Allowed
Venting/Degassing Function
Weekly Timer
Magnetic Clamping System from Römheld
Integrated Heavy-Duty Rollers
Vacuum Chamber: -900 mbar, Max. 400 mm Stroke, with BUSCH Pump

Machine Benefits

Technical Machine Benefits

Design: upper piston press
Clamping plates (lxw): 800 x 800 mm
Centering pin: diameter 10 mm, 50 mm vertically behind the plate center
Minimum installation height: 54 mm
Maximum installation height: 400 mm
Upper clamping plate: swivels up to 60°
User languages: german and english

Extra Information

Demolding Maximum Opening Stroke: 800 mm Upper Lifting Unit: Controlled, Max. Stroke 300 mm Lower Lifting Unit: Controlled, Max. Stroke 300 mm Clear Width Between Lifting Units: 870 mm Central Ejector: Controlled, Max. Stroke 100 mm Central Ejector Diameter: 45 mm Additional Equipment Seal Positioned Away from Heating Plates Upper Clamping Plate Swivels Up to 60° Oil Preheating Function Interior Lighting 4x Compressed Air Connections Side-Mounted Power Strip, Controllable via Weekly Timer Heavy-Duty Rollers for Easier Machine Setup Profiled Pressing Possible (Transfer Press Functionality)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
