OTT - TornadoDE-EDG-OTT-2008-00001

Rs. 1,847,085
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

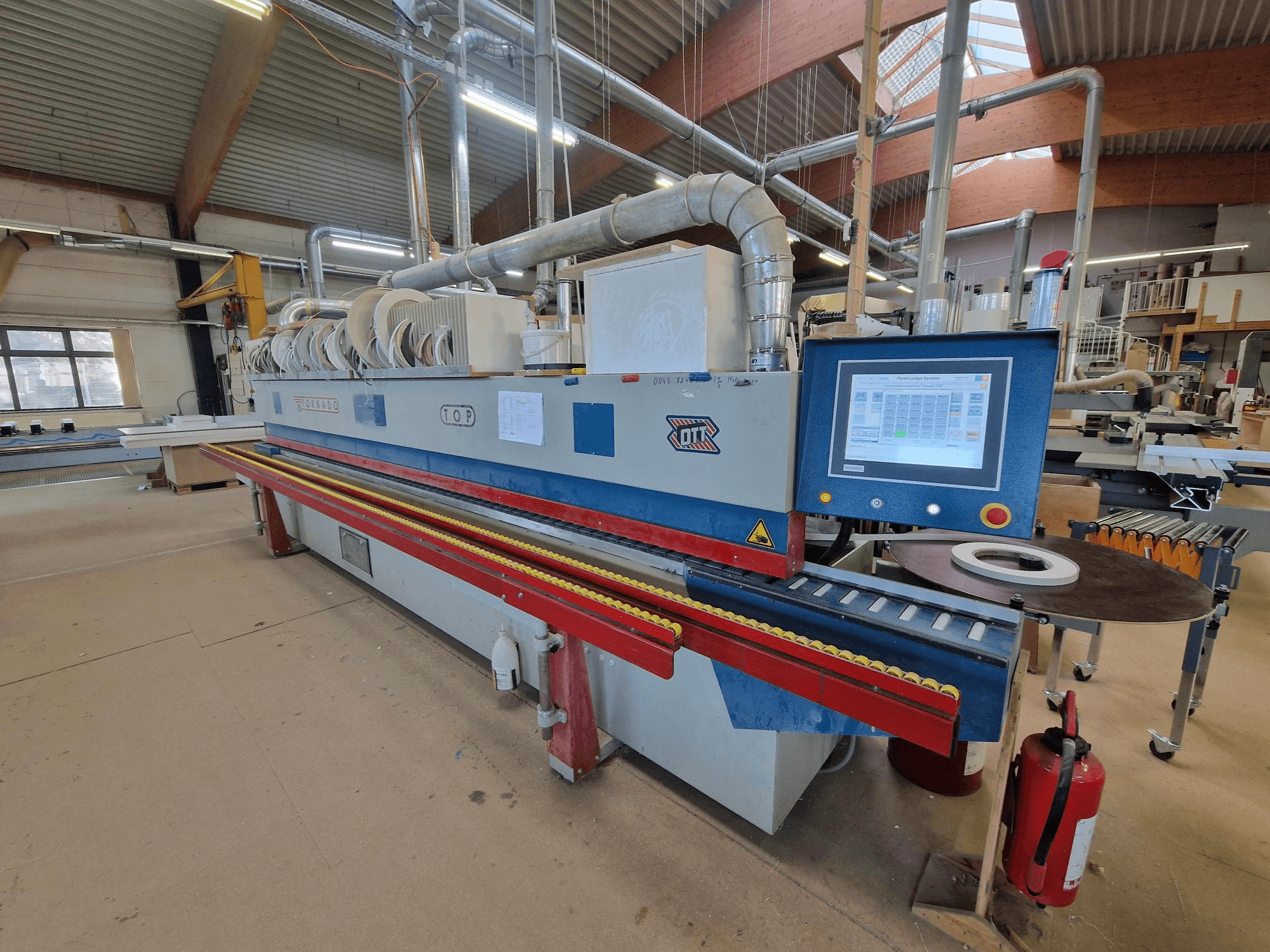

Edgebander manufactured in 2008. This OTT Tornado features a maximum panel thickness of 60 mm and a minimum panel length of 150 mm. It includes a CombiMelt Glueing System and a double end trim unit for efficient processing. If you are looking to get high-quality edgebanding capabilities, consider the OTT Tornado machine we have for sale. Contact us for further details.

Overview

  • brand: OTT
  • year: 2008
  • MODEL: Tornado
  • application type: Edge Banding
  • Location: Germany
  • machine type: Edgebander
  • Available from: 06/08/2026

Technical Information - OTT Tornado

Technical Specification

  • Feed Speed: 14 m/min

Additional Information

- Operating Hours: Approx. 7,900 hours (Calculated average from 2021-2026 following computer replacement in 2021)

- Voltage: 3x400 VAC

- Current: 31 A

- Power: 19.5 KW

- Frequency: 50 Hz

- Control Voltage: 24 VDC

- Max Fuse: 35 A - 5x6mm²

- Edge Dimensions: Max. 65 x 2 mm / 55 x 12 mm

- Panel Thickness: 8 - 60 mm (Up to 42 mm for premilling)

- Panel Length: Min. 150 mm

- Panel Width: Min. 70 mm

- Control System: Panel Lodge System / Beckhoff 15" Color Touch Screen

- Glueing System: CombiMelt Glueing System (Modular design for EVA and PUR hot melt, 1.5-liter hopper)

- Premilling Unit: 2 HF motors (2.2 kW, 12,000 rpm) with diamond tools

- Edge Magazine: For coiled edge material (0.4 - 3.0 mm) with automatic cutting device adjustment

- Double End Trim Unit: 2 HF motors (0.3 kW, 12,000 rpm), automatic positioning 0°/3°

- Rough Trimming Unit (Bfc): 2 motors (0.7 kW, 12,000 rpm)

- Fine Trimming Unit: 2 HF motors (0.3 kW, 12,000 rpm) for radius 2-5 mm

- Radius Scraper: Two-side tracing, automatic positioning with separate dust collection container

- Corner Rounding System (KF-a): 2 HF motors, double-parallelogram guidance, max height 60 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
