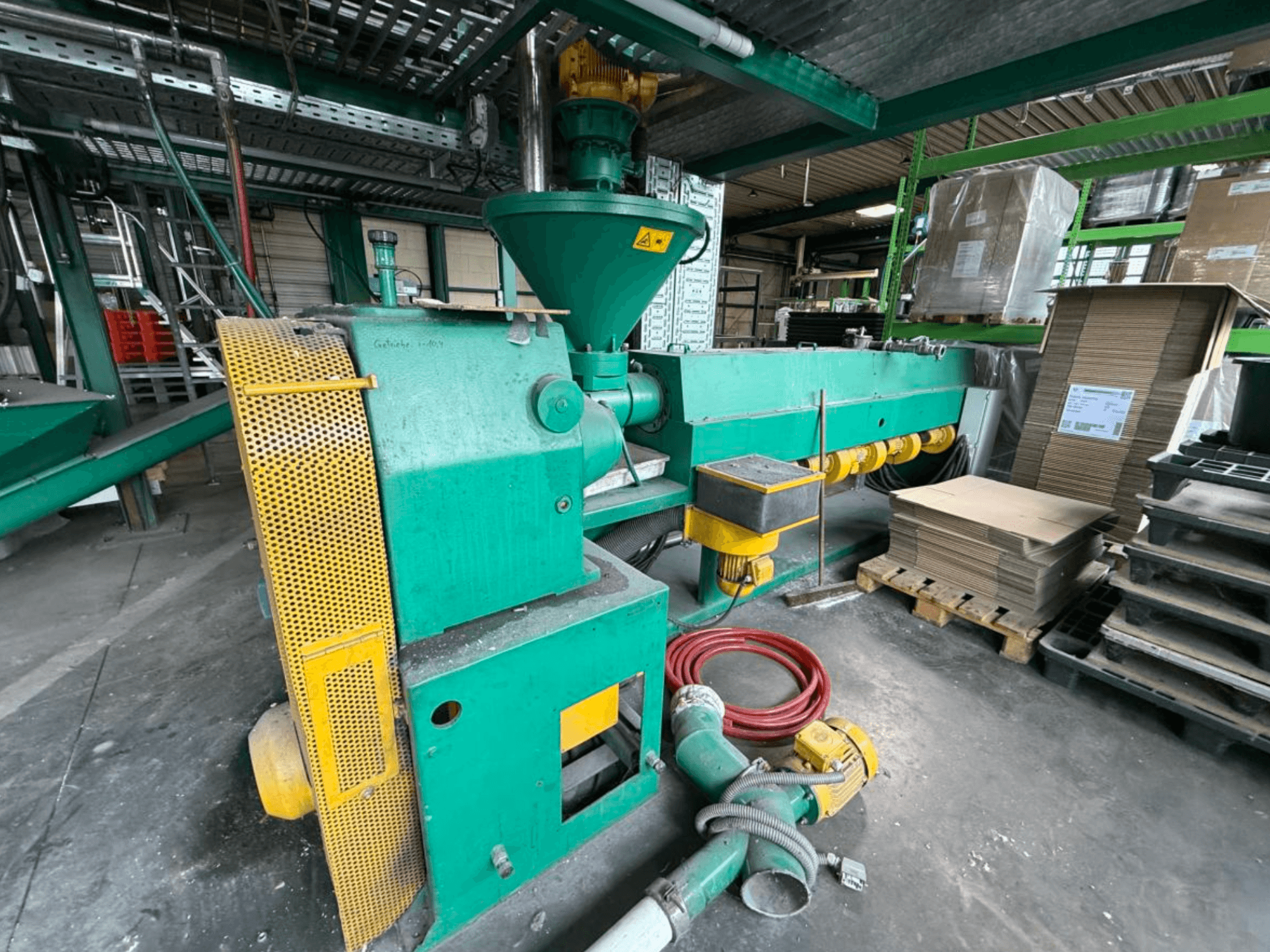

Single screw extruder manufactured in 1986. This PREALPINA Prealpina 105 × 30D features a screw diameter of 105 mm and an output capacity of up to 300 kg/h. It is designed for processing various post-consumer plastics, including PE and PP. The machine includes essential components such as a gravimetric dosing. If you are looking to get high-quality plastic recycling capabilities, consider the PREALPINA Prealpina 105 machine we have for sale. Contact us for further details.
Overview
- brand: Other
- year: 1986
- MODEL: Prealpina 105
- application type: Extrusion
- Location: Germany
- machine type: Single Screw Extruder
Technical Information - Other Prealpina 105
Technical Specification
- Screw Diameter: 105 mm
Additional Information
Machine Type: Plastic Recycling Extrusion Line
Screw Diameter: 105 mm
L/D Ratio: 30:1
Extruder Type: Single Screw Extruder
Material Processed: PE, PP, LDPE, HDPE (Post-consumer plastics)
Output Capacity: Up to 300 kg/h
Installed Power: 255 kW
Power Supply: 3 × 400 V + N + PE
Main Drive: Faurndau (renewed in 2021)
Degassing: Single Degassing
Barrel: Bi-metal Barrel C60/R121
Screw Design: Ø105 mm with spiral shear and rhombic mixing section, RC3 hard-faced flights
Material Feeding System: Screw Feeding from Silo
Feeding Equipment: Feeding Screws, Elevator, Gravimetric Dosing Units, Stuffing Unit
Hopper Type: Gravity Hopper
Screen Changer / Melt Filter: Ettlinger ERF 250 (Laser-Perforated Continuous Filter)
Pelletizing System: ECON EUP 600 Underwater Pelletizing System
Machine Condition: Good Working Condition
Availability: Immediately Available, Decommissioned / Dismantled
Spare Parts Pack: New Screws and Cylinder Sets
Melt filter and underwater granulation system have already been dismantled
Optional
Masterbatch Dosing
Water Bath
Water Pump
Heat Exchanger
Centrifuge
Extraction Blower
Cyclone
Vacuum Pump
Spare Parts Pack: New Screws and Cylinder Sets
Big Bag Loading Station
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
