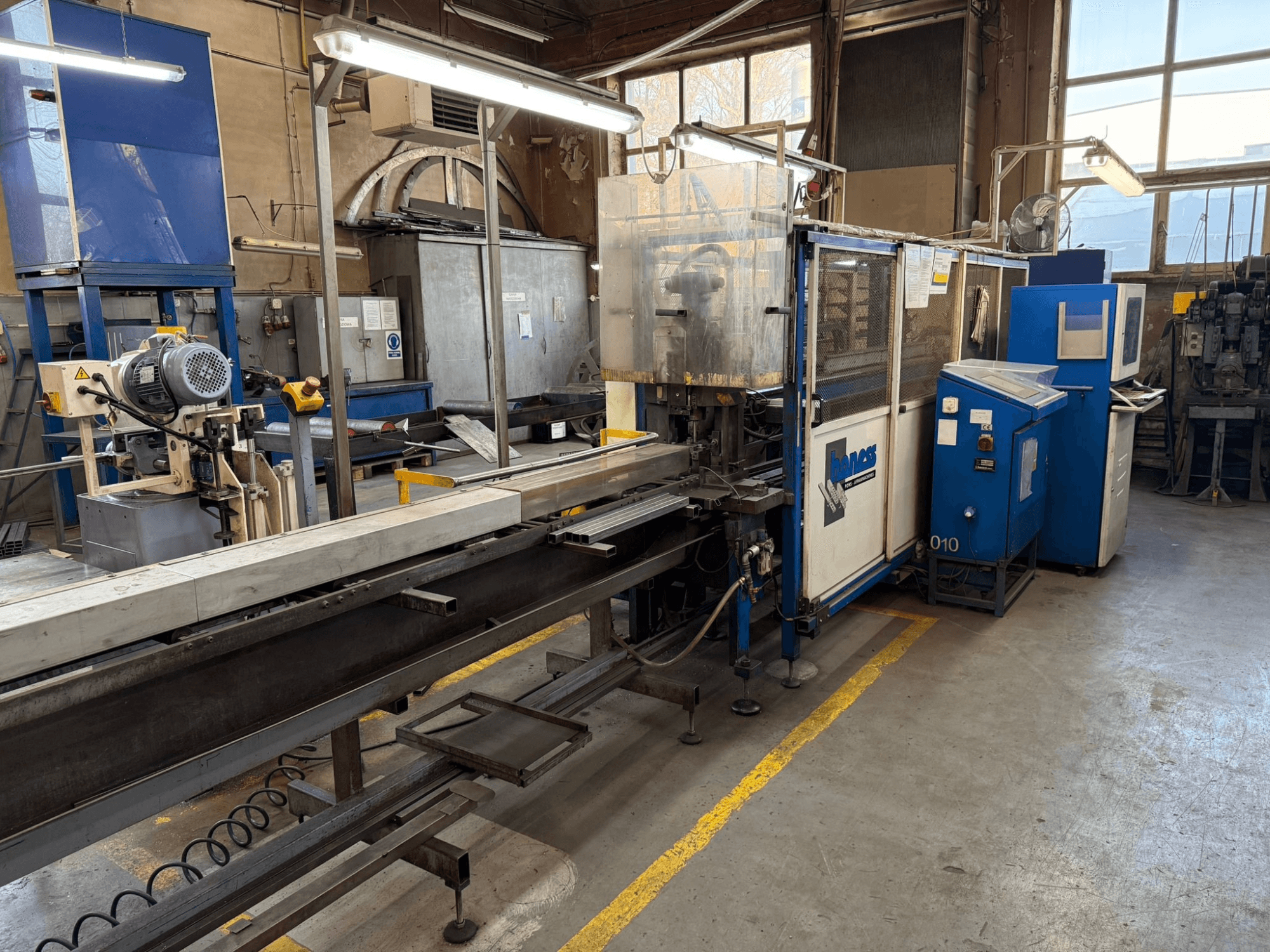

This HONESS V250-3000 was manufactured in 2002. A profile punching machine for tubes and profiles, it features a self-centering product clamp and interchangeable clamping jaws for various tube types. It can handle tubes up to 100 mm wide and 80 mm high, with a maximum punching diameter of 40 mm. Ideal for high-speed punching with a carriage travel speed of 40 m/min. Contact us for more information about this machine.
Overview
- brand: Other
- year: 2002
- MODEL: HONESS V250-3000
- application type: Punching
- Location: Poland
- machine type: CNC Punching Machine
Additional Information
Workpiece clamping:
Self-centering product clamp, gripping the tube from the outside
Interchangeable clamping jaws for different tube/profile types
Adjustable clamp position for accurate alignment
Workpiece dimensions:
Max product width (single-sided punching): 100 mm
Max product height (single-sided punching): 80 mm
Max product height for through holes: 60 mm
Max travel of product clamps: 3,100 mm
Minimum distance from tube end to first punchable hole: 30 mm
Punching capacity:
Max punching diameter (as delivered, through holes): Ø40 mm
Punching station: Single vertical punching cylinder
Max punching force: 250 kN at 220 bar working pressure
Max vertical stroke of punching cylinder: 80 mm
Performance:
Max strokes per minute: Dependent on cylinder stroke setting and hole pitch
Clamp carriage travel speed: approx. 40 m/min
Positioning repeatability: ±0.1 mm
Machine size and range:
Punching machine working range: > 3.10 m
Support table length: 3.00 m
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
