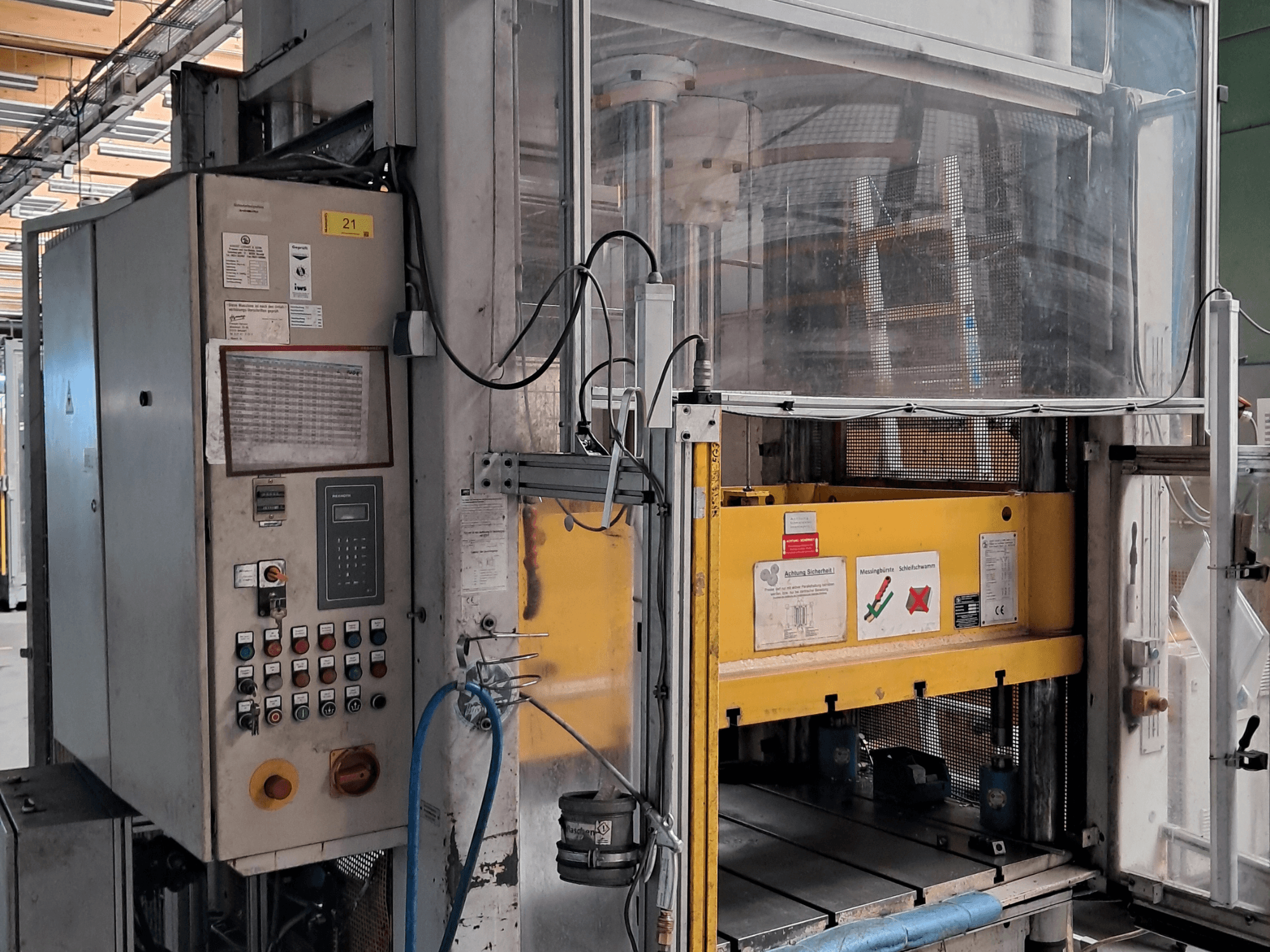

Hydraulic 4-Column Coining Press manufactured in 1998. This August Luigart & Sohn GmbH & Co. KG 4 SPY 60 SO features a press force of 600 kN and a stroke of 1000 mm. It has a tool clamping area of 1700 × 1200 mm and a total weight of 12,000 kg. If you are looking to get high-quality metal forming capabilities, consider the August Luigart & Sohn GmbH & Co. KG 4 SPY 60 SO machine we have for sale. Contact us for further details.
Overview
- brand: Other
- year: 1998
- MODEL: 4 SPY 60 SO
- application type: Forming
- Location: Germany
- machine type: Metal Press
Technical Information - Other 4 SPY 60 SO
Dimensions
- Machine Weight: 12000 kg
Technical Specification
- Max. Stroke: 1000 mm
- Pressing Force: 600 Kn
Additional Information
Manufacturer: August Luigart & Sohn GmbH & Co. KG (ALN)
Machine Type: Hydraulic 4-Column Coining Press
Hydraulic Pressure: 236 bar
Opening Height: 1450 mm
Main Motor Power: 24.75 kW (22 + 2.2 + 0.55 kW)
Voltage: 415 V
Frequency: 50 Hz
Tool Clamping Area: 1700 × 1200 mm
Max. Upper Tool Weight: 1,200 kg
Oil Capacity: approx. 650 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
