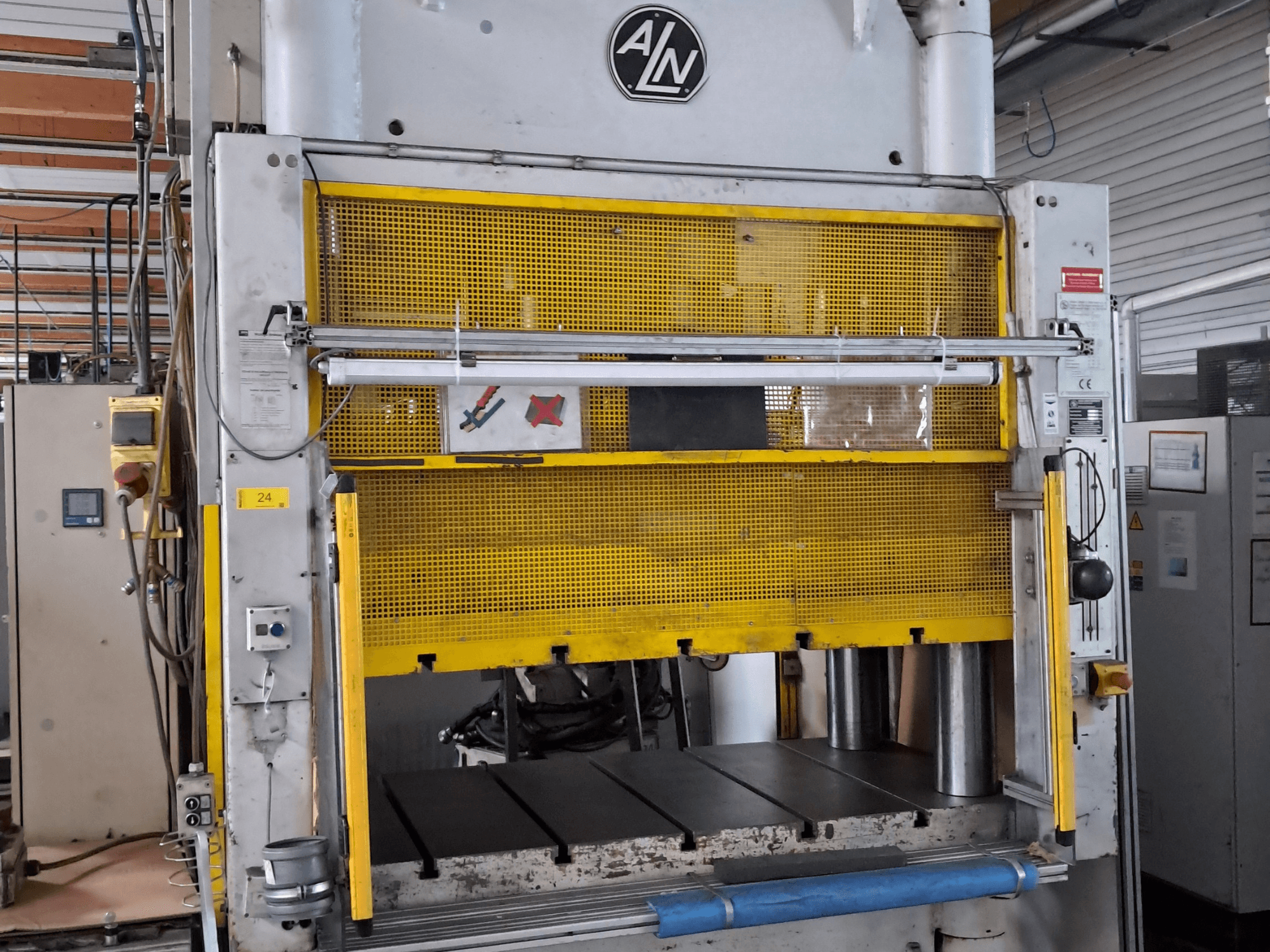

Hydraulic 4-Column Press manufactured in 1997. This August Luigart & Sohn GmbH & Co. KG (ALN) 4 SPY 200 SO features a press force of 2,000 kN and a stroke of 400 mm. It has a tool clamping area of 1,460 × 890 mm and a maximum upper tool weight of 2,500 kg. If you are looking to get high-quality metal pressing capabilities, consider the August Luigart & Sohn GmbH & Co. KG (ALN) 4 SPY 200 SO machine we have for sale. Contact us for further details.
Overview
- brand: Other
- year: 1997
- MODEL: 4 SPY 200 SO
- application type: Forming
- Location: Germany
- machine type: Metal Press
Technical Information - Other 4 SPY 200 SO
Dimensions
- Machine Weight: 12500 kg
Technical Specification
- Max. Stroke: 400 mm
- Pressing Force: 2000 Kn
Additional Information
Manufacturer: August Luigart & Sohn GmbH & Co. KG (ALN)
Machine Type: Hydraulic 4-Column Press
Hydraulic Pressure: 285 bar
Opening Height: 800 mm
Main Motor Power: 32.5 kW
Voltage: 415 V
Frequency: 50 Hz
Tool Clamping Area: 1,460 × 890 mm
Max. Upper Tool Weight: 2,500 kg
Oil Capacity: approx. 850 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
