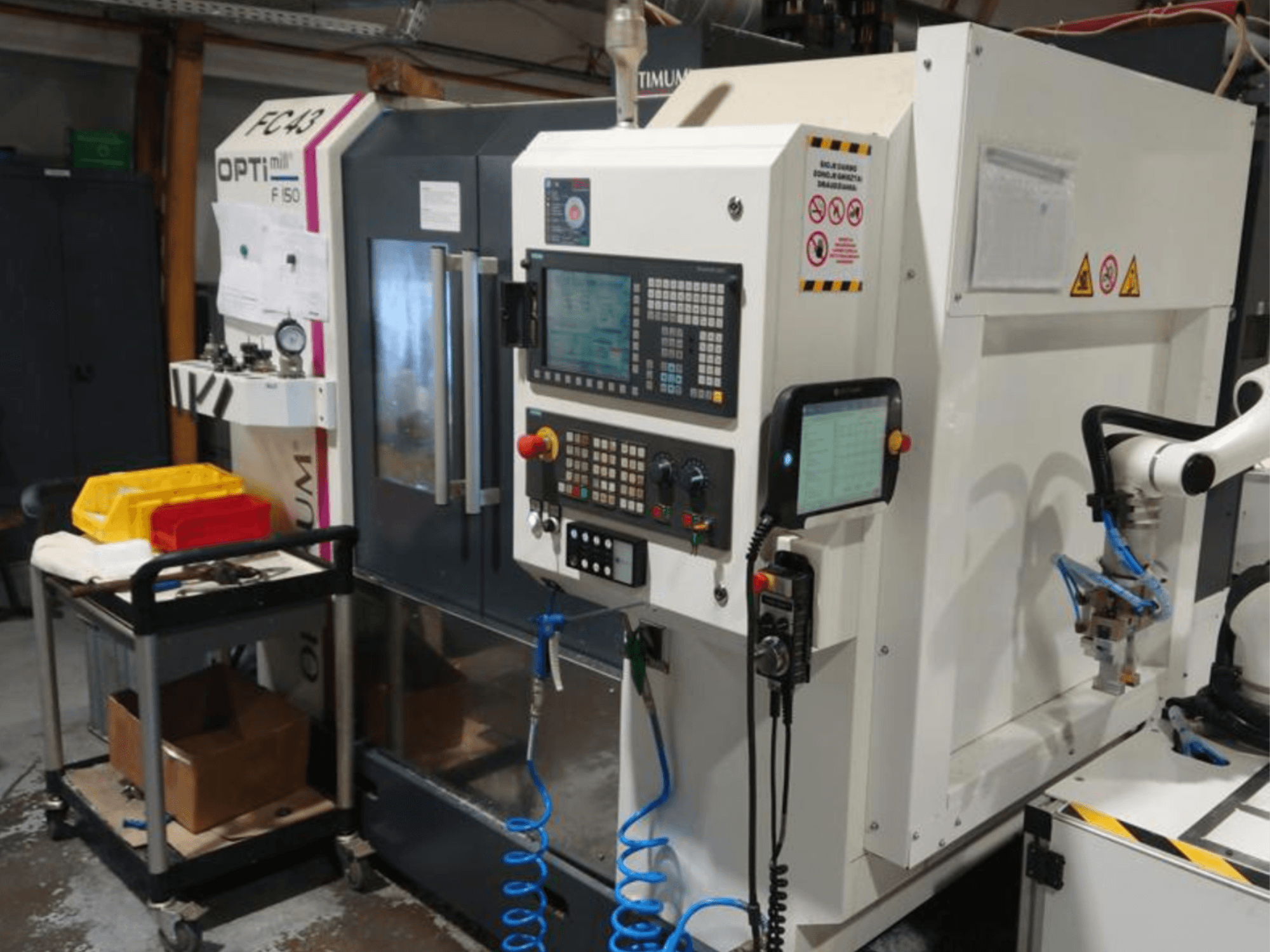

This 3-axis Optimum Optimill F150 was manufactured in 2017 and features a Siemens Sinumerik 828D control system, a vertical spindle type SK40 with a speed range of 10-10,000 rpm, and a carousel tool changer with a 16-tool capacity. It supports a maximum table load of 350 kg and includes a screw-type chip conveyor. If you are looking to get high-quality milling capabilities, consider the Optimum Optimill F150 machine we have for sale. Contact us for more information.
Overview
- brand: Optimum
- year: 2017
- MODEL: Optimill F150
- application type: Milling
- Location: Lithuania
- machine type: Vertical Machining Centre
Technical Information - Optimum Optimill F150
Dimensions
- Machine Depth: 1950 mm
- Machine Height: 2310 mm
- Machine Length: 3000 mm
- Machine Weight: 4350 kg
Movement
- Number of Axes: 3
- X-axis Travel: 760 mm
- Y-axis Travel: 440 mm
- Z-axis Travel: 460 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 9 kW
- Spindle Speed: 10000 RPM
Additional Information
Siemens Sinumerik 828D
System software: SW 26x
CNC memory: 5 MB
Look Ahead: 100
Control cabinet with heat exchanger
Connections: RJ45 + USB + 230 V
Fast motion speed (X/Y/Z): 24000 mm/min
Feed speed (X/Y/Z): 10000 mm/min
Repetition accuracy: ±0.005 mm
Positioning accuracy: ±0.005 mm
Table size: 900 mm x 410 mm
T-slots: 4, 16 mm slots, 102 mm spacing
Maximum table load: 350 kg
Clearance spindle to table: Min 102 mm, Max 562 mm
Vertical spindle type: SK40 DIN 69871
Speed range: 10 – 10000 rpm
Power (S1): 9 kW
Power (S6 30%): 21.2 kW
Torque (S1): 57 Nm
Torque (S6 30%): 135 Nm
Vertical spindle reach: 480 mm
Number of tools supported: 256
Tool Changer: Carousel type
Tool capacity: 16 tools
Max. tool diameter: 89 mm
Max. tool weight: 8 kg
Tool change time (T–T): 9 s
Coolant tank: 210 L
Coolant pumps: 3 × 1.27 kW
Chip conveyor: Screw type
Integrated chip flush system
Portable electronic handwheel
Telescopic guideway covers (XYZ)
Machine light
High-torque servo drives on all axes
Recirculating ball rail system
SIEMENS 2-year warranty
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
