Okuma - MB66-VADE-MIL-OKU-2010-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Okuma MB66-VA For Sale | gindumac.com

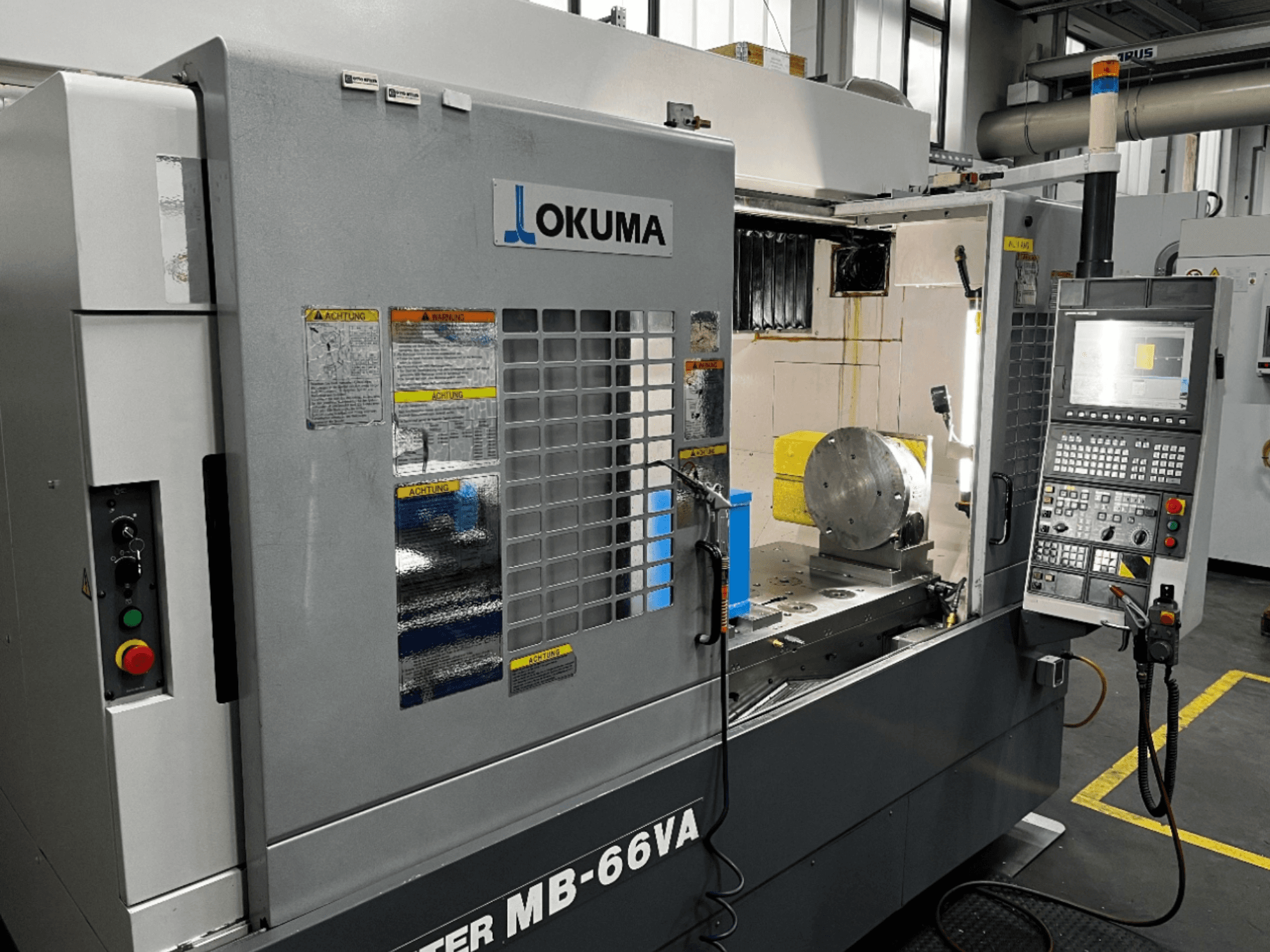

This 3-axis Okuma MB66-VA was manufactured in 2010. It features a travel of 1500 mm on the X-axis, 660 mm on the Y-axis, and 660 mm on the Z-axis. The machine has a table size of 1530 x 660 mm and a maximum table load of 1500 kg. If you are looking to get high-quality machining capabilities, consider the Okuma MB66-VA vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 2010
- MODEL: MB66-VA
- production hours: 32760
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- Available from: 01/09/2026
Technical Information - Okuma MB66-VA
Dimensions
- Machine Height: 3300 mm
- Machine Length: 3000 mm
- Machine Weight: 11000 kg
- Machine Width: 5800 mm
- Table Load: 1500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1500 mm
- Y-axis Travel: 660 mm
- Z-axis Travel: 660 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Tool Stations: 20
- Spindle Power: 22 kW
- Spindle Speed: 15000 RPM
- Taper Size: SK 40
Additional Information
Maintenance contract: yes
Condition: About 1.5 years ago, electrical maintenance was carried out; electrical components were partially replaced or cleaned (Guides, linear axes, geometry)
Utilization: 70%
Shifts: 2
Operating hours: 32,760 h
Control system: OSP-P200M
Table size: 1530 x 660 mm
4th axis: possible (separately controlled)
Spindle speeds: 8000 / 12000 / 15000 rpm
Magazine capacity: 20 standard (optional 32 or 48)
Number of revolvers/magazines: 1
Max tool length: 300 mm
Max tool diameter: 125 mm
Rated voltage: 400 V
Number of phases: 3
Frequency: 50 Hz
Max. power consumption: 42.6 kVA
Total current consumption: 61.5 A
Max. motor current: 112 A
Short-circuit withstand capacity: 15 kA
Voltage: 200 VAC, 50 Hz, 3~
Control voltage: 24 VDC
Power: 9 kW
Weight: 50 kg
Additional equipment
Optional: Zero-point clamping plate for table 1530 x 660 mm for an additional charge
Optional: Approx. 530 tools available for an additional charge
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
