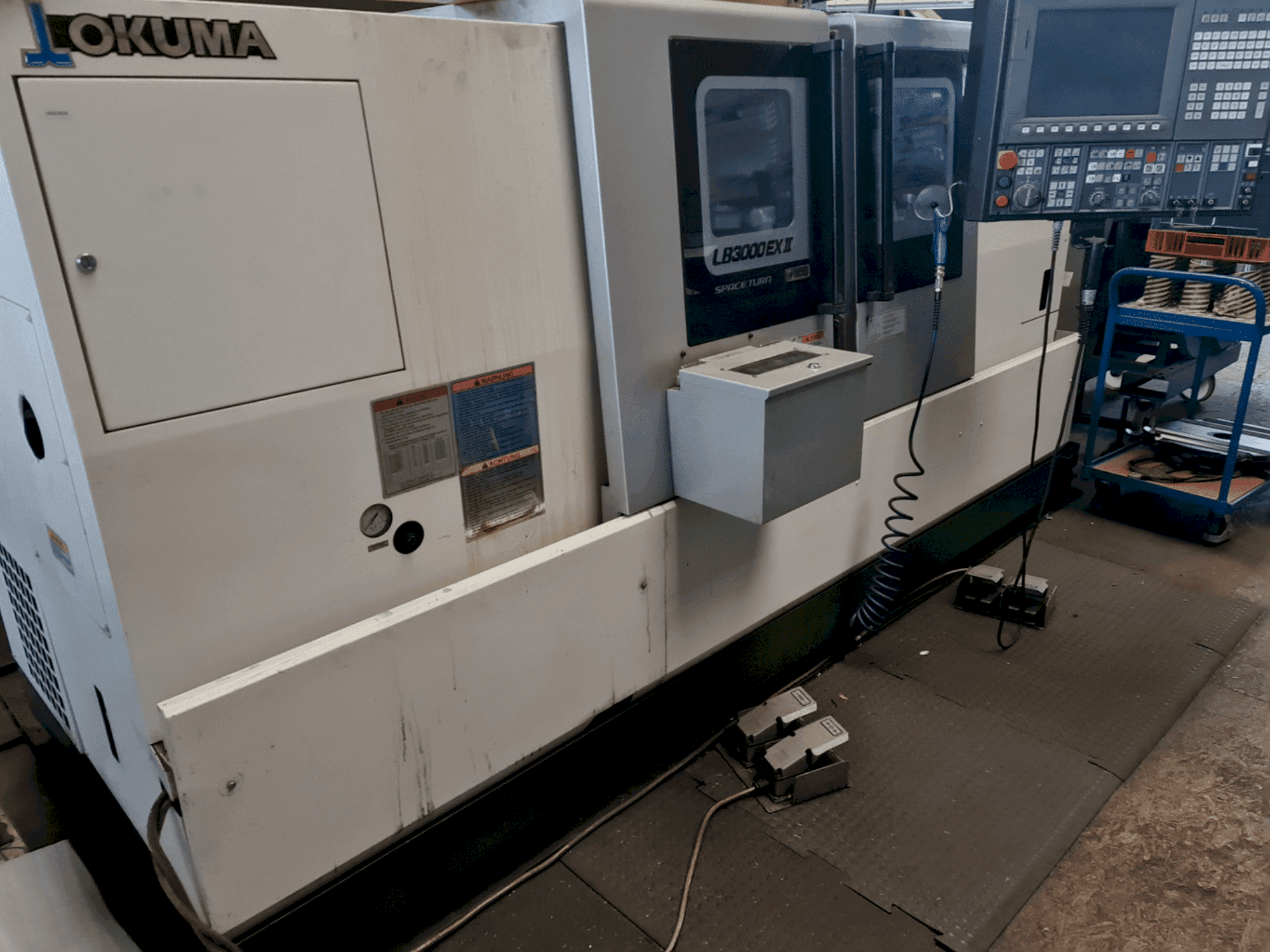

Front view of Okuma LB3000 EX II  machine

Okuma LB3000 EX II

Okuma - LB3000 EX II

2014

Rs. 7,441,450

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-Axis OKUMA LB3000 EX II lathe was manufactured in 2014, equipped with an OSP-P300L control unit for precision and efficiency. It features a main spindle with a speed range up to 5000 1/min and a 12-station tool turret. The machine offers a c-axis resolution of 0.001° and a rapid traverse on the NC tailstock of 12 m/min. Additional features include a 3-jaw power chuck and a hinged belt chip conveyor. Reach out for further details regarding this lathe.

Overview

  • brand: Okuma
  • year: 2014
  • MODEL: LB3000 EX II
  • production hours: 12781
  • application type: Turning
  • Location: Germany
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: Okuma
  • GINDUMAC ID: DE-TUR-OKU-2014-00004

Technical Information

General Data

  • Measurements depth: 1000 mm

Control Unit

  • Brand: Okuma
  • Model: OSP-P300L

Main drive

  • Spindle speed range: 45-5000 rpm 1/MIN
  • Spindle bore: 80 mm
  • Number of axis: 3

Workpiece

  • Workpiece drm over bed: 250 mm
  • Workpiece weight: 5.8 kg

Turret

  • Number of turrets: 1

Tools

  • Number of stations: 12

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional equipment

    • - hollow clamping cylinder diameter 70mm; 47 kN
    • - 3-jaw power chuck: bore diameter 75mm, outside diameter 275mm, max. speed 4200 1/min, confirmation force 43 kN, incl. base jaws and t-nuts
    • - Hinged belt chip conveyor: discharge height approx. 1200mm, chip discharge to the right, without chip cart, bed length 1000mm
    • - submersible pump with motor
    • - reinforced coolant pump
    • - Interface bar feeder magazine
    • - workpiece catcher for parts up to a diameter of 80 x 150 mm

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Ø 250 x 1000mm
        • - Front bearing diameter 120mm
        • - 40. 4 nm
        • - C-axis with 0. 001° resolution
        • - Nc tailstock rapid traverse 12 m/min; 5 kn
        • - Square cross holder; chisel cross-section 25 x 25 mm left long
        • - Square cross holder; chisel cross section 25 x 25 mm left short
        • - Automatic bar gripper

      Extra information

      • - Main spindle details, c-axis resolution, spindle time, NC running time. Machine still under power.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
