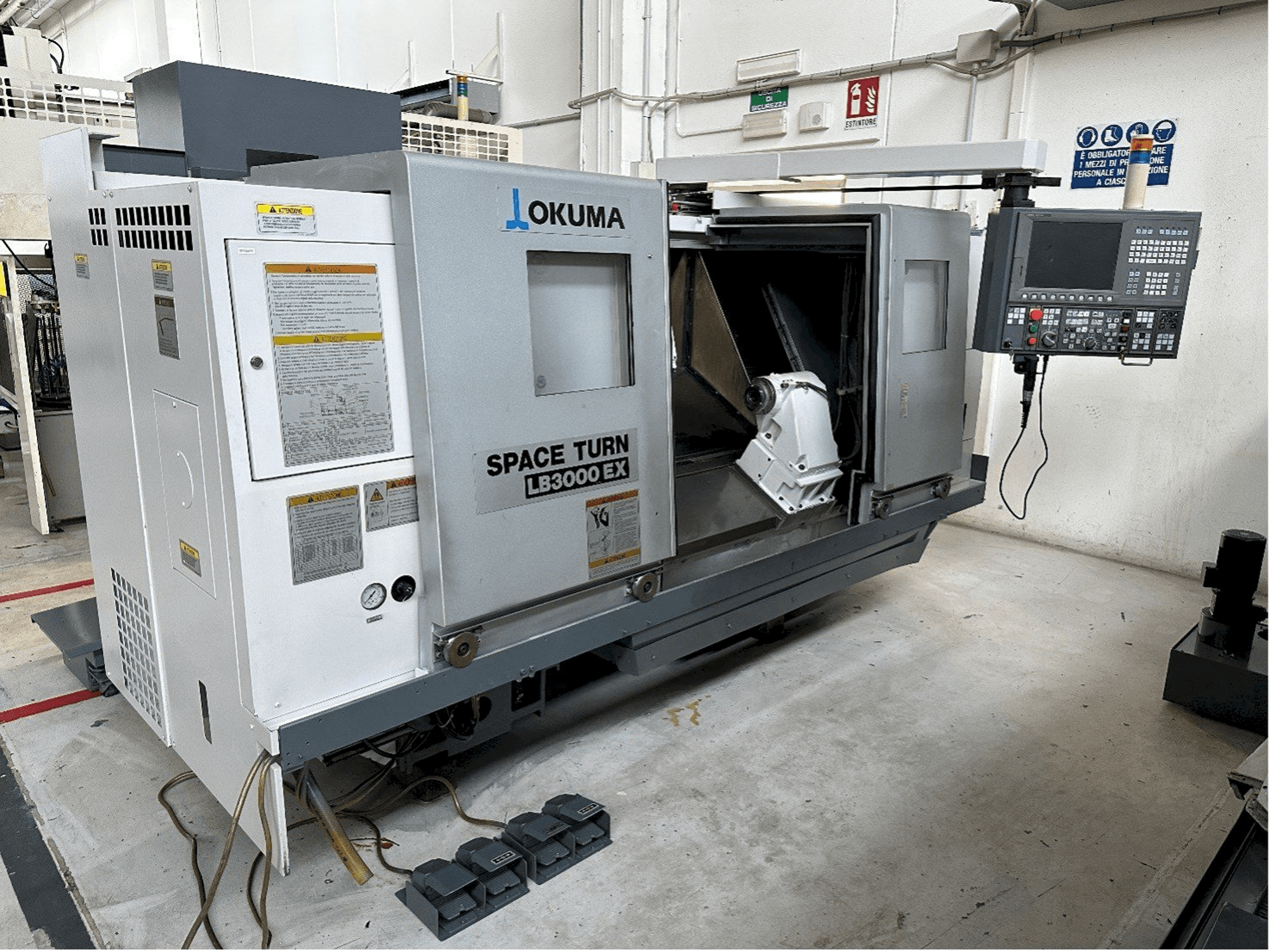

Front view of Okuma LB 3000 EX  machine

Okuma LB 3000 EX

Okuma - LB 3000 EX

2008

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This OKUMA LB 3000 EX Lathe was manufactured in the year 2008 and has 37498 production hours, of which 9646 are spindle hours. It is equipped with an Okuma OSP-P200L control unit. The machine has a spindle speed of 4200 rpm.

Overview

  • brand: Okuma
  • year: 2008
  • MODEL: LB 3000 EX
  • production hours: 37498
  • application type: Turning
  • Location: Italy
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Okuma
  • GINDUMAC ID: IT-TUR-OKU-2008-00002

Technical Information

General Data

  • Measurements width: 3310 mm
  • Measurements depth: 1900 mm
  • Measurements height: 1970 mm
  • Machine weight: 6100 kg

Control Unit

  • Brand: Okuma
  • Model: OSP-P200L

Main drive

  • Spindle speed range: 4200 1/MIN
  • Spindle motor power: 30 KW

Movement

  • X-AXIS Movement: 260 MM
  • Z-AXIS Movement: 1065 MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance between centers 1020 mm.
      • - Dia. Max rotating on the guards 580 mm.
      • - Dia. Rotary between the centers 470 mm.
      • - Dia. Max turning with std. Tools motorized 340 mm
      • - Spindle attachment asa-a2
      • - Dia. Front bearing 140 mm.
      • - Dia. Spindle hole 91 mm.
      • - Dia. Useful bar passage (with p/clipper) 80 mm.
      • - Continuously variable rpm ranges 2
      • - Maximum torque available nm 700
    • Qualitative Machine Benefits:
      • - Rapid feed for x-z axes m/min. 25-30
      • - Motor power x-z axis drive kw bl 2,8/bl 3,5
      • - X axis push kgf 780, z axis push kgf 560, automatic doors, ready for robot, i blow air
      • - X-z axis activation screws dia. /pitch mm. 30-40/16, x-z axis positioning precision mm. 0,01/100 – 0,015/300
      • - Positioning repeatability x-z axis +/- mm. 0,001-0,002, stations p/tools n. 12
      • - Okuma original tool attachment, index time (1 position) sec. 0,14, index time (6 position) sec. 0,40
      • - Power stations / tools n. 12, maximum torque available nm 40. 4, maximum power available kw 7,1/4,1
      • - Rpm range g/min. 45-6000, tailstock slide stroke 1015 mm
      • - Attachment cone cm n. 5 (4), maximum admitted push kn 5 (7. 5)
      • - Self-centering dia. 250 autoblok, static tools kit, n. 2 p/axial motorized tools, n. 2 p/radial motorized tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
