Okuma LB 15-II M

Photo Gallery

Okuma - LB 15-II MIT-TUR-OKU-1998-00004

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma LB 15-II M For Sale | gindumac.com

Show in original language

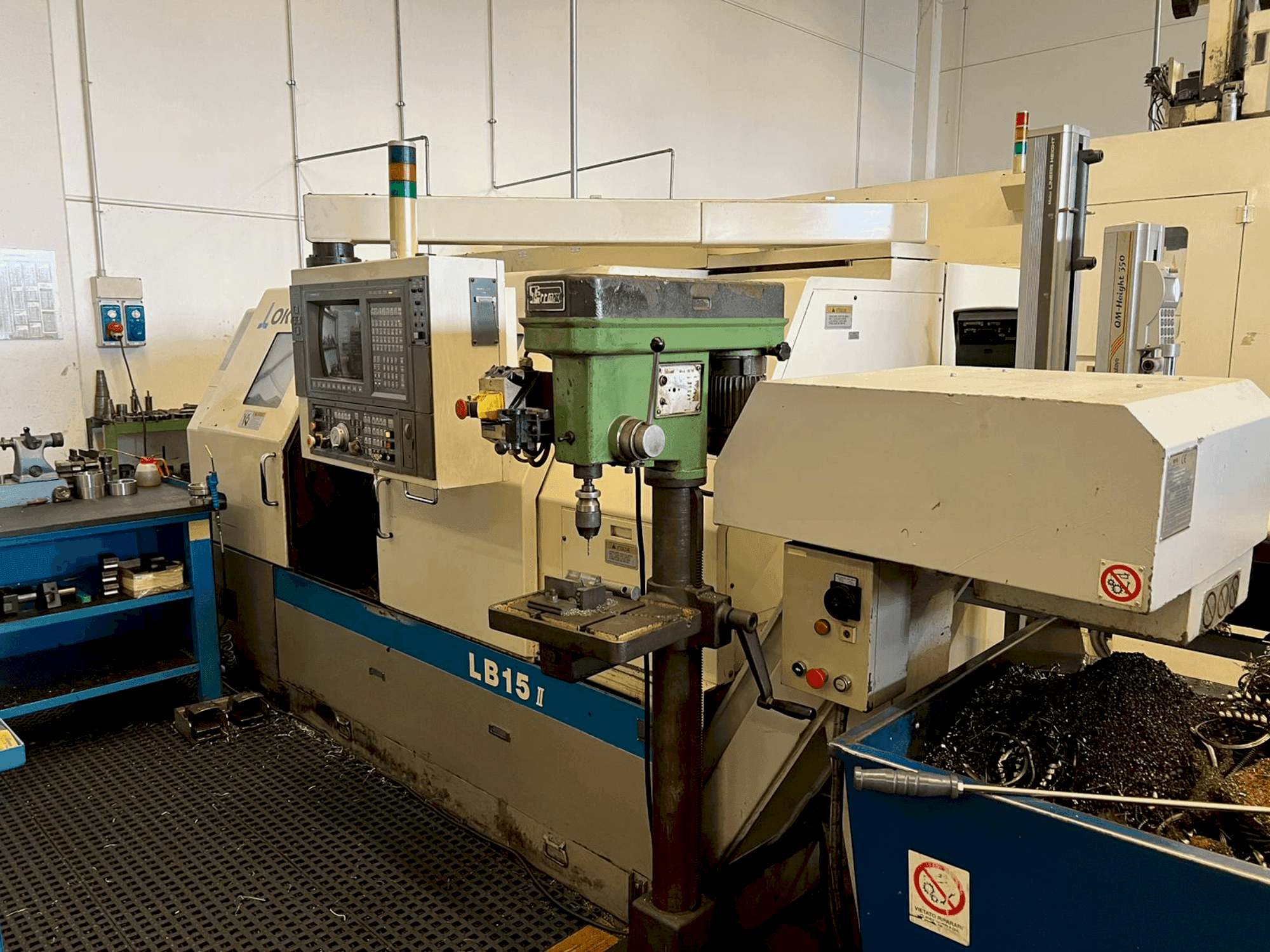

This 3-axis Okuma LB 15-II M horizontal turning machine was manufactured in 1995. It features an OSP 7000 L control, a 12-station tool holder, hydraulic tailstock, and a chip removal system. The machine supports a maximum turning diameter of Ø 340 mm and a distance between centers of 1020 mm. It's equipped with a spindle speed up to 3500 rpm and a rapid feed rate on the Z axis of 20,000 mm/min. For more information about this horizontal turning machine, please reach out to us.

Overview

brand: Okuma
year: 1995
MODEL: LB 15-II M
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: OKUMA

Technical Information - Okuma LB 15-II M

Control Unit

Control Brand: OKUMA
Control Model: OSP 7000 L

Movement

Number of Axes: 3
X-axis Travel: 260 mm
Z-axis Travel: 1020 mm

Technical Specification

Max. Workpiece Diameter: 530 mm
Spindle Power: 15 kW
Spindle Speed: 3500 RPM

Additional Information

Additional equipment

Self-centering: 250 mm SMW AUTOBLOK
Tool Presetting
12-station Tool Holder
Hydraulic Tailstock
Chip Removal System
Lighting System
ll necessary documentation: Operating and Maintenance Manual, Programming Manual, Electrical Schematics Manual

Machine Benefits

Qualitative Machine Benefits

Machine has always been maintained by the manufacturer and is in excellent working condition

Technical Machine Benefits

C-axis rapid feed rate: 200 min⁻¹
Simultaneous tri-axial control (x, z, and c axes)
Linear interpolation and circular interpolation
Speed control: direct sb control with 4 digits
Manual intervention mechanism: adjustable from 50 to 200%
Various drilling and cutting cycles with repeat function
Tailstock spindle diameter: 90 mm
Conical hole of tailstock spindle: cm5
Tailstock spindle travel: 120 mm
Power supply voltage: 400 v - 50 hz

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
