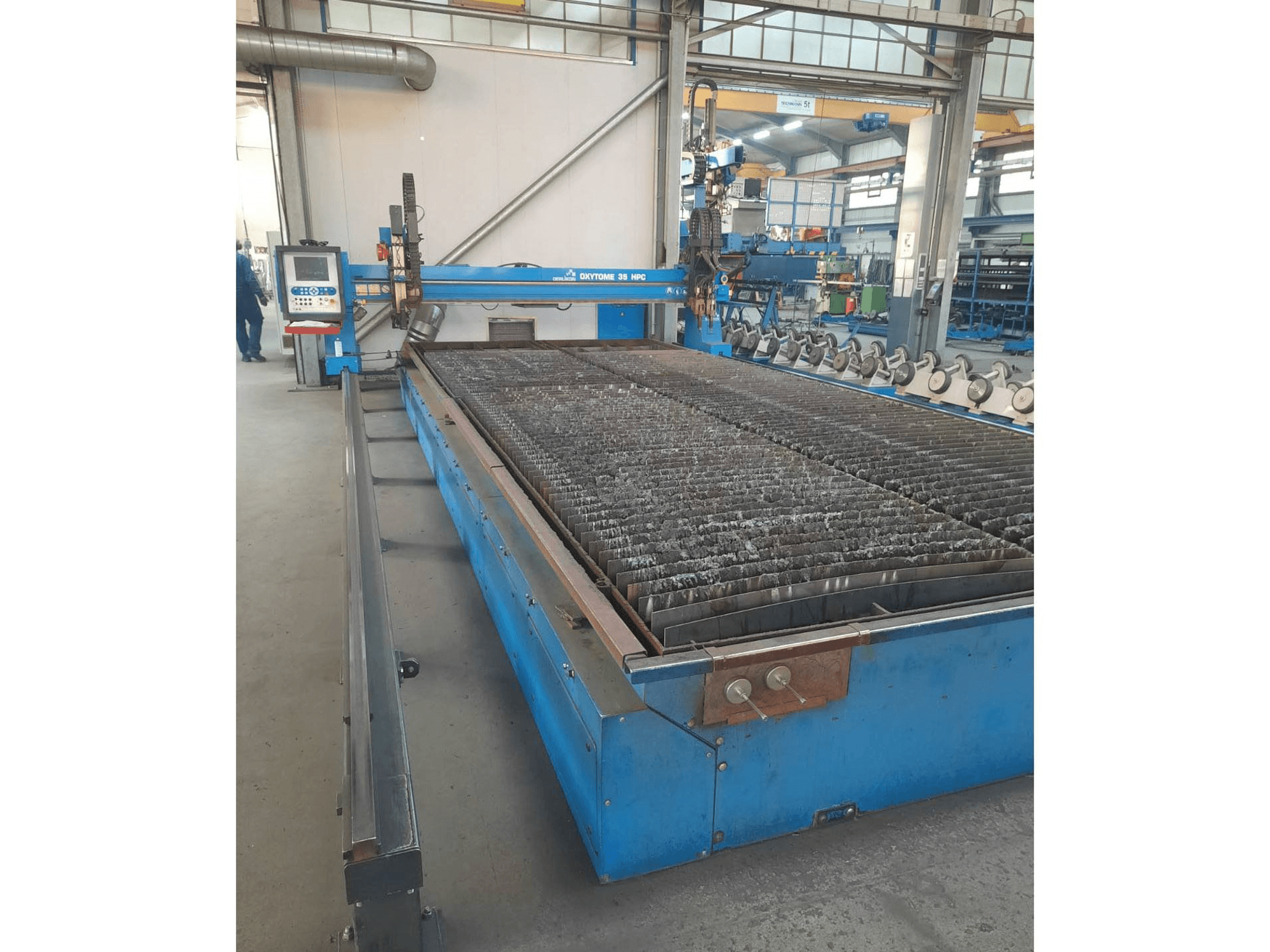

Oerlikon Oxytome 35 HPC

Machine Benefits

• Technical Machine Benefits:
  • - Sheets 3. 000 x 4. 000 mm
  • - This precisely tuned machine concept for high-precision applications offers cutting widths from 2,000 mm to 4,000 mm.
  • - The following cutting thicknesses are covered: 6 torches for max. 80 mm, 2 torches for max. 200 mm, 4 torches for max. 120 mm, 1 torch for max. 300 mm
  • - The basic equipment includes: 1 piece cutting portal with fixed control panel and membrane keyboard, positioning speed 15. 000 mm/min, working speed up to 10. 000 mm/min, basic track (4,500 mm long) with 3,000 mm cutting length, energy supply system for basic track 1 piece torch support po150 e (to hold 1 oxyfuel torch)
• Qualitative Machine Benefits:
  • - The new system offers you the following advantages: simplest handling all cutting parameters, gas pressures, etc. For oxyfuel and plasma technology are automatically set and controlled by the cnc control system.
  • - Highest safety the cnc control takes over and manages the complete oxyfuel process cycle (preheating, piercing and cutting).

Extra information

• - Table with ventilation system not included
