NIKKEN CNC 260

Photo Gallery

NIKKEN - CNC 260IT-OTH-NIK-2018-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used NIKKEN CNC 260 Machine Tool For Sale | gindumac.com

Show in original language

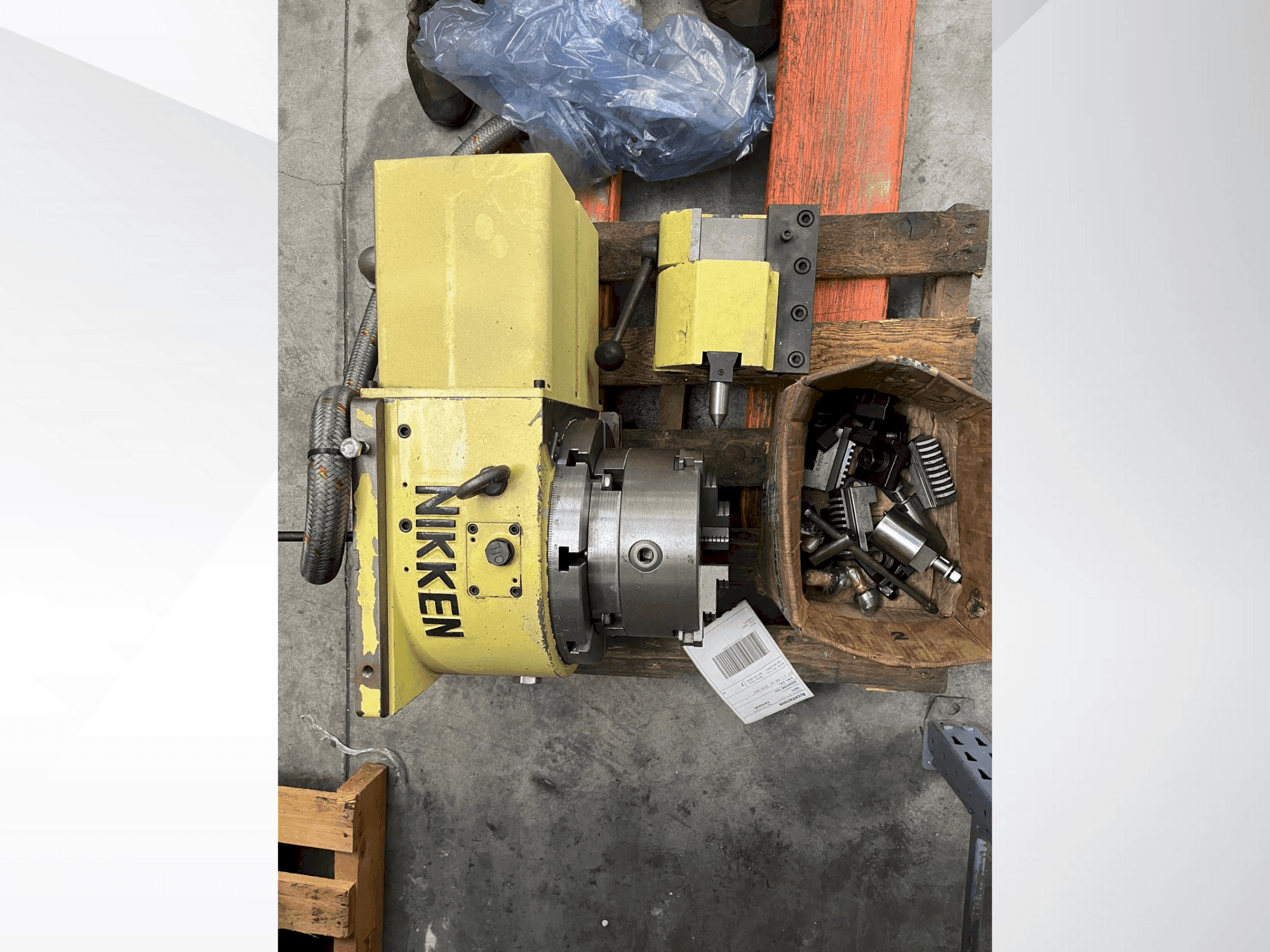

This NIKKEN CNC 260 was manufactured in 2018. It features a Ø170 mm table diameter, 170 mm center height, and a pneumatic clamp system with a force of 1560 Nm. The machine supports a maximum horizontal work load of 120 kg and vertical load of 60 kg. Weighing 60 kg, it's equipped with a FANUC αiF4 servo motor and dual-supported worm shaft. Consider the opportunity to buy this NIKKEN CNC 260. Contact us for more information.

Overview

brand: NIKKEN
year: 2018
MODEL: CNC 260
application type: Other Machine Tools
Location: Italy
machine type: Machine Tool
availability: Sold
control unit brand: FANUC

Technical Information - NIKKEN CNC 260

General Data

Measurements width: 330 MM
Measurements depth: 250 MM
Measurements height: 365 MM
Machine weight: 60 KG

Control Unit

Brand: FANUC

Main drive

Number of axis: 2

Table

TSlots size: 12H7

Clamping unit

Clamping force: 1560 Nm KN

Additional equipment

- Motor Mount Plate to Table Face Distance: 200 mm
- Back Housing to Table Face (excluding motor): ~150 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table diameter: Ø170 mm
- - Center height: 170 mm
- - Table bore: Ø35h7
- - Clamp system: pneumatic
- - Backlash (worm gear): 4 sec
- - Indexing accuracy: 20 sec
- - Repeatability: ±3 sec
- - Gear ratio: 1/90
- - Max work load (horizontal): 120 kg
- - Max work load (vertical): 60 kg
Qualitative Machine Benefits:
- - Air pressure for clamp: 0. 5 mpa
- - Bearing type: cross-roller
- - Worm shaft support: dual support
- - Lubrication: grease
- - Table face bolt circle: Ø130 p. C. D with 8x m8-6h tapped holes
- - Center bore: Ø35h7 with depth ~40 mm
- - T-slot width: 12 mm
- - Additional hole positions: m6 holes on 60° spacing
- - Mounting holes: 4x m12 tapped holes at each corner
- - Hole spacing: 200 mm x 170 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
