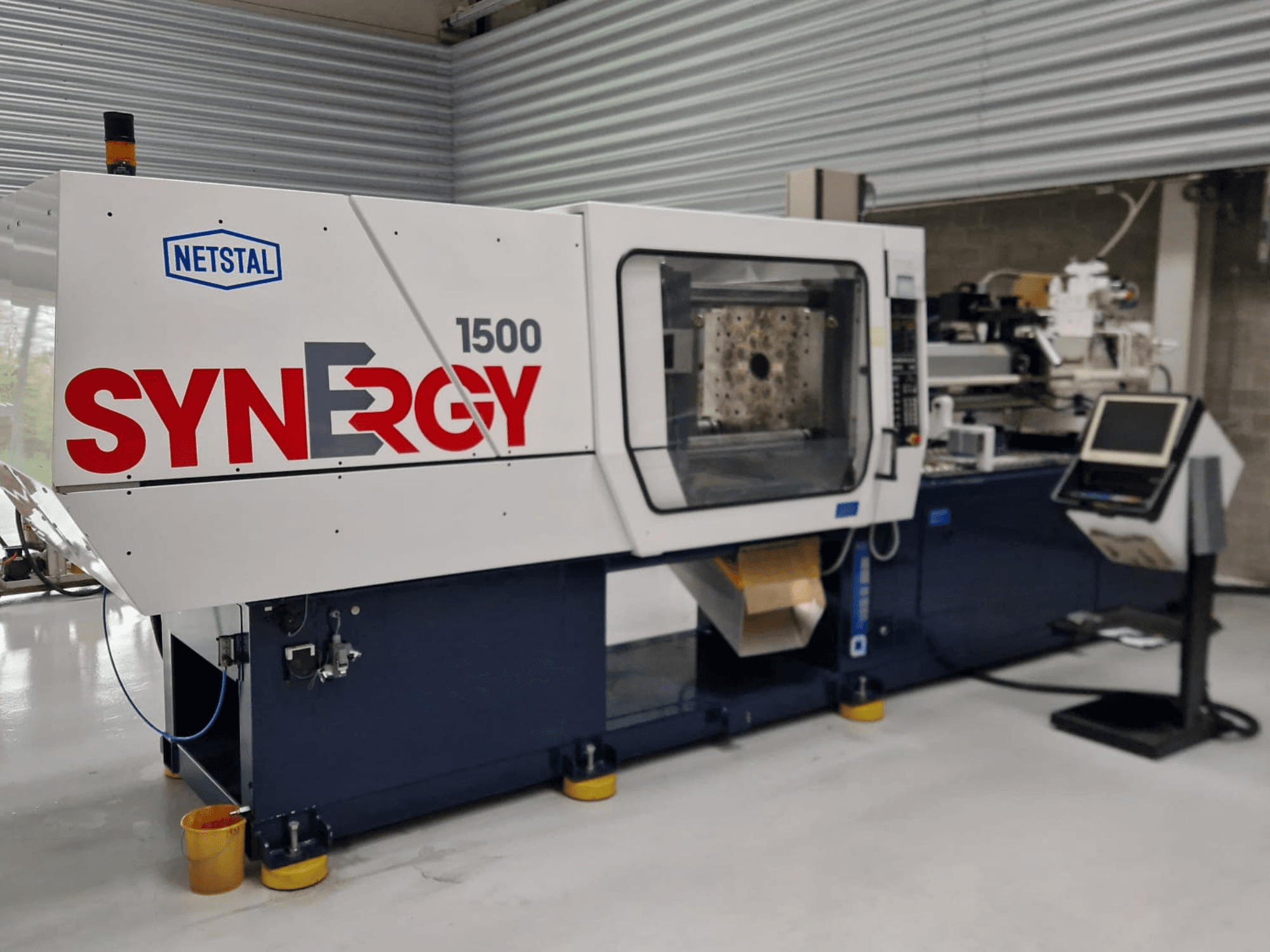

Hydraulic injection moulding machine manufactured in 2000. This Netstal Synergy 1500-460 features a clamping force of 1500 kN and an injection force of 279 kN. It offers an opening stroke of 0–450 mm and a mould height range of 400–700 mm. If you are looking to get high-quality moulding capabilities, consider the Netstal Synergy 1500-460 machine we have for sale. Contact us for further details.
Overview
- brand: Netstal
- year: 2000
- MODEL: Synergy 1500-460
- production hours: 82489
- application type: Injection Moulding
- Location: Switzerland
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Netstal Synergy 1500-460
Technical Specification
- Clamping Force: 1500 kN
Additional Information
Hydraulics and clamping
Operating pressure: 210 bar
Injection force: 279 kN
Opening stroke: 0–450 mm
Mould height: 400–700 mm
Electrical supply
Supply 1 (3L+PE)
Nominal voltage: 400 V / 50 Hz
Nominal current: 63 A
Motor protection: 55 A
Motor power: 30 kW
Cable cross-section: 16 mm²
Nameplate values: Nominal current 55 A; Nominal power 30 kW
Supply 2 (heating/control) (3L+N+PE)
Nominal voltage: 400 V / 50 Hz
Nominal current: 100 A
Total connected load (heating/control): 67.6 kW
Cable cross-section: 35 mm²
Nameplate values: Nominal current 97.7 A; Nominal power 67.6 kW
Control voltages
AC: 230 V
DC: 5 V / ±15 V / 24 V
Auxiliaries and drives
Oil filter motor: 400 V / 0.6 A
Central lubrication (slow): 400 V / 0.9 A
Central lubrication (fast): 400 V / 3.0 A
Central lubrication (F110): 230 V / 1.0 A / 0.10 kW
Heating/plasticizing and outlets
Plasticizing 1: 230 V / 20.9 kW
Plasticizing 2: 230 V
Mould heating: 230 V
Socket outlets: 230 V / 57.7 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
