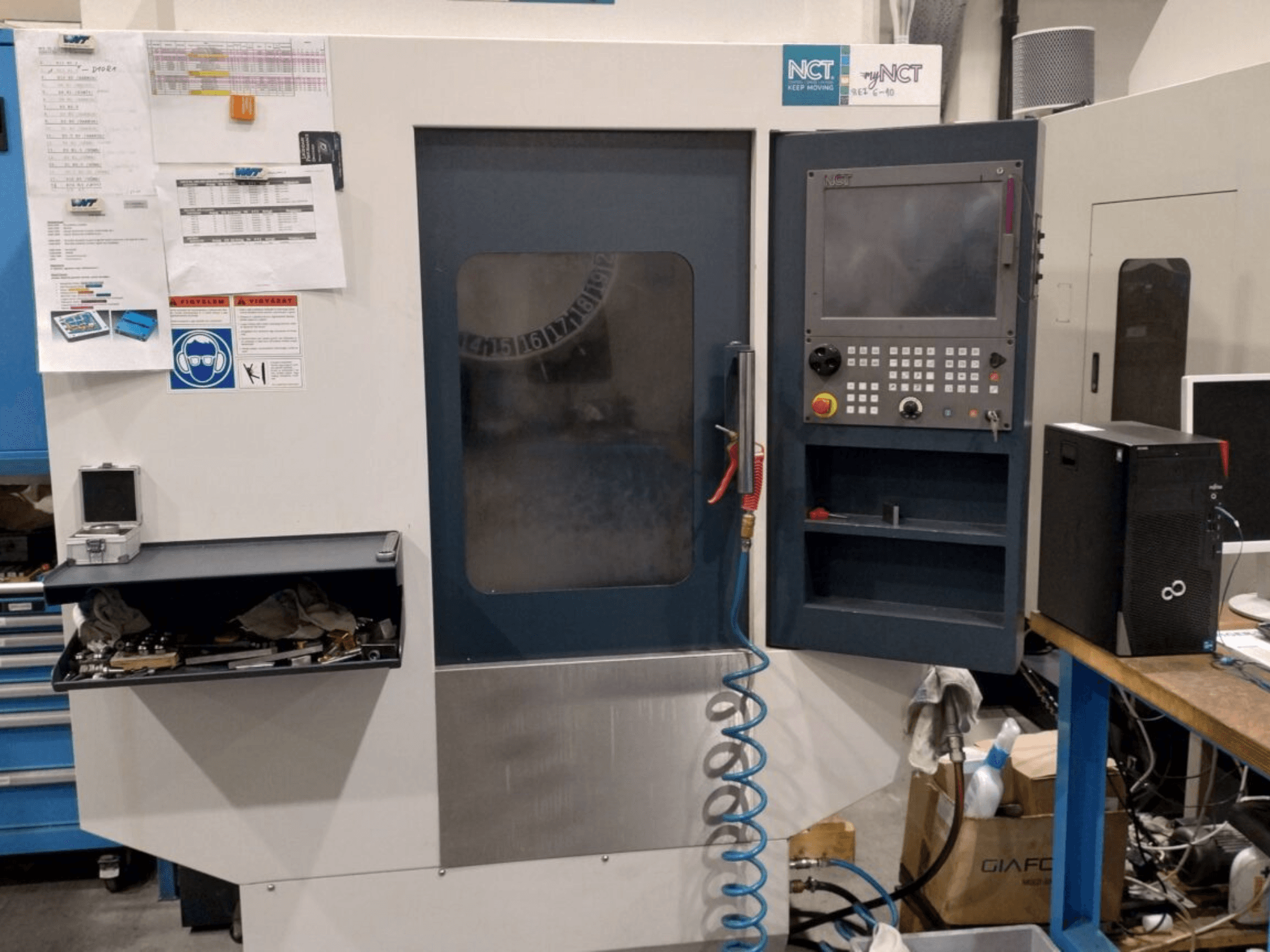

NCT CNC machine, front view, features control panel with numeric keypad, tools in storage drawer, and manual on the wall.
NCT CNC machine, front view, features control panel with numeric keypad, tools in storage drawer, and manual on the wall.

Thank you for your visit

This machine was recently sold.

Browse similar machines

NCT - -VD-510S HU-MIL-NCT-2017-00004

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis NCT VD-510S was manufactured in 2017. It features a high-speed spindle up to 18,000 rpm and a BT30 tool holder. The machine includes a 21-station tool changer and comes with 32 tool holders, enhancing its versatility for precision CNC milling of small to medium-sized parts. If you are looking to get high quality milling capabilities consider the NCT VD-510S machine we have for sale. Contact us for more information about this machine.

Overview

  • brand: NCT
  • year: 2017
  • MODEL: -VD-510S
  • application type: Milling
  • Location: Hungary
  • machine type: Vertical Machining Centre

Technical Information - NCT -VD-510S

Dimensions

  • Machine Weight: 2900 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 510 mm
  • Y-axis Travel: 406 mm
  • Z-axis Travel: 330 mm

Technical Specification

  • Spindle Speed: 18000 RPM
  • Taper Size: BT 30

Additional Information

  • Tool changer: 21 stations

  • Notes: Compact, high-speed, high-precision VMC suitable for small to medium parts

Additional equipment

  • Tooling included (32 pcs total)

    • Standard tool holders (14 pcs)

      • 1 × Weldon holder D12

      • 2 × ER16 collet holders with hex nut (25 mm wrench)

      • 2 × ER20 collet holders with hex nut (30 mm wrench)

      • 2 × BT30 ER16 collet holders (hook wrench)

      • 2 × BT30 ER20 collet holders (hook wrench)

      • 2 × BT30 ER25 collet holders (hook wrench)

      • 3 × High-precision drill chucks, hex key operated (4 mm Allen key), WTE

    • Shrink-fit tool holders – powRgrip system (REGO-FIX / FRANKEN) (18 pcs)

      • 1 × BT30 / PG 15 × 120 H

      • 1 × BT30 / PG 10 × 120 H

      • 8 × BT30 / PG 15 × 70 H

      • 8 × BT30 / PG 10 × 80 H

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
