NAKAMURA-TOME - AS-200LPL-TUR-NAK-2018-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used NAKAMURA-TOME AS-200L For Sale | gindumac.com

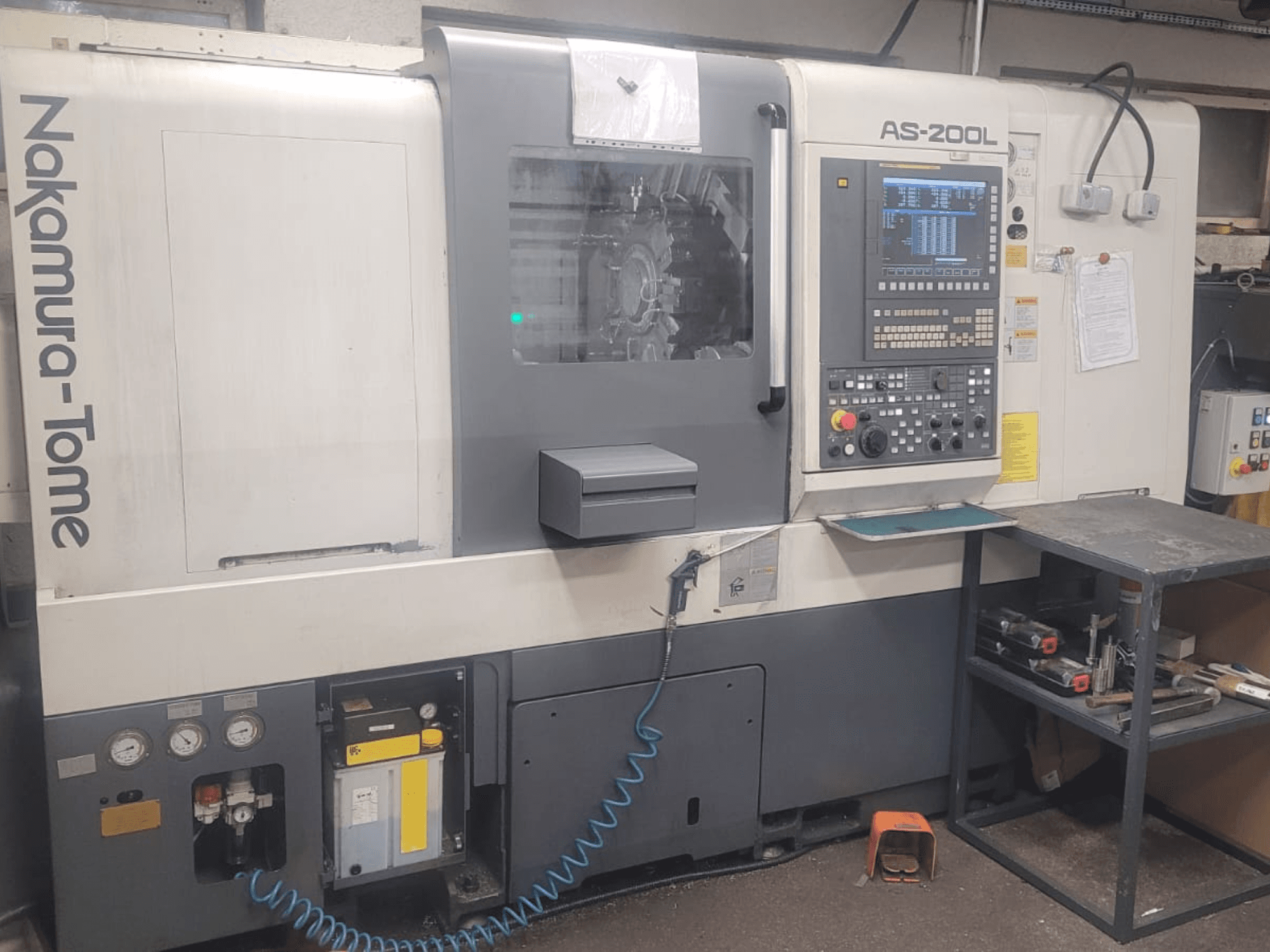

This 4-axis NAKAMURA-TOME AS-200L was manufactured in 2018. It features a maximum turning diameter of 340 mm and a turning length of 570 mm. The machine includes a 12-station drum turret and a main spindle speed of up to 4500 rpm. If you are looking to get high-quality turning capabilities, consider the NAKAMURA-TOME AS-200L horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: NAKAMURA-TOME
- year: 2018
- MODEL: AS-200L
- production hours: 18417
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - NAKAMURA-TOME AS-200L
Control Unit
- Control Brand: FANUC
- Control Model: 0i series
Dimensions
- Machine Height: 1852 mm
- Machine Weight: 6000 kg
- Machine Width: 2716 mm
Movement
- Number of Axes: 4
- X-axis Travel: 202.5 mm
- Y-axis Travel: 82 mm
- Z-axis Travel: 585 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 15 kW
- Spindle Speed: 4500 RPM
Additional Information
Capacities:
Max turning diameter: 340 mm
Max turning length: 570 mm
Distance between centers (with tailstock): 760 mm
Distance between spindles with sub-spindle (option): 800 mm
Swing over bed: 400 mm
Spindle:
Main spindle bar capacity: 65 mm (optional 71 mm)
Standard chuck size: 8"
High-torque option: 258 / 218 Nm
Axes:
C-axis speed: 600 rpm
Turret: 12-station drum turret
Power supply: 3-phase 380 / 400 / 415 V, 50 / 60 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
