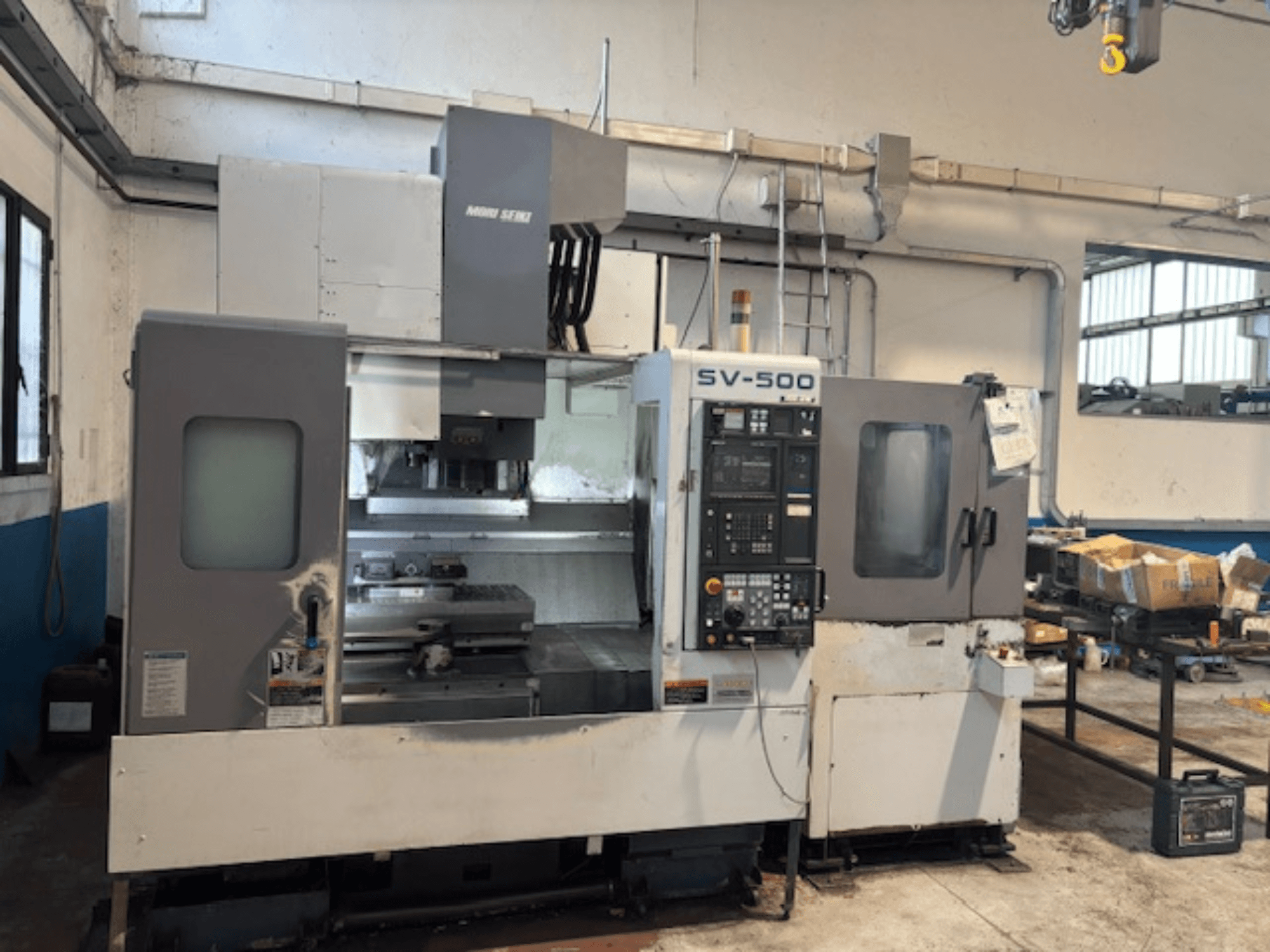

This 3-axis MORI SEIKI SV-500/40 was manufactured in 1998. It features a spindle speed of 10,000 rpm and a tool magazine capacity of 30 tools. The machine has an impressive X-axis travel of 800 mm, Y-axis travel of 510 mm, and Z-axis travel of 510 mm. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI SV-500/40 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: MORI SEIKI
- year: 1998
- MODEL: SV-500/40
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - MORI SEIKI SV-500/40
Dimensions
- Machine Height: 2850 mm
- Machine Weight: 6000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 20 kg
- Spindle Power: 22 kW
- Spindle Speed: 10000 RPM
Additional Information
Spindle-to-table distance: 150–660 mm
Feed rates:
Rapid traverse (X/Y/Z): 32 m/min
Cutting feed: 16 m/min
Spindle:
Max torque: 235.6 / 191 Nm
Tool changer:
Capacity: 30 tools
Tool interface: BT 40 (ISO 40)
Max tool diameter: 120 mm (adjacent) / 240 mm (without adjacent)
Max tool length: 350 mm
Tool change time: 2 s
Dimensions & weight:
Installation area: 2,610 × 3,500 mm
Additional equipment
2-position automatic lateral pallet changer
Working surface: 2 × 1,100 × 600 mm
Max pallet load: 1,000 kg
Through-spindle coolant system with paper filter tank
Chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
