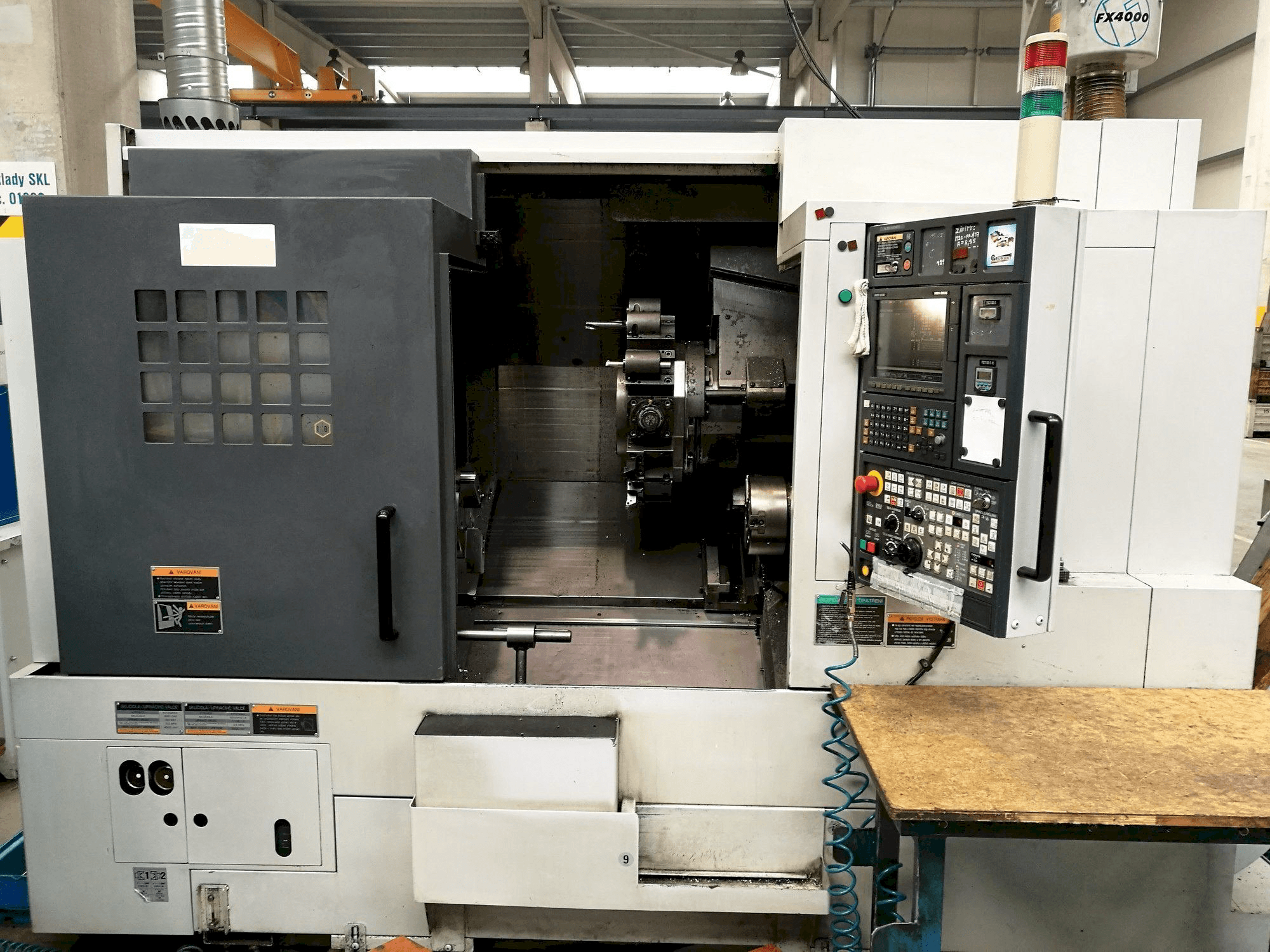

MORI SEIKI - NL 2500 SMCES-TUR-MOR-2008-00001

Additional equipment

• Installation interface for bar loader
• Tool holders equipment included : External single holders, 3 units External double holders, 2 units. Internal single holders, 4 units. Double internal tool holders, 2 units. Motorized radial holders, 2 units. Axial Motorized Door, 1 unit. Frontal Holder, 1 unit. Truncated Holder, 1 unit

Machine Benefits

Qualitative Machine Benefits

• Machinable diameter 365 mm. Machinable length 755 mm
• Oil cooler for both daikin spindles
• Mapps 4 automatic conversational programming system. Automatic stress control and tool consumption monitor
• Indexing time for turret change 0. 2 seconds. Two arms for automatic measurement of renishaw tools
• Communication ports via usb, pcmcia card and rs 232
• Automatic parts collector. Double foot pedal for opening and closing of main and sub-spindle independent
• Lateral chip extractor hinge type
• Electrical transformer
• Documentation, parts list, electrical diagrams, programming and operation manual
• Machine currently in operation

Technical Machine Benefits

• Sub-spindle
• Turret with 12 stations, all of them motorized
• C-axis on both spindles
• Ntegrated sub-spindle head motor 11 kw. Motor direct motorized tools 5,5 kw. Motor starting torque 640 n/m.
• Motors without belts or steps
• Main spindle size a2-8. Secondary spindle size a2-6
• Bar pitch 80 mm
• 250 mm main spindle chuck with metric system. 170 mm sub-spindle chuck with metric system
• Prismatic guides on all axes
• Motorized tools speed 6. 000 rpm. Turning diameter 755 mm
