MORI SEIKI - CL 1500 TDE-TUR-MOR-2003-00001

Rs. 1,868,649
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

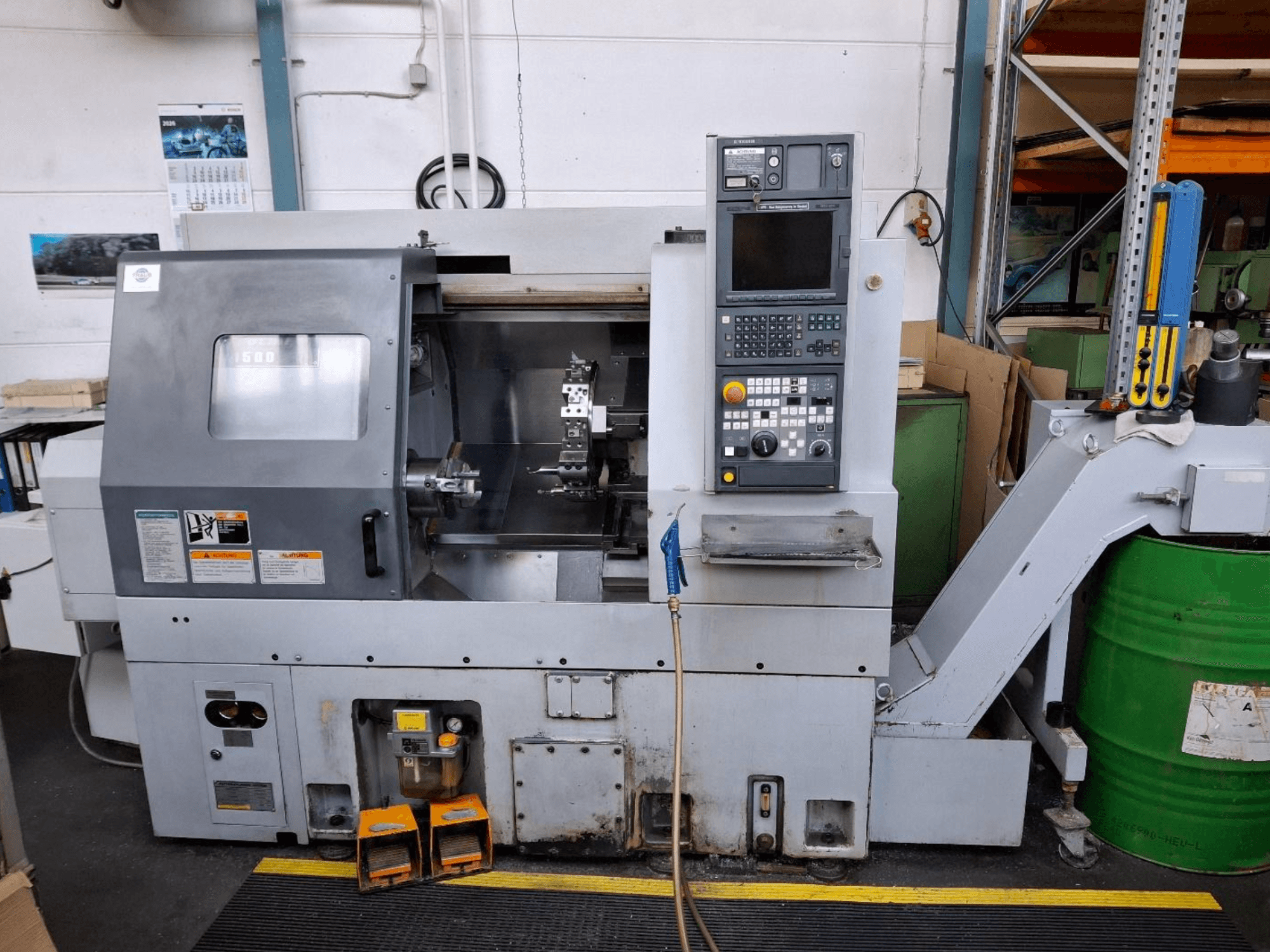

Horizontal turning machine manufactured in 2003. This MORI SEIKI CL 1500 T features a Kitagawa power chuck and includes a tailstock, tool measuring system, and tool holders. With production hours of 1523, this machine offers reliable performance for turning applications. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI CL 1500 T machine we have for sale. Contact us for further details.

Overview

  • brand: MORI SEIKI
  • year: 2003
  • MODEL: CL 1500 T
  • production hours: 1523
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine

Technical Information - MORI SEIKI CL 1500 T

Dimensions

  • Machine Height: 1810 mm
  • Machine Length: 1990 mm
  • Machine Weight: 3390 kg
  • Machine Width: 1640 mm

Movement

  • Number of Axes: 2
  • X-axis Travel: 245 mm
  • Z-axis Travel: 570 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: No
  • Spindle Power: 7.5 kW
  • Spindle Speed: 6000 RPM

Additional Information

  • Control: MSG-805 V (MAPPS)

  • Maximum Swing Diameter: 510 mm

  • Recommended Turning Diameter: 176 mm

  • Maximum Machining Diameter: 420 mm

  • Maximum Turning Length: 570 mm

  • Spindle Nose: A2-5

  • Spindle Bore: 43 mm

  • Spindle Bearing Diameter: 80 mm

  • Bar Capacity: 33 mm

  • X-Axis Servo Motor: 1.5 kW

  • Z-Axis Servo Motor: 2.0 kW

  • Rapid Traverse X-Axis: 24 m/min

  • Rapid Traverse Z-Axis: 24 m/min

  • Feed Rate Range: 0 – 1,260 mm/min

  • Resolution: 0.001 mm

  • Positioning Accuracy X-Axis: 0.004 mm

  • Positioning Accuracy Z-Axis: 0.004 mm

  • Repeatability X-Axis: ±0.003 mm

  • Repeatability Z-Axis: ±0.003 mm

  • Tailstock Quill Diameter: 85 mm

  • Tailstock Taper: MT4

  • Tailstock Quill Stroke: 120 mm

  • Tailstock Travel: 340 mm

  • External Tool Size: 20 × 20 mm

  • Internal Boring Bar Capacity: Ø32 mm

  • Number of Turret Stations: 12

  • Turret Index Time: 0.7 sec

  • Turret Clamping Force: 2300 Nm

  • Index Coupling Diameter: 180 mm

  • Automatic Turret Direction Logic: Yes

  • Coolant Tank Capacity: 150 L

  • Coolant Pump Flow Rate: 13 L/min

  • Automatic Central Lubrication: Yes

  • Power Supply: 400 V / 3 Phase / 50 Hz

  • Control Voltage: 200 V AC / 24 V DC

  • Connected Load: 17.3 kVA

  • Chuck: Kitagawa B-206 A5 Hydraulic Power Chuck

  • Tailstock: Hydraulic

  • Tool Presetter: Included

  • Tool Holders: Included

  • Dual Foot Switch: Included

  • Reinforced Coolant Pump: 20 L/min

  • Reinforced Coolant Pump Pressure: 5 bar

  • Reinforced Coolant Pump Motor Power: 1.1 kW

  • Chip Conveyor: optional, not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
