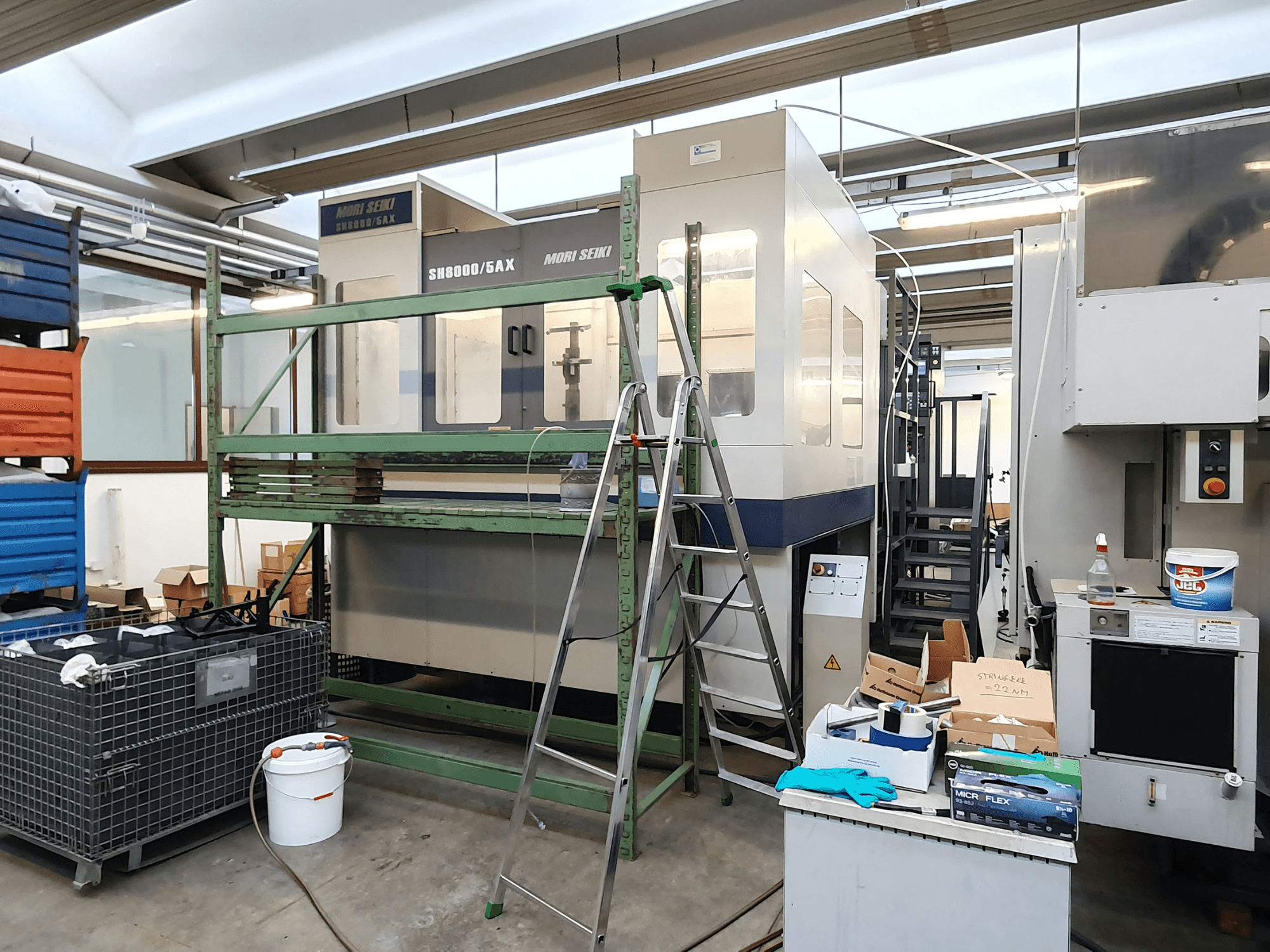

This 5-axis MORI SEIKI SH8000/5AX was manufactured in 2002. Fully overhauled in 2016, it features a Fanuc 16iMA control, a spindle speed of 10,000 rpm, and a tool magazine with a capacity of 150 tools. The machine has a pallet size of 630 × 630 mm and a loading capacity of 1000 kg. If you are looking to get high quality milling capabilities consider the MORI SEIKI SH8000/5AX machine we have for sale. Contact us for more information.
Overview
- brand: MORI SEIKI
- year: 2002
- MODEL: SH8000/5AX
- production hours: 400
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - MORI SEIKI SH8000/5AX
Control Unit
- Control Brand: FANUC
- Control Model: 16iMA
Dimensions
- Machine Height: 3950 mm
- Machine Length: 9500 mm
- Machine Weight: 15000 kg
- Table Load: 1000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1080 mm
- Y-axis Travel: 1200 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Spindle Power: 30 kW
- Spindle Speed: 10000 RPM
Additional Information
Condition: Completely overhauled in 2016; excellent technical condition, minimal use since
Documentation: Full paper record of all overhaul interventions and replaced parts
Spindle hours: ~400 total (≈200 h test running, <200 h light aluminium); spindle was new at overhaul and reset to 0 h
Overhaul highlights (2016): Partial hydraulic system renewal, new hydraulic valves, electrical system replaced, new Z-axis motor, new linear guides, new ball screws and support bearings, new pumps, several FANUC drives replaced, new electrical transformer, lower section of electrical cabinet replaced; spindle new/reset
Pallet system: 2 pallets, 630 × 630 mm, 1000 kg load
Table/Axes: Full continuous B-axis table; min indexing angle 0.001°
Rapid feeds: 42,000 mm/min
Spindle: MAS BT50
Tool magazine: 150 tools
Workpiece capacity: Max Ø × H = 1000 × 1000 mm
Additional equipment
Central hinge-type chip conveyor with rear discharge
High-pressure coolant system (OGURA CLUTCH) 50 bar
Optical scales
Autotransformer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
