➤ Used Mitsui Seiki HR8A For Sale | gindumac.com

Show in original language

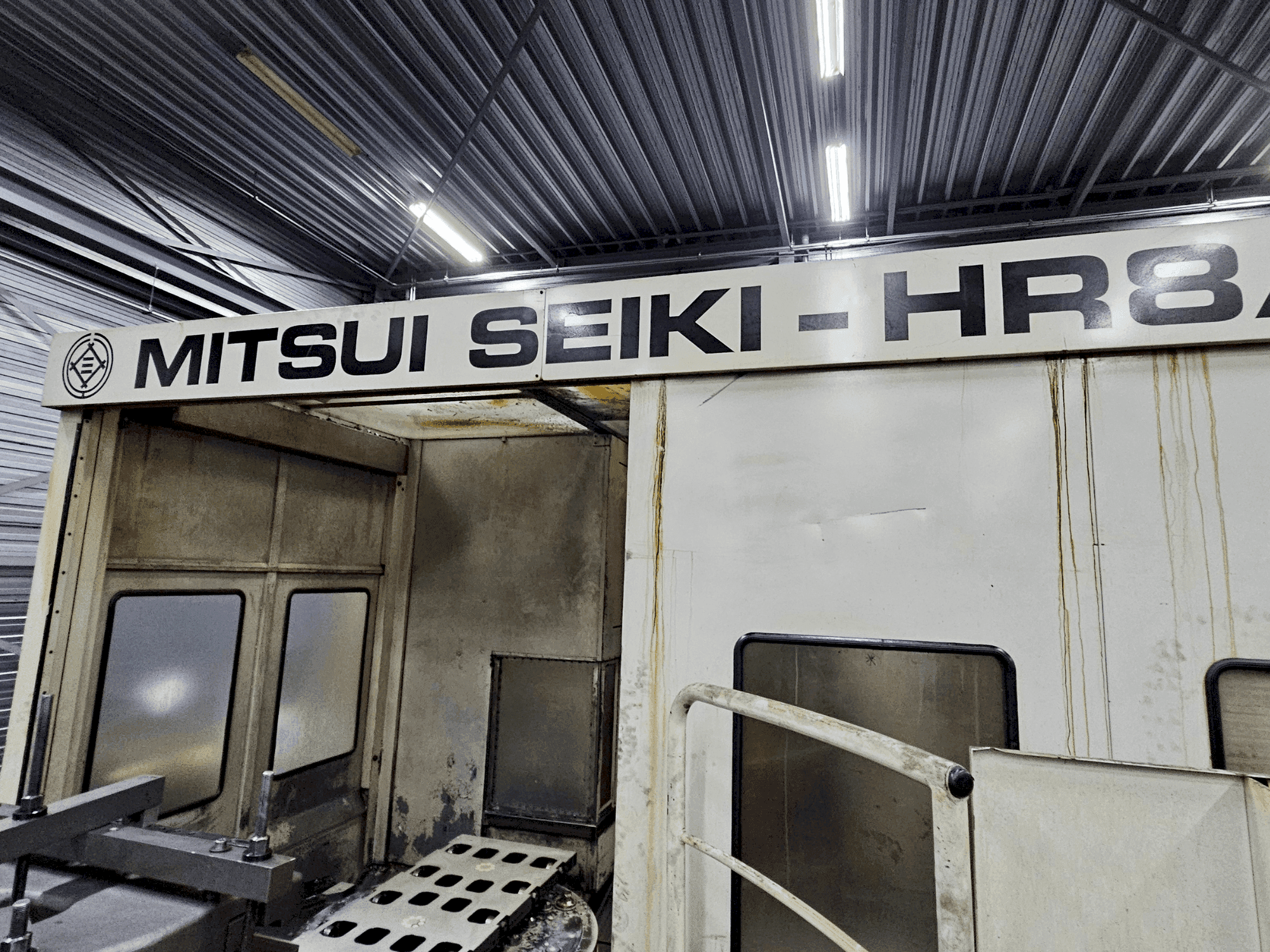

This 4-axis Mitsui Seiki HR8A horizontal machining centre was manufactured in 1989. It features a Fanuc 11MF control, a 3-pallet system with pallets measuring 1300 x 1300 mm, and a maximum pallet load of 4000 kg. The spindle supports ISO 50 taper, achieves speeds up to 3150 rpm, and delivers 1980 Nm of torque. Additional features include a 270-position tool magazine and a chip conveyor. If you are looking to get high-quality machining capabilities, consider the Mitsui Seiki HR8A machine we have for sale. Contact us for more information.

Overview

brand: Mitsui Seiki
year: 1989
MODEL: HR8A
application type: Milling
Location: Netherlands
machine type: Horizontal Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - Mitsui Seiki HR8A

General Data

Measurements width: 9200 mm
Measurements depth: 12000 mm
Measurements height: 5500 mm
Machine weight: 45000 kg

Control Unit

Brand: FANUC
Model: 11MF

Main drive

Spindle speed range: 8 – 3150 rpm 1/MIN
Spindle motor power: 30/35 kW
Tool taper: ISO 50
Number of axis: 4

Movement

X-AXIS Movement: 1800 mm
X-AXIS Feed Force: 4000 mm/min
X-AXIS Rapid traverse: 7000 mm/min
Y-AXIS Movement: 1500 mm
Y-AXIS Feed Force: 4000 mm/min
Y-AXIS Rapid traverse: 10000 mm/min
Z-AXIS Movement: 1200 mm
Z-AXIS Feed Force: 4000 mm/min
Z-AXIS Rapid traverse: 10000 mm/min
W-Axis Movement: 500 mm

Tools

Max weight: 30 kg
Max tool diameter: 125/250 mm
Max tool length: 470 mm

Media

Chip conveyor: Yes

Additional equipment

- Equipped with Linear Scale Feedback System X,Y,Z
- Renishaw Probing OMP 60
- Total 5-pallets
- Tool Magazine Positions: 270

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque: 1980 nm
- - Spindle bearing diameter: 120 mm
- - Table indexing b: 0. 001 degrees
- - Number of pallets in system: 3-pallets
- - Pallet size: 1300 x 1300 mm
- - Pallet load: 4000 kg
- - Tool-to-tool time: 15 sec.
- - Chip-to-chip time: 25 sec.
- - Coolant through the spindle: 20 bar
Qualitative Machine Benefits:
- - Installed new in 1999

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
