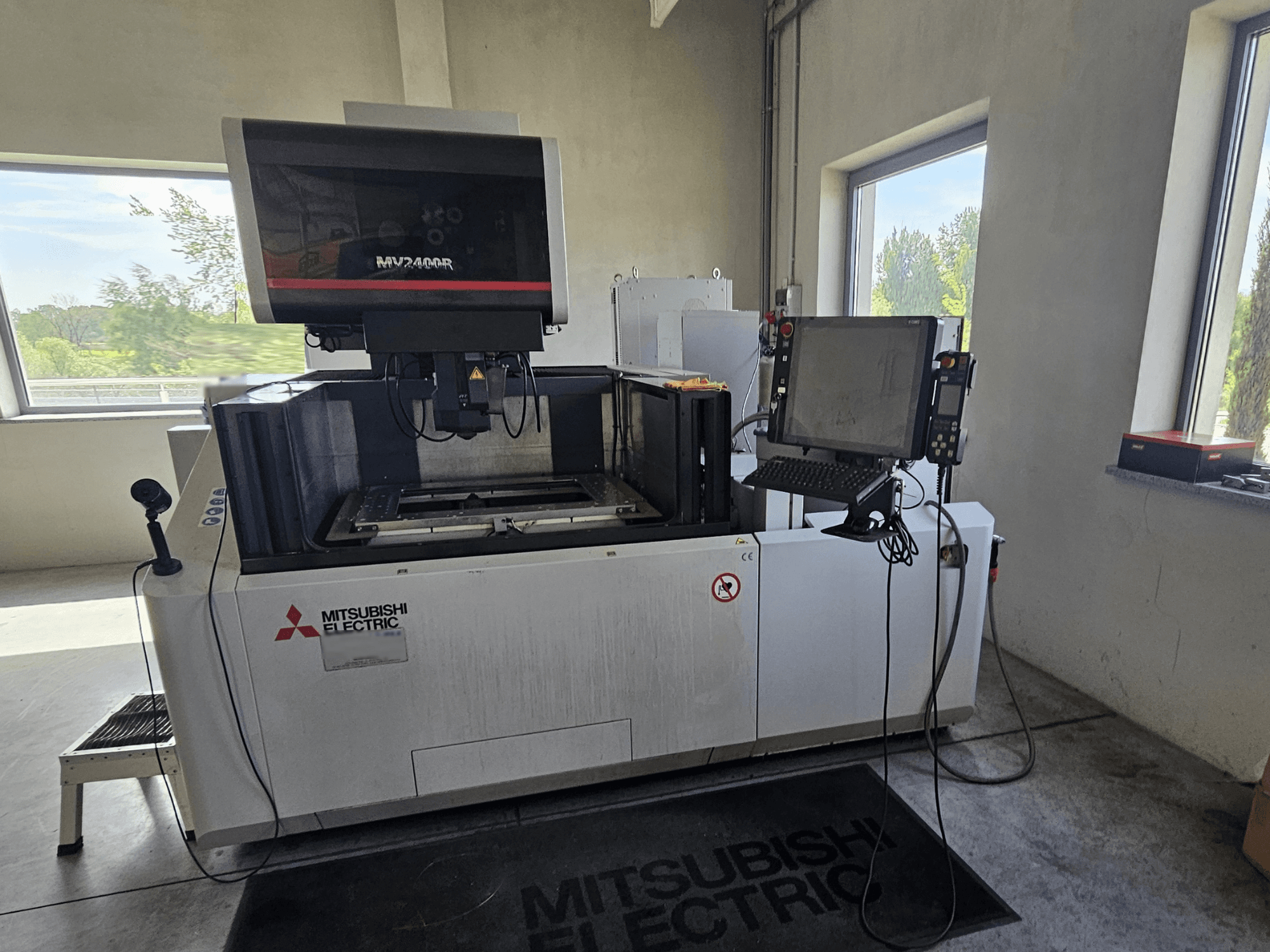

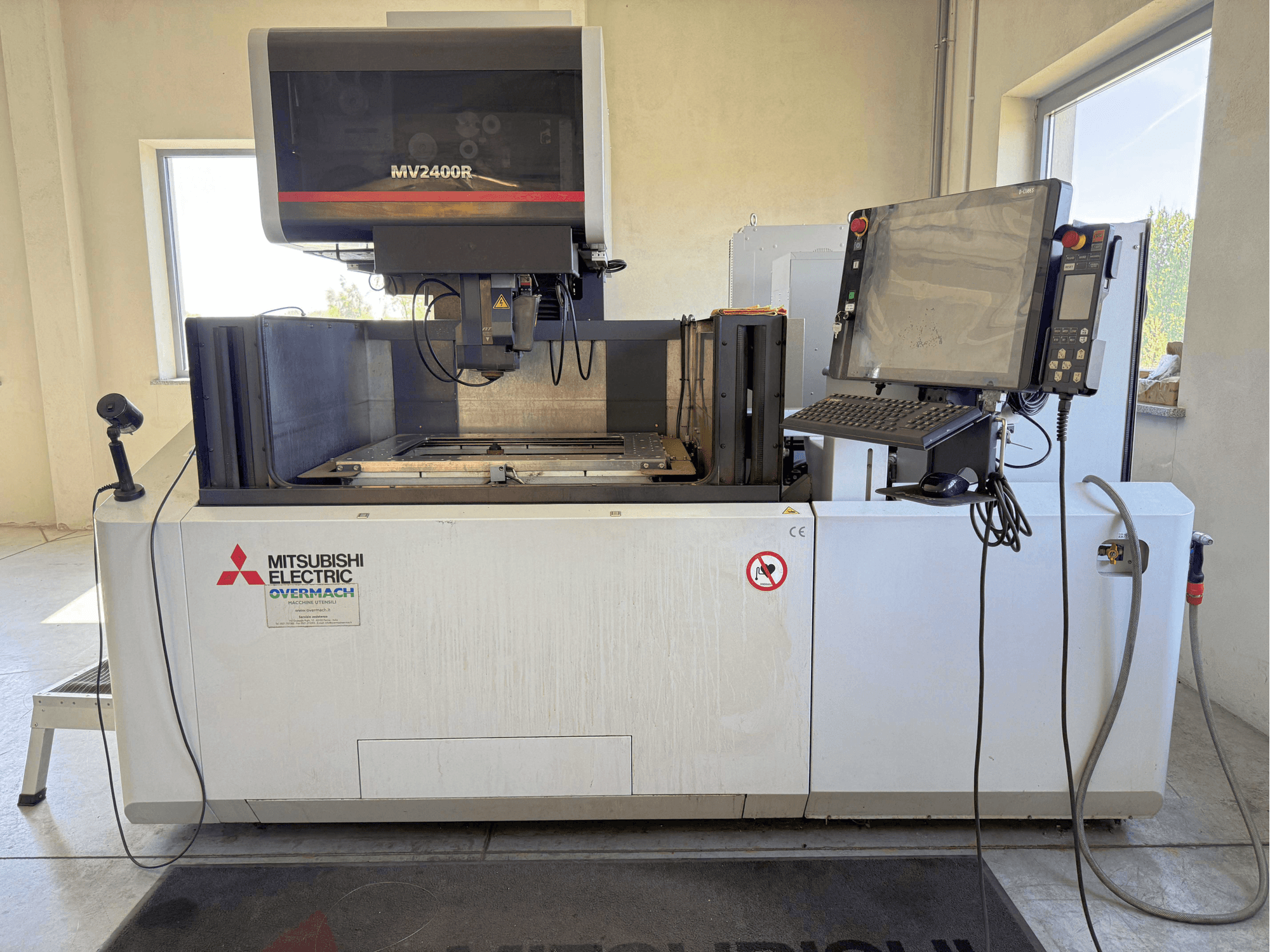

This 5-axis Mitsubishi MV2400R wire-cut EDM machine was manufactured in 2017. It features an X-axis travel of 600 mm, Y-axis travel of 400 mm, and Z-axis travel of 310 mm, accommodating workpieces up to 1050 × 820 × 305 mm and weighing up to 1500 kg. If you are looking to get high-quality wire-cutting capabilities, consider the Mitsubishi MV2400R machine we have for sale. Contact us for further details.
Overview
- brand: Mitsubishi
- year: 2017
- MODEL: MV2400R
- application type: EDM
- Location: Poland
- machine type: Wire EDM Machine
- control unit brand: MITSUBISHI
Technical Information - Mitsubishi MV2400R
Control Unit
- Control Brand: MITSUBISHI
- Control Model: D‑CUBES / M800 series
Dimensions
- Machine Height: 2150 mm
- Machine Length: 3030 mm
- Machine Weight: 3500 kg
- Machine Width: 1050 mm
Movement
- Number of Axes: 5
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 310 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
Axis travels: U ±75 mm, V ±75 mm
Max. workpiece dimensions (W × D × H): 1050 × 820 × 305 mm
Max. workpiece weight: 1500 kg
Table dimensions (W × D): 840 × 640 mm
Max. taper angle: 15° at 260 mm workpiece height
Wide‑angle taper (option): up to 45° at 60 mm (with special guides)
Positioning accuracy: ≤ ±2 μm over full stroke (MV‑R series spec)
Dielectric tank capacity: 860 L
CNC control: Mitsubishi D‑CUBES / M800 series; Industry 4.0 ready (networking and monitoring interface)
Machine condition: Excellent condition; very low hours
Industry 4.0: Prepared for connectivity
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
