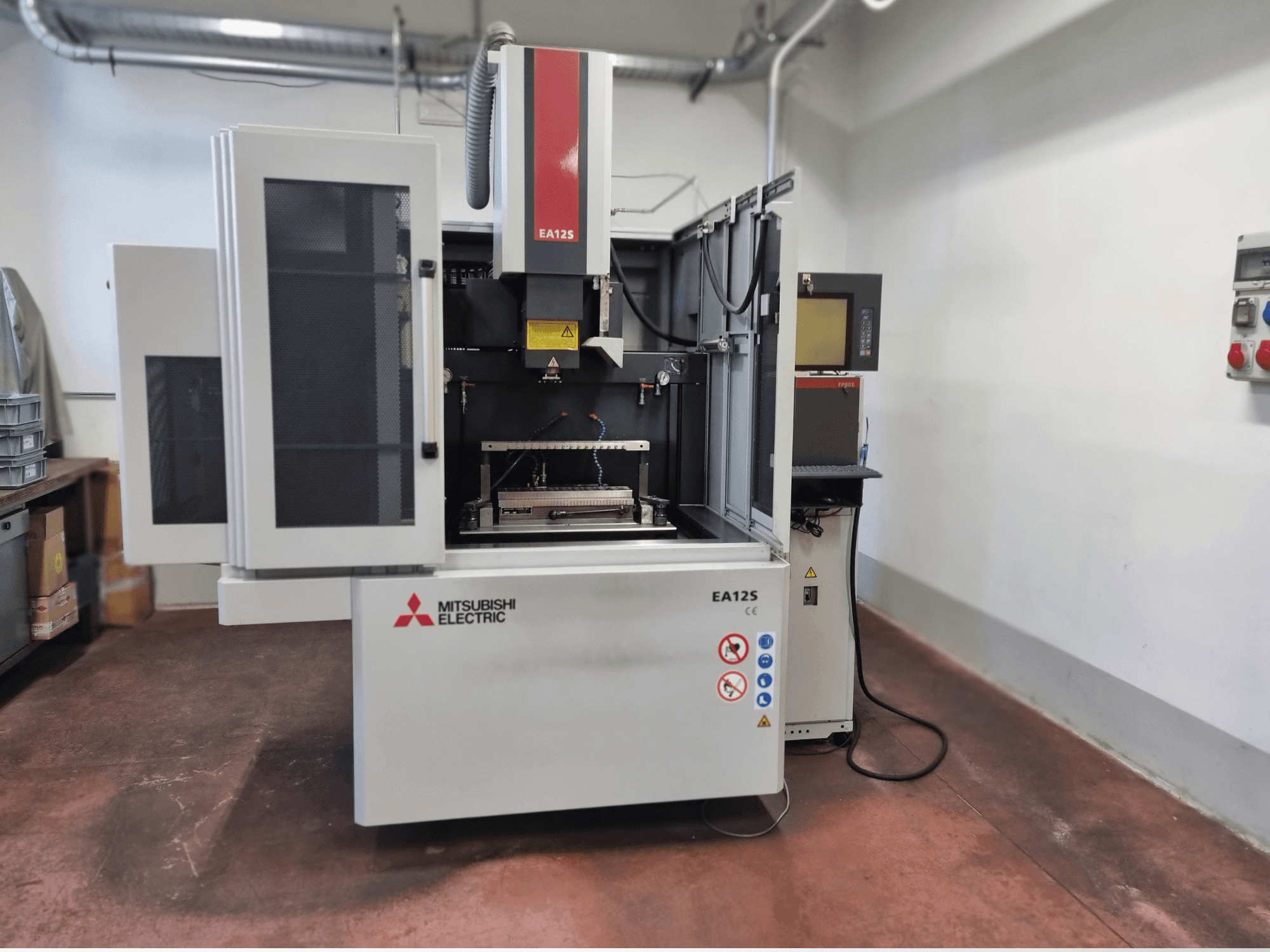

This 4-axis Mitsubishi EA 12S die-sinking EDM machine was manufactured in 2016 in Japan. It features X/Y/Z travels of 400/300/300 mm, a maximum workpiece weight of 700 kg, and a stainless steel table measuring 700 × 500 mm. Equipped with a C-axis and Erowa chuck, it also includes a dielectric filtration system with a 400 L tank. Consider the opportunity to buy this Mitsubishi EA 12S die-sinking EDM machine. Contact us for more information about this machine.
Overview
- brand: Mitsubishi
- year: 2016
- MODEL: EA 12S
- application type: EDM
- Location: Italy
- machine type: Die-Sinking EDM Machine
Technical Information - Mitsubishi EA 12S
Dimensions
- Machine Depth: 2050 mm
- Machine Height: 2380 mm
- Machine Length: 2145 mm
- Machine Weight: 3725 kg
Movement
- X-axis Travel: 400 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 300 mm
Additional Information
Maximum Workpiece Dimensions: 850 x 640 x 250 mm
Maximum Workpiece Weight: 700 kg
Maximum Electrode Weight: 50 kg
Table Dimensions (LxW): 700 x 500 mm
Table Surface: Stainless steel
C-axis with Erowa Chuck: 152.5 – 452.5 mm
Maximum Dielectric Filling Level Stroke: 300 ml
Filtration System: Yes
Tank Capacity: 400 L
Filter Particle Fineness: 3 / 2 µm
Dielectric Temperature Control: Yes
Pulse Generator Power Supply with Transistor Control
Cooling Method: Fully Sealed, Indirect Air Cooling
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
