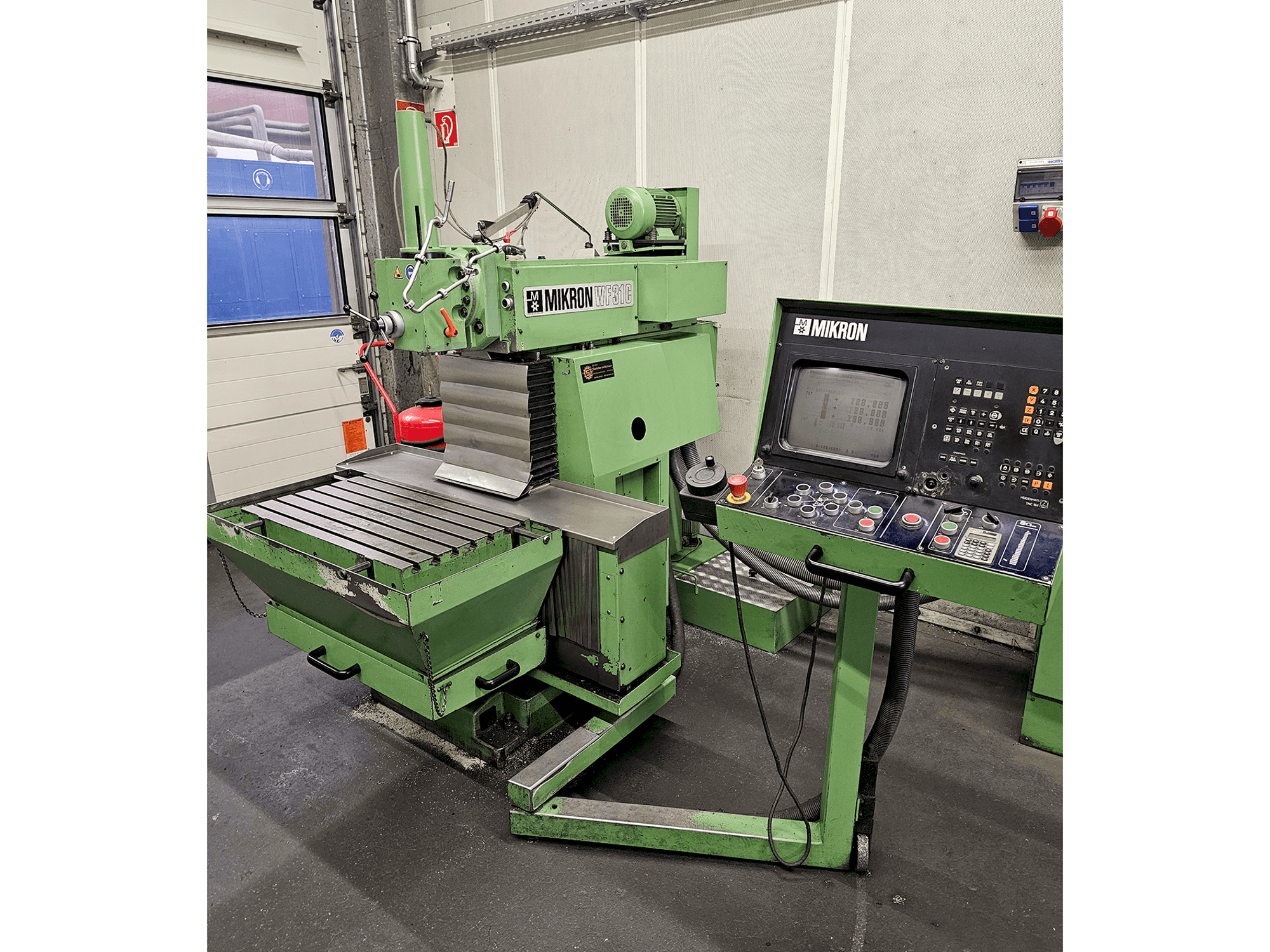

Front view of MIKRON WF-31C  machine

MIKRON WF-31C

MIKRON - WF-31C

1986

Rs. 404,300

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Mikron WF-31C Universal Machining center was manufactured in the year 1986. It is equipped with a MIKRON control unit and has 3 axis. The machine has a spindle speed of 31,5-3150 rpm.

Overview

  • brand: MIKRON
  • year: 1986
  • MODEL: WF-31C
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (universal)
  • availability: Immediately
  • control unit brand: MIKRON
  • GINDUMAC ID: DE-MIL-MIK-1986-00001

Technical Information

General Data

  • Measurements width: 2700 mm
  • Measurements depth: 2900 mm
  • Measurements height: 2000 mm
  • Machine weight: 2300 kg

Control Unit

  • Brand: MIKRON

Main drive

  • Spindle speed range: 31.5 - 3150 1/MIN
  • Spindle motor power: 3.3/4 KW
  • Tool taper: ISO 40/M 16
  • Number of axis: 3

Movement

  • X-AXIS Movement: 500 mm
  • Y-AXIS Movement: 500 mm
  • Z-AXIS Movement: 400 mm

Workpiece

  • Workpiece weight: 400 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Milling spindle drive: 21
      • - Speed range geom. Graduated: 1259
      • - Quill movement vertical: 90 mm
      • - Feed drives
      • - Adjustable: 2 - 3000 mm/min
      • - Rapid traverse speed x-axis and y-axis: 6000 mm/min, rapid traverse speed z axis: 5000 mm/min
      • - Torque feed motor lengthwise and crosswise: 3. 5 nm, torque feed motor vertical: 7 nm
      • - Displacement paths - length - transverse - vertical, longitudinal movement of the clamping table
      • - Max. Vertical installation height between: 450 mm
      • - Vertical milling head and angle table, by moving the table by 1 t-slot: 495 mm
    • Qualitative Machine Benefits:
      • - Vertical clamping surface: 300 x 450 mm
      • - Number of threaded holes: 2 x 6
      • - Thread hole distance: 45 mm, thread: m16
      • - Angle table clamping surface: 460 × 800 mm
      • - Number of t-slots: 7, t-slot spacing: 63 mm, t-slot width: 14-h7 mm
      • - Weight of the machine with vertical milling head and. Angle table: 2300 kg
      • - Weight of box base: 170 kg
      • - Weight of the transport box: 400 kg
      • - Amount of coolant m coolant tank: approx. 100 liters
      • - Electrical connection load: 9 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
