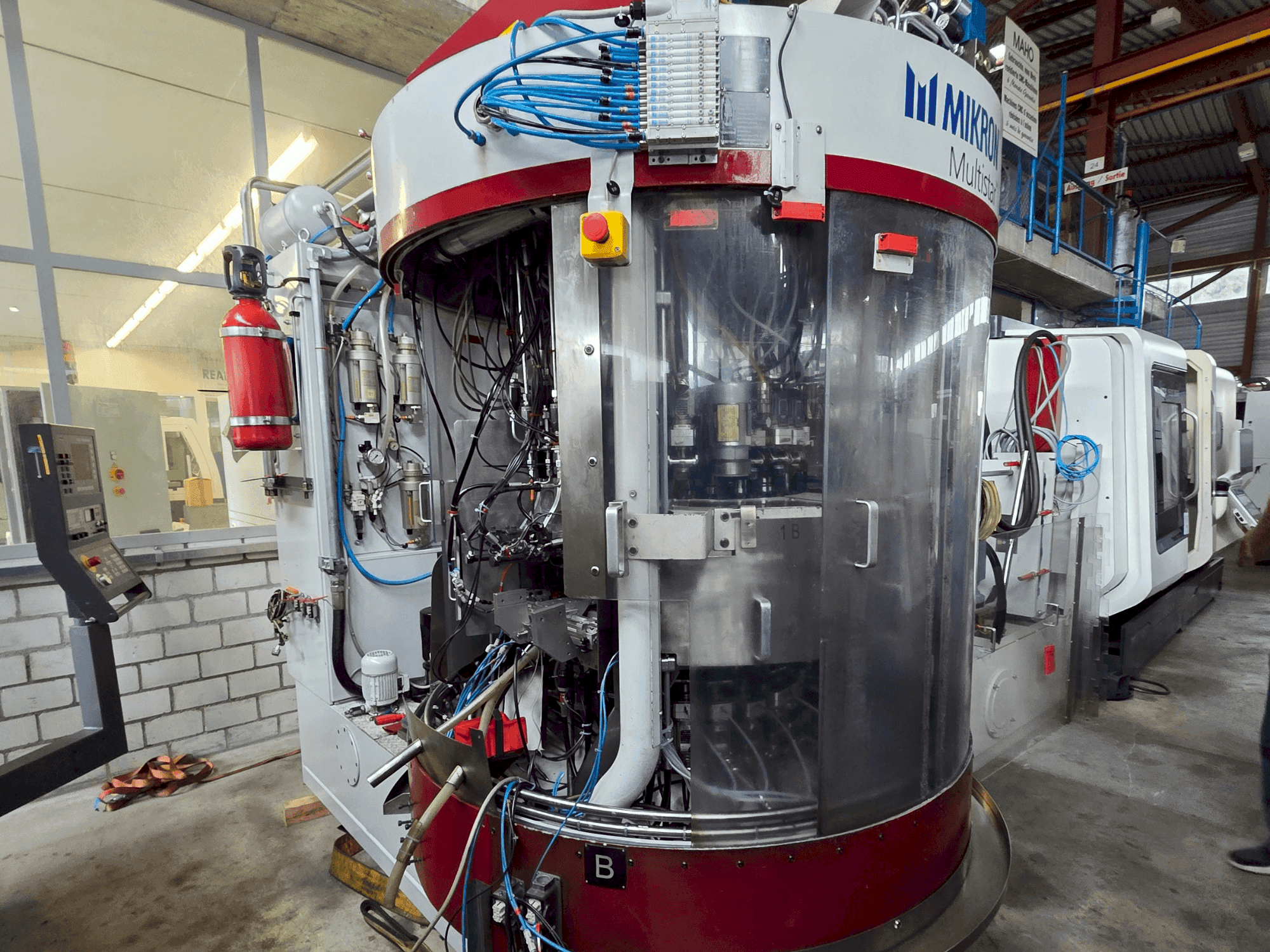

MIKRON - Multistar CX-24/500RFR-OTH-MIK-2009-00001

Additional equipment

• Environmental conditions: +10 °C to +40 °C, max. humidity 50% at 40 °C, 90% at 20 °C, max. altitude 1000 m a.s.l.
• Machine lifetime: 20 years

Machine Benefits

Technical Machine Benefits

• Max. Production: 70 pcs/min
• Max. Production in multiple cycle: 280 pcs/min

Extra Information

Control Unit Input voltage: 400V – 3-phase – 50/60 Hz – 200 A Power consumption: ~15–30 kWA Movement Max. stroke of units: 53 mm Max. speed: 0.2 m/sec Acceleration: 1.3 m/sec² + 3 m/sec² Electrical cabinet weight: ~800–1500 kg Spindle Rotating collet rotation speed: 6000 rpm Tools Max. stroke (X): 30 mm Max. stroke (Y): 35 mm Max. stroke (Z): 40 mm Media Compressed air: 5–6 bar (max. 6 g/m humidity) Compressed air consumption: ~10–20 m³/h Oil tank capacity: ~850 litres Oil vapour emissions: below permitted limits (with electrostatic filter)
