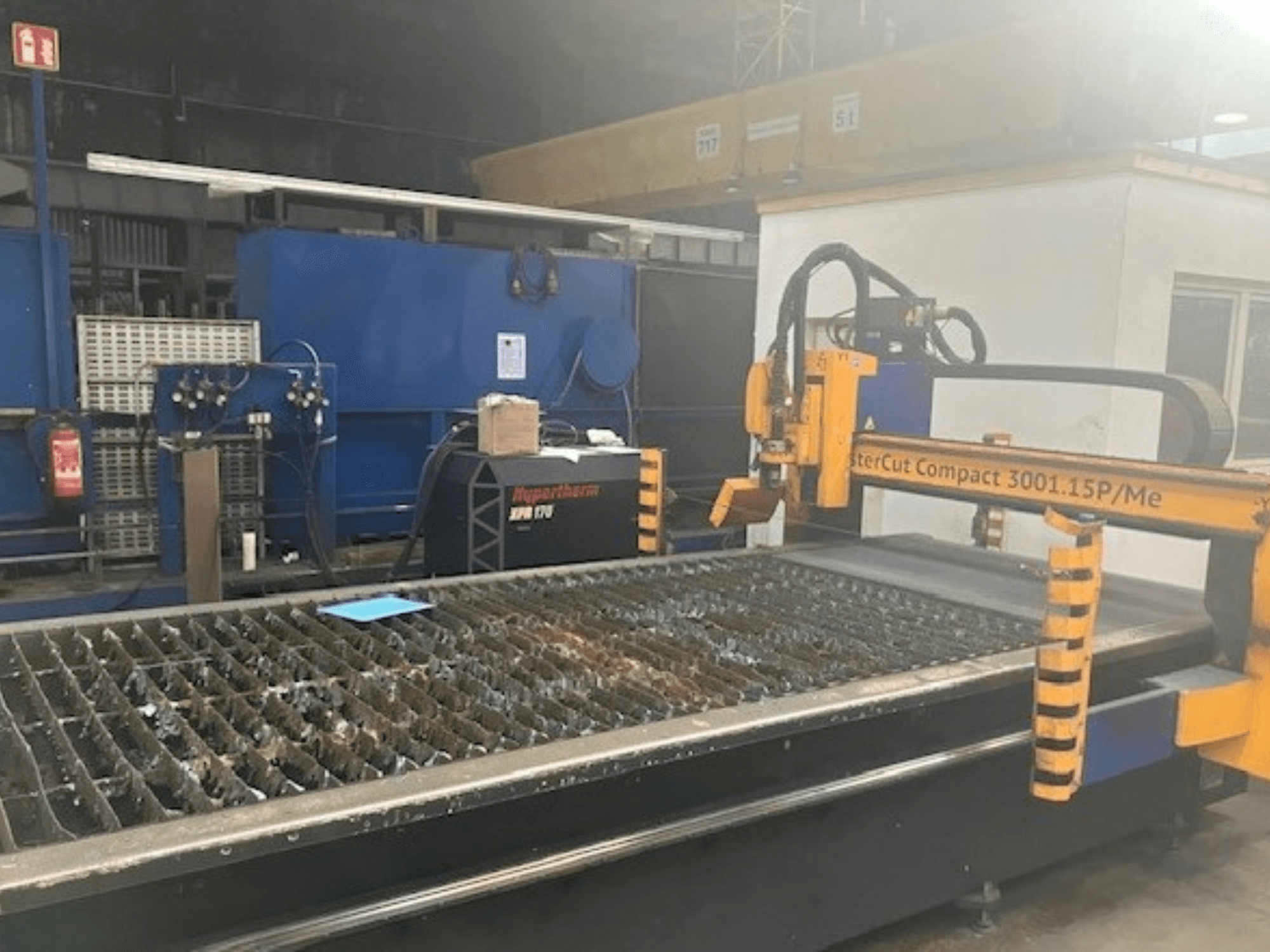

This 3-axis MicroStep 3001.15P/ME plasma cutting machine was manufactured in 2021. It features a working area of 1500x3000mm, ideal for precise and large-scale cutting tasks. If you are looking to get high-quality cutting capabilities, consider the MicroStep 3001.15P/ME machine we have for sale. Contact us for more information.
Overview
- brand: MicroStep
- year: 2021
- MODEL: 3001.15P/ME
- application type: Cutting
- Location: Germany
- machine type: Plasma Cutting Machine
- control unit brand: MicroStep
Technical Information - MicroStep 3001.15P/ME
Control Unit
- Control Brand: MicroStep
- Control Model: iMSNC
Dimensions
- Table Length: 3000 mm
- Table Width: 1500 mm
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 1500 mm
Additional Information
Working dimensions: 1500 x 3000 mm
Permissible plate thickness: stable construction up to 100 mm material thickness
Guides/Drives: high-quality linear guides and double-sided clearance-free drive
Axis control: digital, maintenance-free AC servos with IRC
Positioning speed: up to 40,000 mm/min
Measuring system: IRC 2500 (incremental encoder)
CNC control: MicroStep iMSNC with integrated network card
Plasma power source: Hypertherm XPR170
Gas console: automatic Core gas console
Table surface: grid cover in the cutting table
Height control: "THC" module for automatic height regulation via arc voltage
Marking unit: "MicroPunch" needle marking unit
Safety features: double-sided rope safety system (collision protection) for the gantry via Emergency Stop
Visual signaling: 2-color LED signal tower on the gantry bridge
Operation interface: externally standing MMI console
Connectivity: USB 3.0 port for storage media
Software: AsperWin Basic (2D programming) and AsperWin Nesting (automatic nesting)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
