➤ Used Metallkraft HTBS PRO 3113 For Sale | gindumac.com

Show in original language

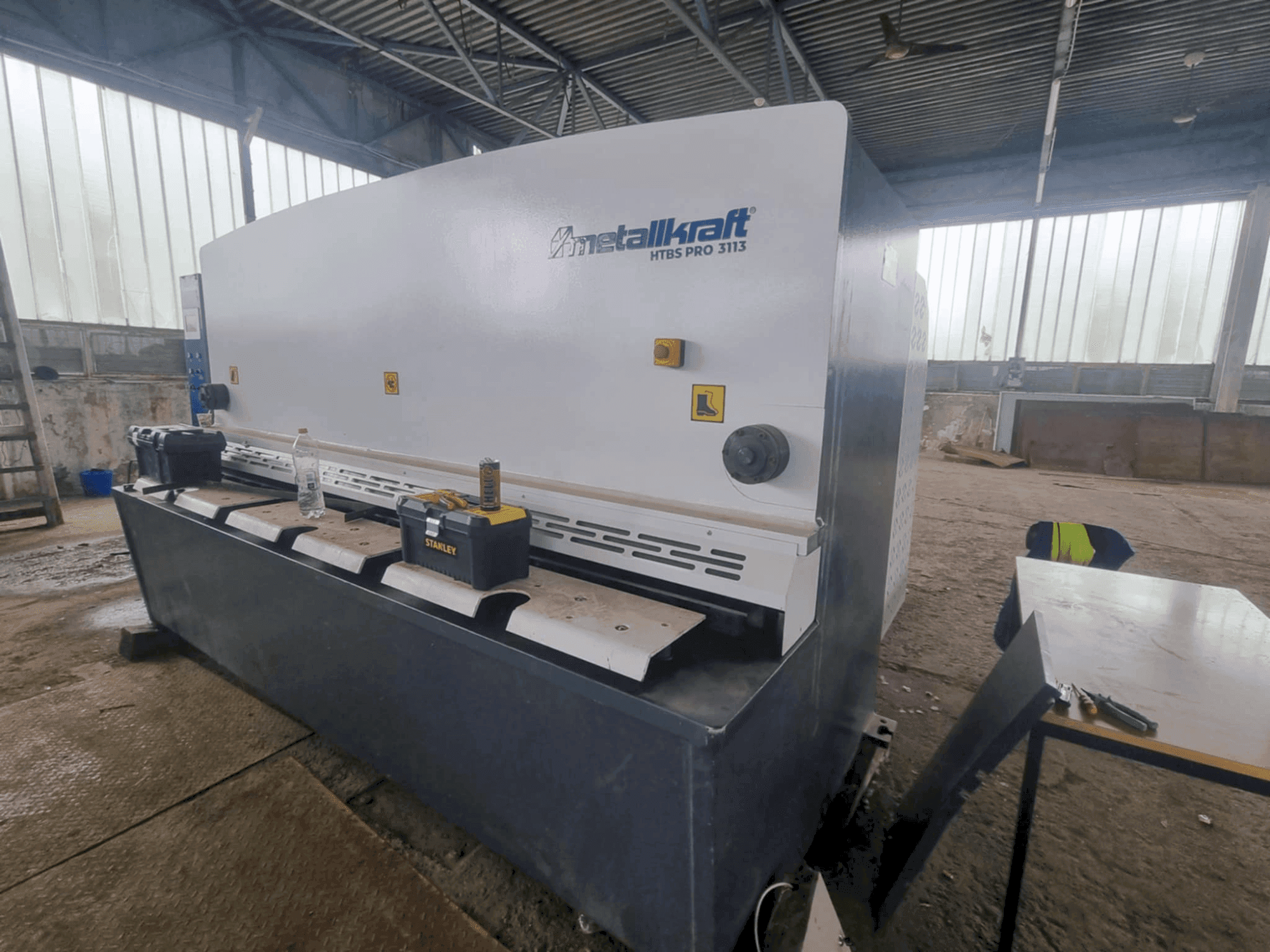

This Metallkraft HTBS PRO 3113 was manufactured in 2022. It's a hydraulic shearing machine designed for precise cutting of steel and stainless steel plates up to 13 mm thick. Features include a CNC-controlled back gauge, motorized cutting gap and angle adjustment, and built-in LED lighting for enhanced visibility. Ideal for industrial settings requiring high precision. Contact us for more information about this machine.

Overview

brand: Metallkraft
year: 2022
MODEL: HTBS PRO 3113
application type: Shearing
Location: Hungary
machine type: Hydraulic Shearing Machine
availability: Immediately

Technical Information - Metallkraft HTBS PRO 3113

General Data

Measurements width: 3700 mm
Measurements depth: 4100 mm
Measurements height: 2300 mm
Machine weight: 12500 kg

Main drive

Spindle motor power: 30 kW

Additional equipment

- CNC-controlled CybTouch 8 touchscreen for precise and easy settings
- Back gauge with ball screw and linear guide, CNC-controlled adjustable in the range of 5–1000 mm
- Motorized cutting gap and angle adjustment directly via the control panel
- 15 clamping units with rubber pads to prevent sheet slipping
- Built-in LED lighting to illuminate the cutting zone
- Safety elements include rear light curtain and fold-up plexiglass finger guard
- High-quality, resharpenable knives (upper knife 2-piece, lower knife 4-piece)
- Mobile foot pedal with emergency stop switch
- Built-in ball table for easy sheet movement
- Electrical components: Siemens and Mitsubishi // Hydraulic components: Hydac, Hoerbiger

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table dimensions: length: 3610 mm, depth: 635 mm, height: 805 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
