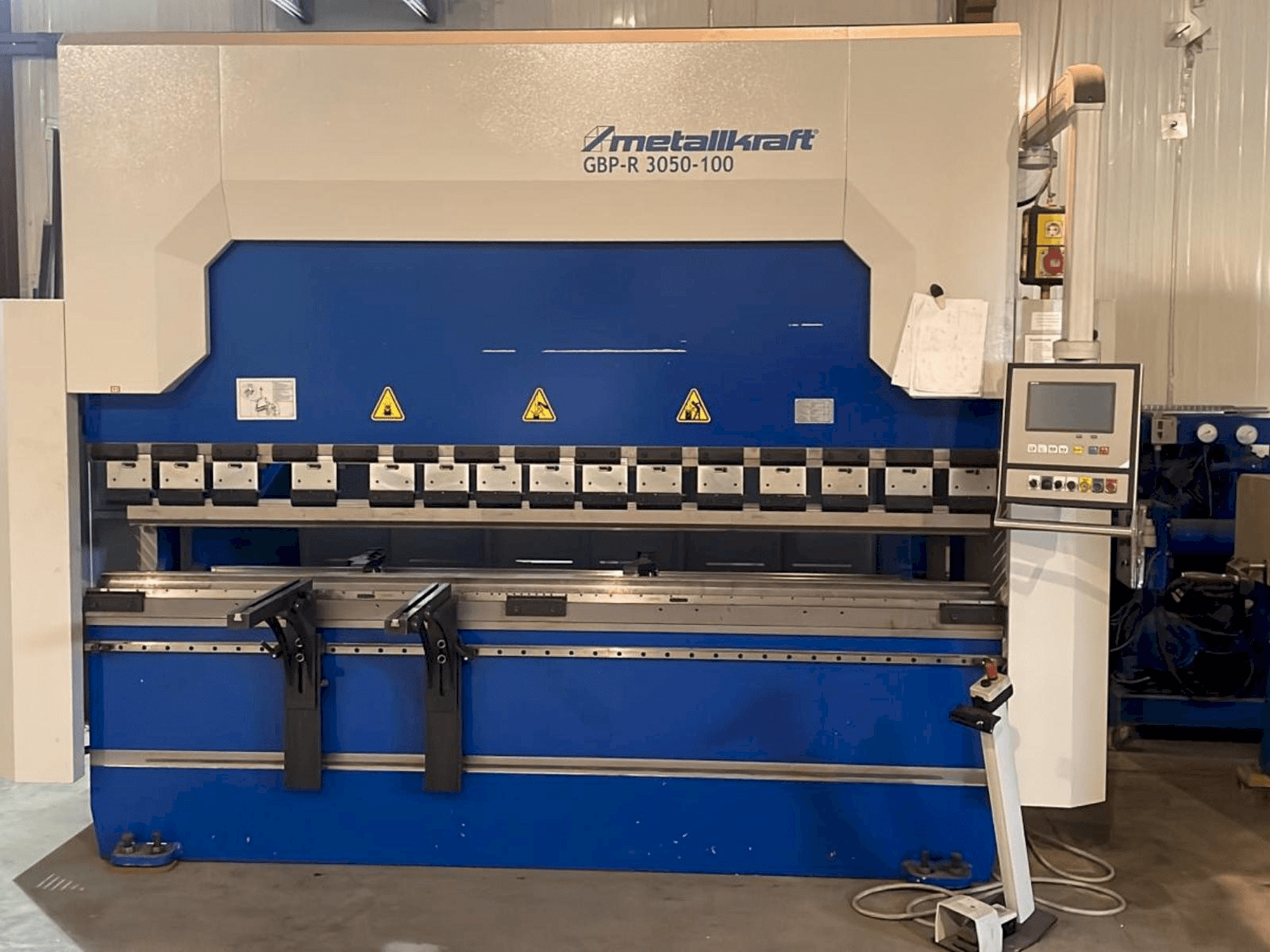

Front view of Metallkraft GBPR30540-100 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Metallkraft GBPR30540-100

Photo Gallery

Metallkraft - GBPR30540-100DE-BEN-MET-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Metallkraft GBPR30540-100 Bending machine

Show in original language

This Metallkraft GBPR30540-100 Bending machine was manufactured in the year 2017. It is equipped with a DT-10 control unit. The machine has a pressing force of 1000 kN.

Overview

brand: Metallkraft
year: 2017
MODEL: GBPR30540-100
application type: Bending
Location: Germany
machine type: Roll Bending Machine

Technical Information - Metallkraft GBPR30540-100

General Data

Measurements width: 1670 mm
Measurements depth: 4200 mm
Measurements height: 2750 mm
Machine weight: 9250 kg

Main drive

Pressing force: 1000 kN
Bending length: 3050 mm

Movement

X-AXIS Movement: 650 mm

Table

Outer width: 104 mm
Height adjustment: 900 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Column diffuser: 2600 mm
Stroke: 265 mm
Installation height: 530 mm

Technical Machine Benefits

Guided on linear rails and driven by backlash-free ball screws (from gbp-r 4050-400 x-axis 750mm)
Manual r-axis,
Height adjustment of the backgauge fingers via handwheels
Positioning of the upper beam with a resolution of 0. 01mm
Ateral upright deflection
Manual table crowning with counter
Complete set of rehfuß upper tools
Complete set of 4-fold dies with v-openings 16, 22, 35, 50 mm
Solid, low-maintenance quadruple guide of the upper beam
High-quality hydraulic components (bosch/rexroth, hydac, atos)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
