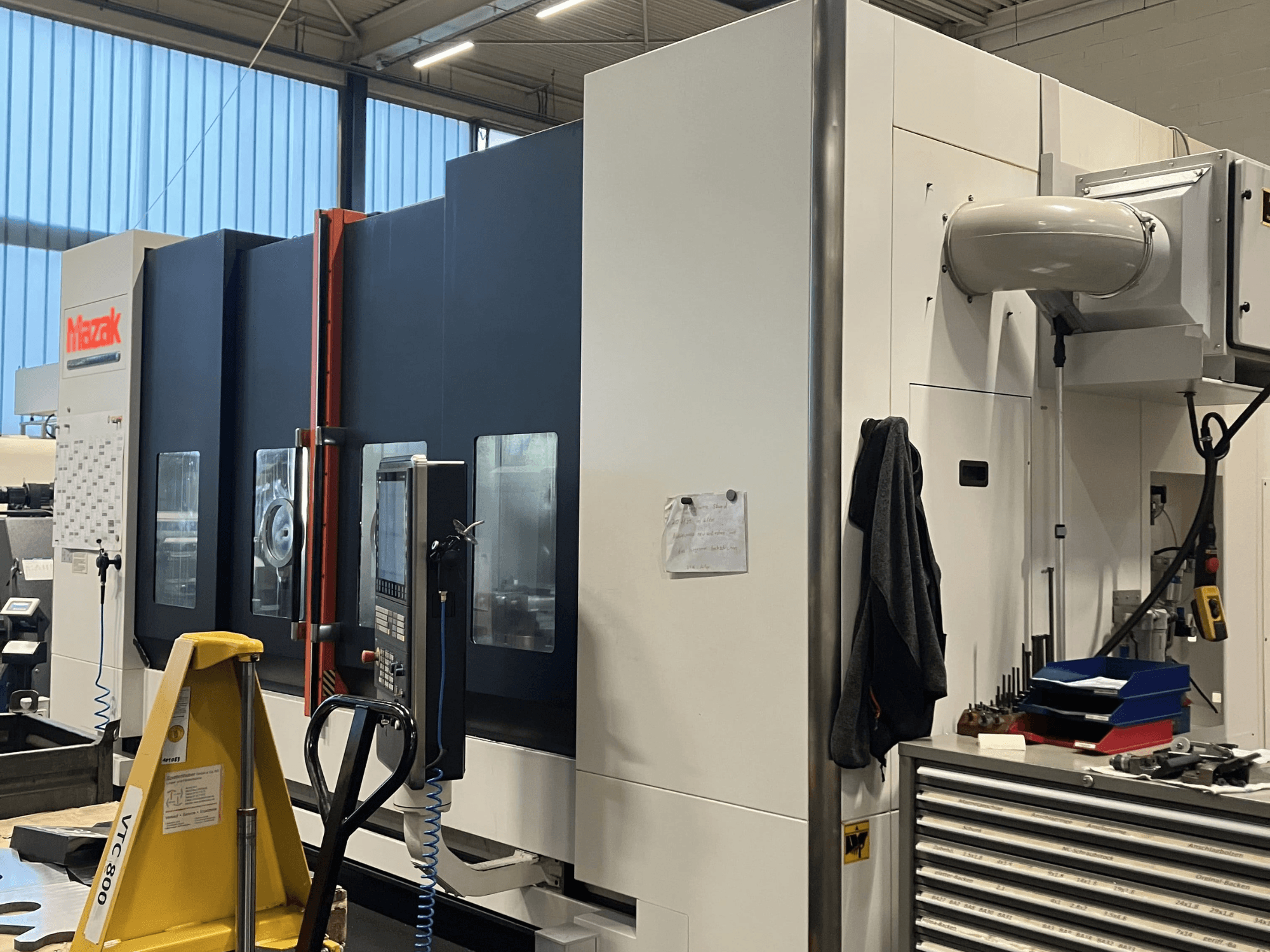

This 4-axis Mazak VTC 800/30 SR was manufactured in 2016, featuring a robust vertical machining center with a table width of 3,500 mm and length of 820 mm. It boasts a maximum speed of 18,000 rpm and rapid traverse speeds of 50 m/min on all X, Y, and Z axes. The machine includes a 30-position tool changer and can handle a maximum tool weight of 8 kgf. Consider the opportunity to buy this Mazak VTC 800/30 SR vertical machining center. Contact us for more information.
Overview
- brand: Mazak
- year: 2016
- MODEL: VTC 800/30 SR
- production hours: 16000
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- Available from: 31/03/2026
Technical Information - Mazak VTC 800/30 SR
Dimensions
- Machine Height: 3376 mm
- Machine Length: 5480 mm
- Machine Weight: 16300 kg
- Table Load: 2500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 3000 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 720 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 33 kW
- Spindle Speed: 18000 RPM
Additional Information
Travels
Table size: 3,500 x 820 mm
B-axis: +110 degrees
Min. distance spindle nose to table top: 140 mm
Max. distance spindle nose to table top: 860 mm
Work spindle
Steep taper tool holder (40° taper not included when ordering 155 HSK tools)
Feed rates
Rapid traverse speed X/Y/Z: 50 m/min
Worktable
T-slot width: 18 mm
Number of T-slots: 7
T-slot spacing: 100 mm
Table height from floor: 870 mm
Tool changer
Tool positions: 30 (standard) / 48 (optional)
Tool selection: shortest path
Tool shank: steep taper 40°
With adjacent positions occupied: 80 mm
With adjacent positions free: 130 mm
Total weight of all magazine tools: 150 kgf
Chip-to-chip time: 4.7 s
Utilities
Connection voltage: 380/400/415 V +10%
Connection frequency: 50/60 +1 Hz
Air pressure: 5–9 bar
Air flow rate: 260 l/min
Tank capacity: 500 L
Additional equipment
AirFresh FMN V12 extraction system (installed on both sides and connected to a door sensor)
Mounting bracket for vertical operation of the rotary table
2x Renishaw TS27R integrated tool presetting devices
Spare parts:
Y-axis motor for tool magazine
Linear axis shifter motor
Rotary axis shifter motor
Cylinder for swivel unit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
