Mazak - VTC-200B-IIDE-MIL-MAZ-2005-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Mazak VTC-200B-II
Show in original language

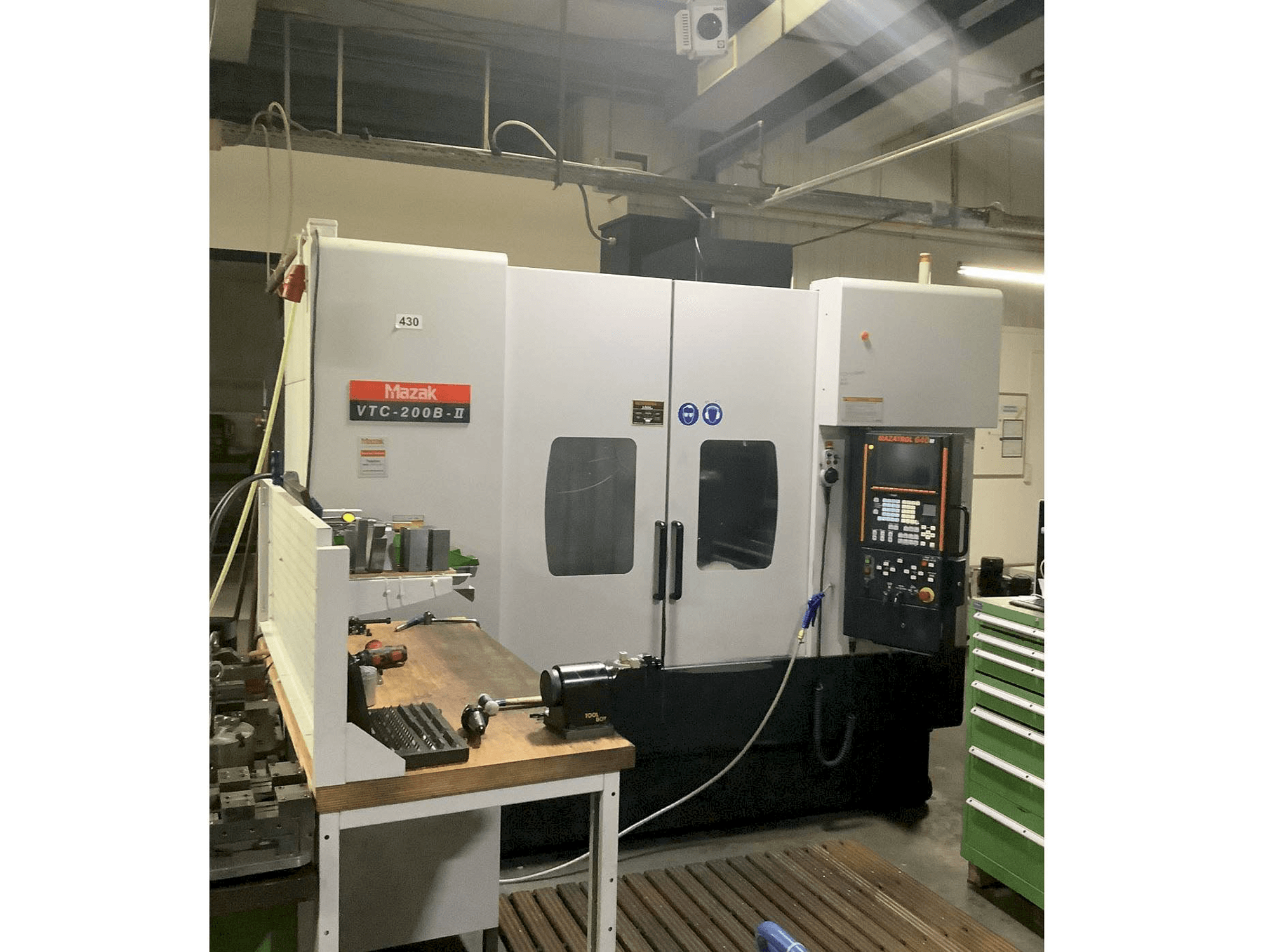

This Mazak VTC-200B-II Vertical Machining Center was built in 2005. It is operated through a MAZATROL 640M control unit. This 3 axis machine works with a spindle speed range 40-12000 rpm and a table size of 510 x 1460 mm.
Overview
- brand: Mazak
- year: 2005
- MODEL: VTC-200B-II
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: MAZATROL
Technical Information - Mazak VTC-200B-II
Control Unit
- Control Brand: MAZATROL
- Control Model: 640 M
Dimensions
- Machine Depth: 3312 mm
- Machine Weight: 6100 kg
- Table Length: 510 mm
- Table Load: 800 kg
- Table Width: 1460 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1120 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 18.5 kW
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Torque max. 98 nm
- Tank capacity 300 l
- Delivery rate at the pump 24 l/min
- Pressure at the pump 5 bar
- Tool magazine (chain version)
- Bar capacity cat 40
- Front of column to spindle centre 530 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
