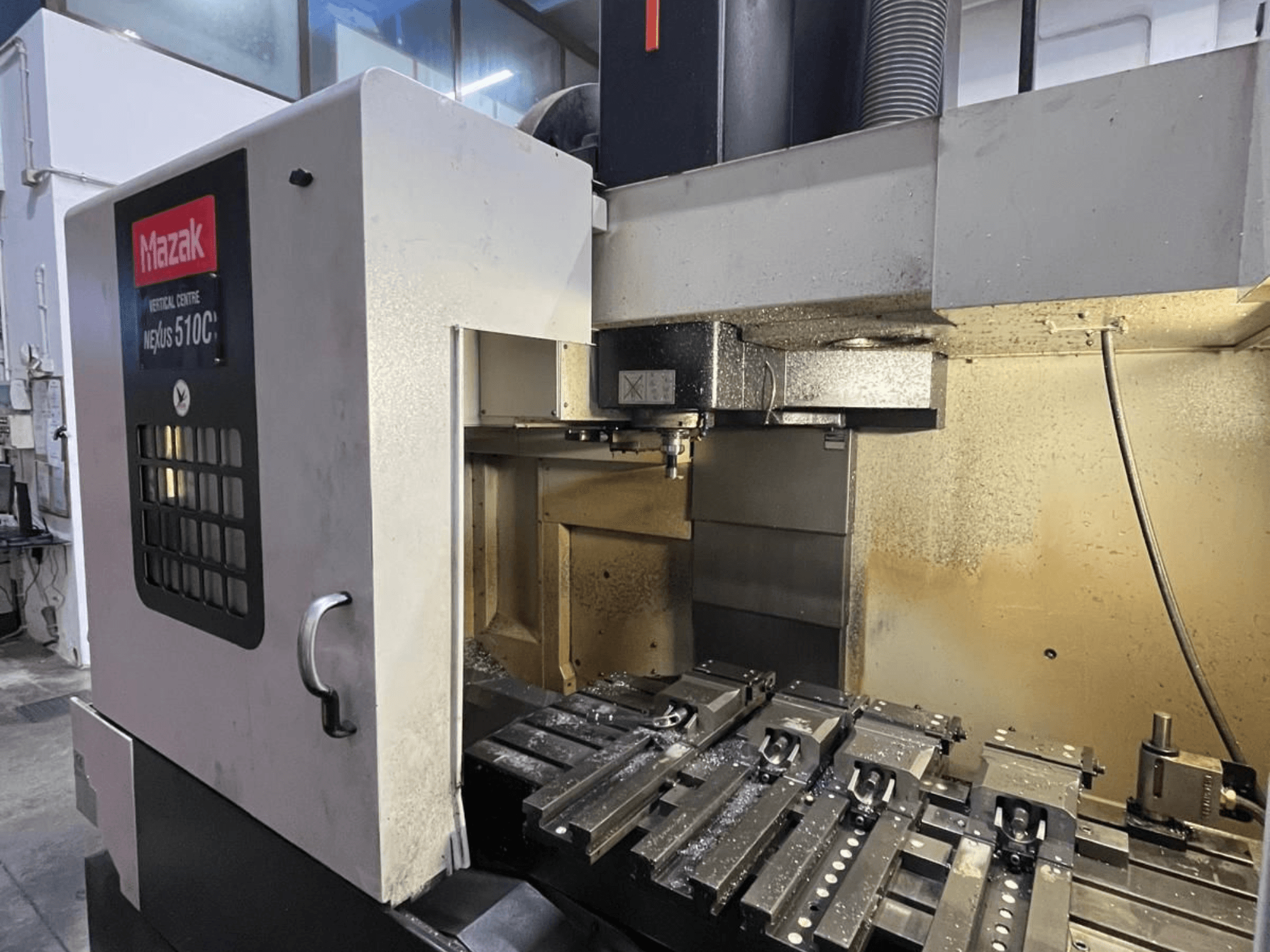

This 3-axis Mazak VCN-510C NEXUS was manufactured in 2004. It features an X-axis travel of 1,050 mm, Y-axis travel of 510 mm, and Z-axis travel of 510 mm. The machine is equipped with a spindle speed of 12,000 rpm and a tool changer with 30 positions. If you are looking to get high-quality machining capabilities, consider the Mazak VCN-510C NEXUS vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2004
- MODEL: VCN-510C NEXUS
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - Mazak VCN-510C NEXUS
Dimensions
- Machine Weight: 7100 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1050 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: ISO 40
Additional Information
Tool changer: 30 positions
Coolant system: Through-spindle
CE documentation: Yes
Control unit: FUSION 640
Additional equipment
High-pressure coolant system
Chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
