Mazak Super Turbo-X 510 MK III RTC Laser Cutting Machine

Show in original language

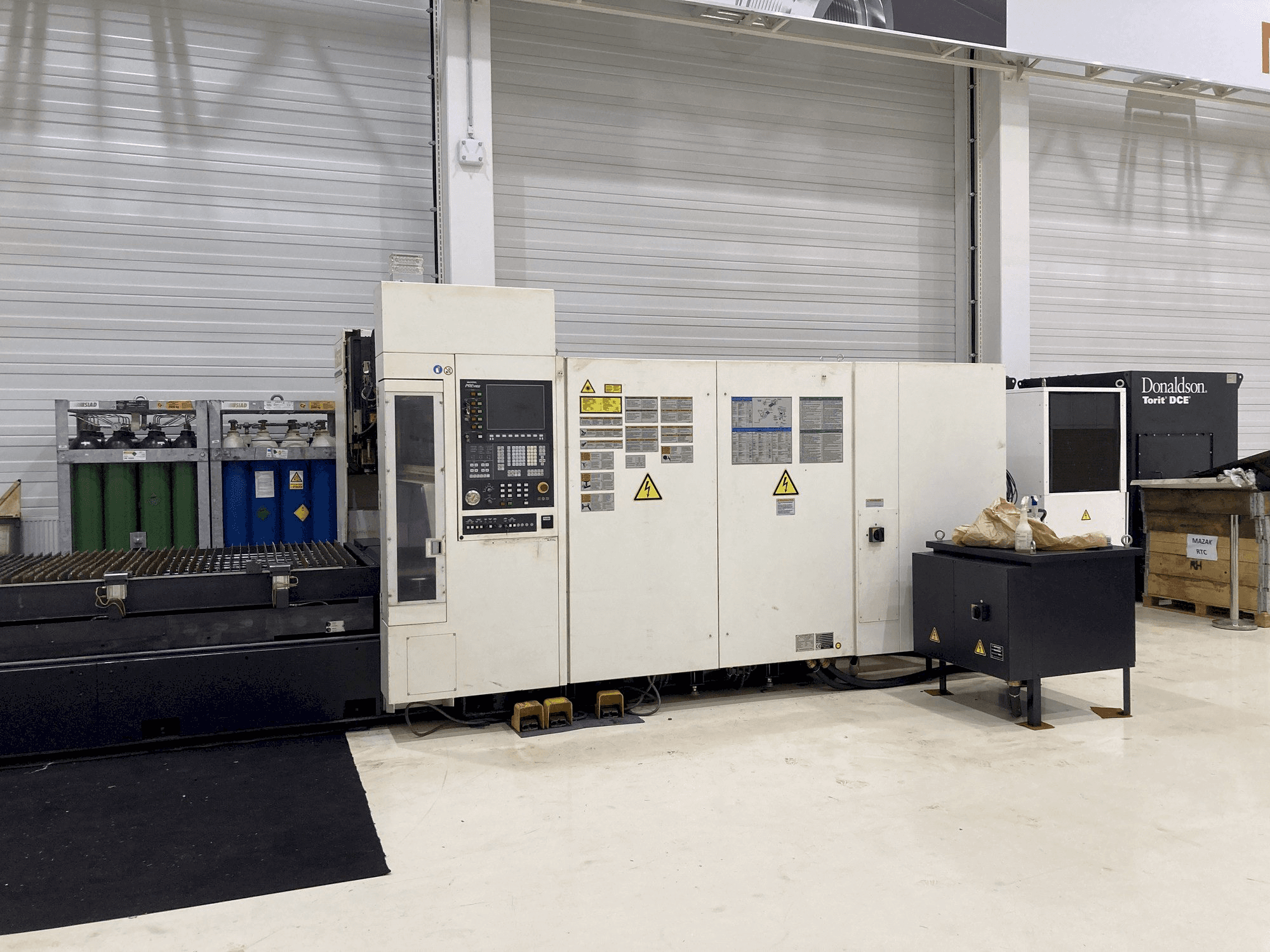

This Mazak Super Turbo-X 510 MK III RTC Laser Cutting Machine was built in 2014 in Japan. Equipped with a Mazak Mazatrol Control unit, this machine can perform with a laser power of 2.5 kW. It presents perfectly good conditions, as it has been regularly maintained by Mazak.

Overview

brand: Mazak
year: 2014
MODEL: Super Turbo-X 510 MK III RTC
application type: Cutting
Location: Czech Republic
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Super Turbo-X 510 MK III RTC

General Data

Machine weight: 12600 kg

Control Unit

Model: Mazatrol Preview M
Brand: MAZATROL

Main drive

Laserpower: 2,5 kW

Movement

X-AXIS Movement: 3260 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 1545 mm
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 430 mm
Z-AXIS Rapid traverse: 25 m/min

Workpiece

Workpiece x: 3050 mm
Workpiece y: 1525 mm

Additional equipment

- Exhauster
- 2 x Pipe Supporter
- 6 x Tap Collet

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece table height 900 mm
- - Max. Cutting feedrate: 24 m/min
- - Focal point adjusting function
- - Tapping/chamfering unit
- - Auto nozzle changer (3 nozzles magazine capacity)
- - Programmable focus positioning (servo focus)
Qualitative Machine Benefits:
- - Regularly maintained and serviced by mazak.
- - Machine will be cleaned and checked by mazak technician before.
- - This a showroom machine
- - The machine will be delivered certified by mazak

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
