- ➤ Used Mazak QuickTurn Smooth 200MSY | Turn-Mill Centre

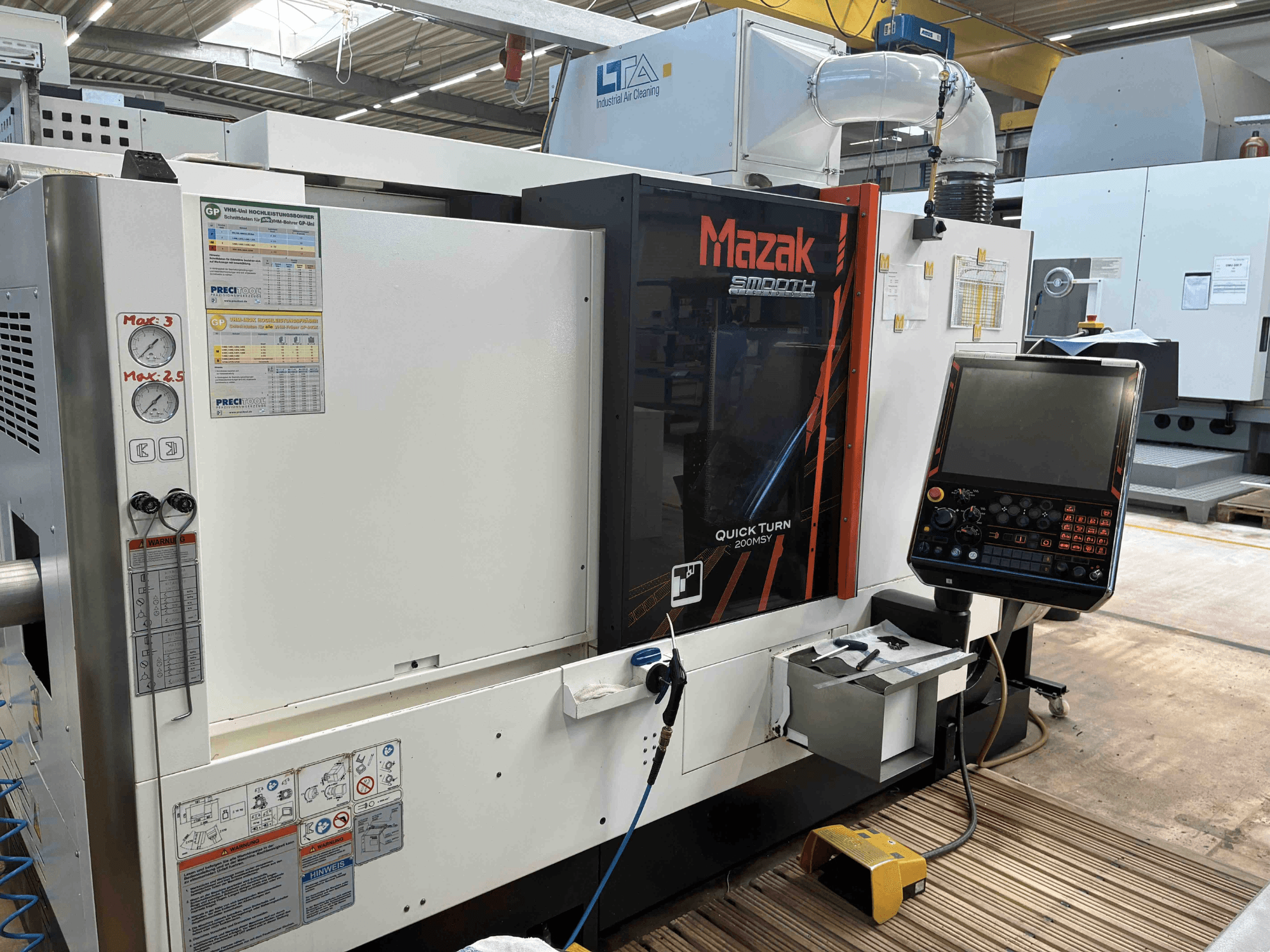

This 5-axis Mazak QuickTurn Smooth 200MSY was manufactured in 2018. It features a robust main spindle and sub spindle, along with live tooling capabilities. The machine has a weight of 5600 kg, ensuring stability during operation. If you are looking to get high-quality turning and milling capabilities, consider the Mazak QuickTurn Smooth 200MSY turn-mill centre we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2018
- MODEL: Quick Turn Smooth 200MSY
- production hours: 4178
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: MAZATROL
Technical Information - Mazak Quick Turn Smooth 200MSY
Control Unit
- Control Brand: MAZATROL
- Control Model: Smooth Control
Dimensions
- Machine Weight: 5600 kg
Movement
- Number of Axes: 5
- X-axis Travel: 230 mm
- Z-axis Travel: 605 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
Additional Information
Control: Mazatrol Smooth Control
Machine Weight: 5600 kg
Main Power Supply: 3AC 400V 50/60Hz
Control Circuit Voltage: AC 100V / DC 24V
Rated Capacity: 47.4 kVA
Main Motor Current: Max. 65 A
Pure Cutting Hours: 4178 h
Main Spindle: Yes
Sub Spindle: Yes
Y-Axis: Yes
Live Tooling: Yes
Machine Type: Turn-Mill Centre
including tools
The machine was serviced by the manufacturer on February 17, 2026, and has not been in operation since.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
