- ➤ Used Mazak QUICK TURN NEXUS 200 MS | Horizontal Lathe

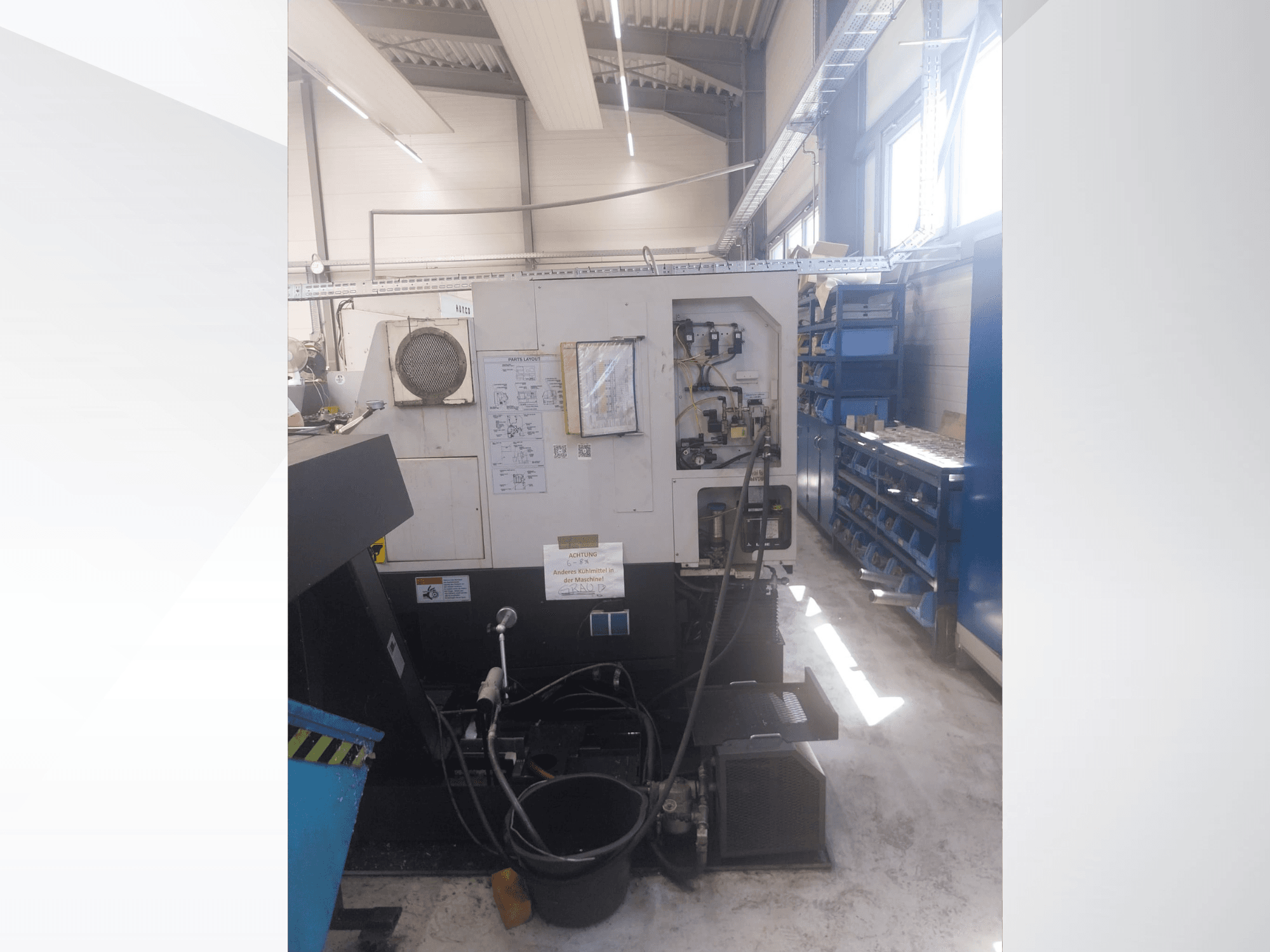

This 4-axis Mazak QUICK TURN NEXUS 200 MS was manufactured in 2004. It features a maximum turning diameter of 380 mm and a maximum swing diameter of 675 mm. The machine is equipped with a powerful main spindle that reaches speeds of up to 5,000 rpm and a robust tool turret with 12 positions. If you are looking to get high-quality turning capabilities, consider the Mazak QUICK TURN NEXUS 200 MS machine we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2004
- MODEL: QUICK TURN NEXUS 200 MS
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: MAZATROL
Technical Information - Mazak QUICK TURN NEXUS 200 MS
Control Unit
- Control Brand: MAZATROL
- Control Model: 640T Nexus
Dimensions
- Machine Height: 1840 mm
- Machine Length: 2353 mm
- Machine Weight: 5000 kg
- Machine Width: 1780 mm
Movement
- Number of Axes: 4
- X-axis Travel: 230 mm
- Z-axis Travel: 575 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 22 kW
- Spindle Speed: 5000 RPM
Additional Information
- Work Area:
- Max. Swing Diameter: 675 mm
- Max. Swing Diameter over Cross Slide: 276 mm
- Max. Turning Diameter: 380 mm
- Max. Bar Work Capacity: 65 mm
- Main Spindle:
- Main Drive Power (30 min rating / 100% continuous): 26 kW / 22 kW (Integrated Spindle Motor)
- Max. Torque: 350 Nm
- Spindle Nose: A2-6"
- Spindle Bore: 76 mm
- Chuck Diameter: 210 mm
- Second Spindle (Sub-spindle):
- Drive Power (30 min rating / 100% continuous): 10 kW / 7.5 kW
- Max. Torque: 75 Nm
- Speed Range: 35 - 6,000 rpm
- Indexing: 0.001°
- Chuck Diameter: 169 mm
- Tool Turret:
- Tool Positions: 12
- Tool Mounting Type: VDI-like
- Turning Tool Shank Height: 25x25x150 mm
- U-Drill Diameter: 20 mm
- Boring Bar Shank Diameter: 40 mm
- Indexing Time: Approx. 0.2 s (1 step)
- Driven Tools (Live Tooling):
- Drive Power (10 min rating): 5.5 kW
- Speed Range: 25 - 4,500 rpm
- Max. Torque: 35 Nm
- Travel Ranges & Speeds:
- X-Axis Travel: 230 mm
- Z-Axis Travel: 575 mm
- Rapid Traverse Rate X-Axis: 30 m/min
- Rapid Traverse Rate Z-Axis: 33 m/min
- Tool Setting / Monitoring:
- Automatic Tool Breakage Recognition
- Automatic Tool Wear Compensation Adjustment Range: 9,999 mm
- Tool Presetter: Tool Eye
- Coolant & Pneumatics:
- Coolant Tank Capacity: 160 l
- Pneumatic Pressure: 5 bar, 100 l/min
- Machine Dimensions & Weight:
- Connected Load: 46.2 kVA
- Operating Voltage: 400 V / 50 Hz
- Required Floor Space: 1.740 x 1.780 mm (Base layout space)
- Transport Dimensions (QTN 200 M - U 500): 2,353 mm (L) x 1,780 mm (B) x 1,840 mm (H)
- Machine Weight: Approx. 4,900 kg - 5,100 kg
included: LNS QUICK LOAD SERVO 3 (2004)
- Type: Automatic Short Bar Loader
- Bar Diameter Range: 6 mm to 120 mm
- Bar Length Range: 100 mm to 1600 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
