- MAZAK INTEGREX J-200 S Lathe

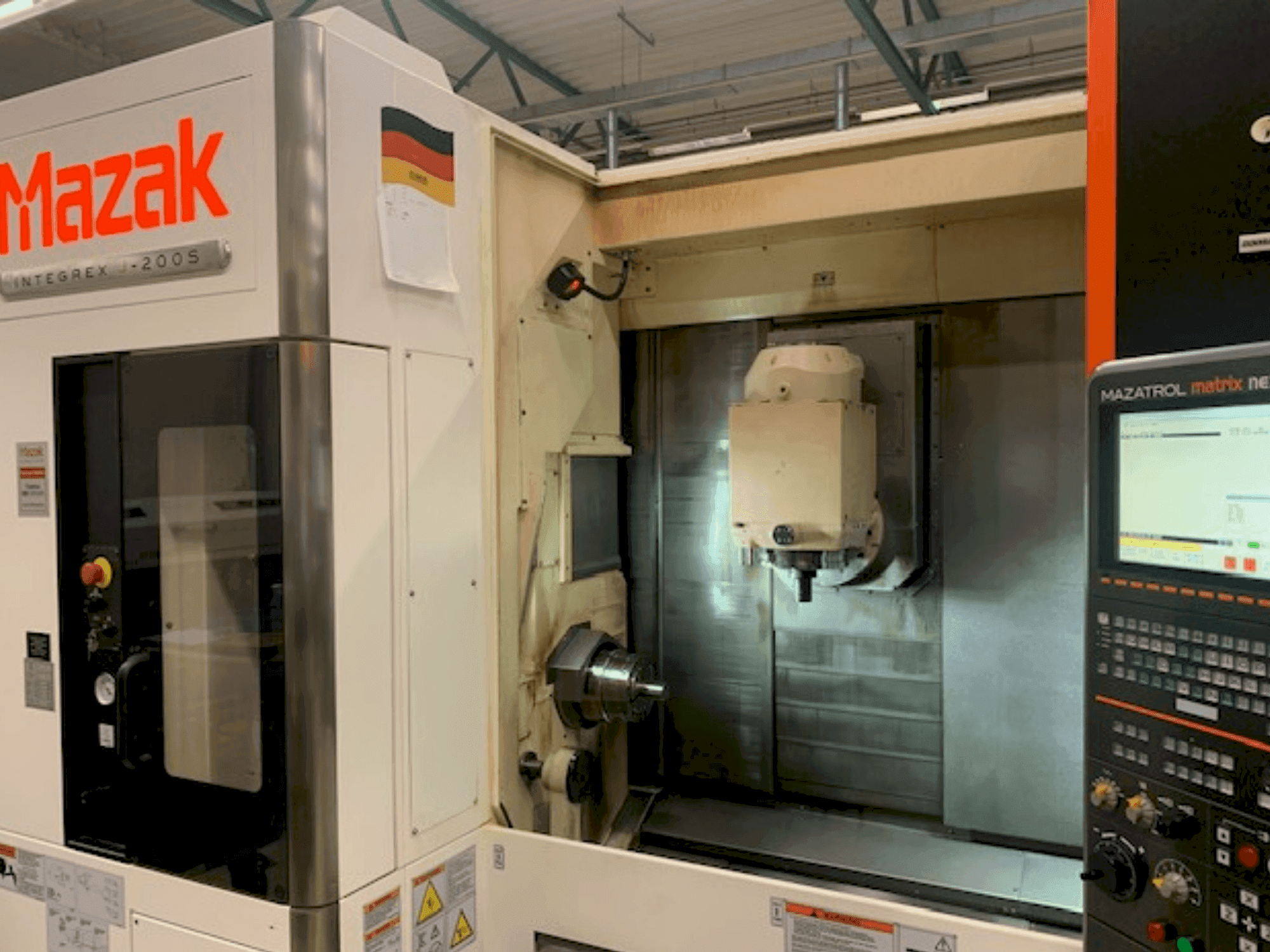

This MAZAK INTEGREX J-200 S Lathe was manufactured in the year 2016 in Japan. It is equipped with a Mazatrol Matrix Nexus 2 control unit and has 6 axis. The machine has a spindle speed of 12000 rpm. See original purchase confirmation for more technical details as PDF (German) attached.
Overview
- brand: Mazak
- year: 2016
- MODEL: INTEGREX J-200 S
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- availability: From December 2024
- control unit brand: Mazatrol
Technical Information - Mazak INTEGREX J-200 S
Control Unit
- Brand: Mazatrol
- Model: Matrix NeXUS 2
Main drive
- Spindle speed range: 12000 1/MIN
- Number of axis: 6
Movement
- X-AXIS Movement: 450 mm
- Y-AXIS Movement: 200 mm
- Z-AXIS Movement: 1119 mm
- W-Axis Movement: 1436 mm
- B-AXIS Movement: -30° to 220° MM
Tools
- Slots in storage: 20
- Max weight: 5 kg
- Max tool diameter: 125 mm
- Max tool length: 210mm
Additional equipment
- - Tool magazine for 36 Capto tools (no tool holders included)
- - Preparation for bar feed
- - Automatic parts catcher (D:65 X L: 120 X2.5Kg) incl. ejector
- - High pressure cooling 15 bar incl. simultaneous flood cooling 5 bar
- - Preparation for chip conveyor
- - Ejection side
- - Preparation for Mazak Monitoring System B OMP60 (optical)
Additional Information
- Technical Machine Benefits:
- - Irco bar feeder type ils-muk-7012
- - 3d volume model
- - Application technology at the customer's site, duration: 1 day
- - Cylinder+ polar interpolation (eia)
- - Synchronized thread cutting on the milling spindle
- - Working area max. Swing diameter 530 mm
- - Swing diameter over cross slide 530 mm
- - Max. Face diameter 500 mm
- - Max. Turning length' 910 mm
- - Min. Speed 35 min-1
- Qualitative Machine Benefits:
- - Acceleration and deceleration? 3,7 s
- - Spindle nose a2-6"
- - Spindle bore 76 mm
- - Counter spindle max. Speed 5,000 min-'
- - [min. Speed single spindle with atc
- - Milling spindle single spindle with atc
- - Type of turret hsk63a
- - Tool holder feed rate 0,5 s
- - Max. Milling spindle speed 12,000 min
- - Rapid traverse x-axis 40,000 mm/min, rapid traverse z-axis 40,000 mm/min, rapid traverse y-axis 40,000 mm/min
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
