Mazak - Integrex i-300ST-1500UCZ-TUR-MAZ-2012-00001

Name: Mazak Integrex i-300ST-1500U
Brand: Mazak
SKU: CZ-TUR-MAZ-2012-00001
Price: 17550500 INR
Availability: InStock

Rs. 17,550,500

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Integrex i-300ST-1500U | Lathe For Sale

Show in original language

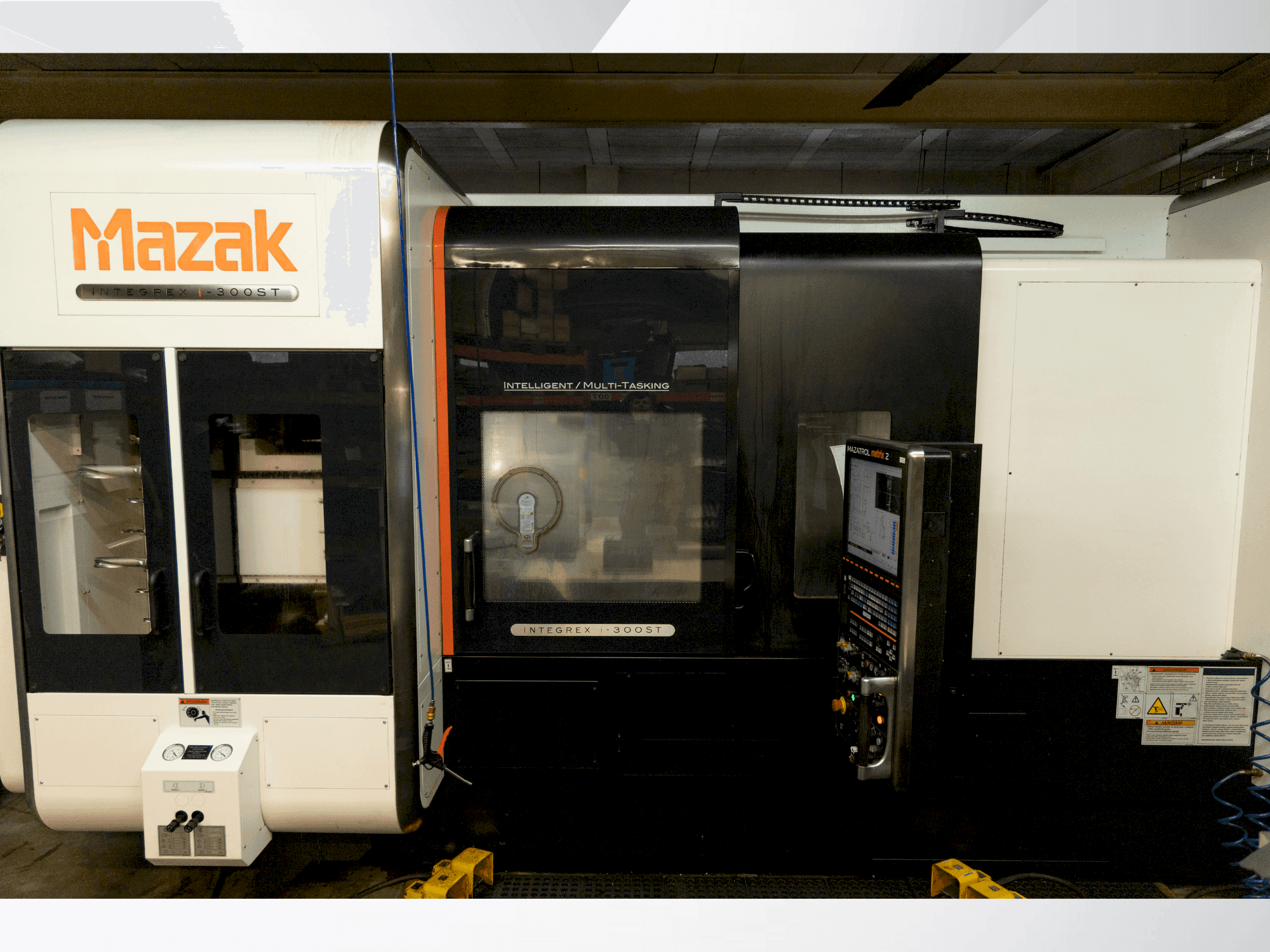

This 7-axis Mazak Integrex i-300ST-1500U lathe was manufactured in 2012. It features a main spindle bar passage of 80mm, a tool changer with a capacity of 72 tools, and a milling spindle speed of 12,000 rpm. Additional highlights include a high-pressure cooling system at 14 bar, a chip conveyor, and a mist filter unit. Ideal for prototype production, the machine includes tooling, chucks, and jaws. For more information about this lathe, please reach out to us.

Overview

brand: Mazak
year: 2012
MODEL: Integrex i-300ST-1500U
production hours: 17547
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre

Technical Information - Mazak Integrex i-300ST-1500U

Main drive

Spindle speed range: 4000 1/MIN
Tool taper: HSK-63
Number of axis: 7

Movement

X-AXIS Movement: 615 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 1585 mm
V-Axis Movement: 230 mm
W-Axis Movement: 1539 mm
AXIS 1 Movement: 30-210 °

Tools

Slots in storage: 72

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Mist filter unit
High pressure cooling (14 bar)
Work space rinse cleaning (2.7 bar/60 l)
RMP600-Radio/Radio probe
Preparation for 70 bar cooling through spindle
Programmable overload detector
C-axis on second spindle
MO321 - Gear milling without tool
TE810 - Preparation for Multi and Flash tools
NO117 - Tool edge control for 5-axis continuous / Axes movements: X / Y / Z / X2 / Z2 615 / 250 / 1585 / 230 / 1388 mm / W 1539 mm / C-axis indexing 0.0001°

Machine Benefits

Qualitative Machine Benefits

Comprehensive equipment for diverse machining operations (turning, milling, drilling, threading, etc. )
Used exclusively with mazak service technicians
Lower turret number of tools 9

Technical Machine Benefits

Main spindle bar passage: 80mm
Milling head (b axis) speed: 12. 000rpm
No123 - tool radius correction for 5-axis continuous control
No137 - eia dynamic compensation i
No092 - synchronous threading for driven tool
Eia/iso continuous 5-axis control
Extensive tool capacity with 72-tool magazine (hsk-63 holders)
Advanced 5-axis continuous control with various compensation and correction features
Max. Machining diameter 658 mm / max. Machining length 1519 mm / max. Workpiece weight 450 (1st spindle) / 400 (2nd spindle) kg
Main spindle motor power 30 (30 min. ) / 22 (continuous) kw / subspindle motor power 26 (30 min. ) / 22 (continuous) kw /

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
