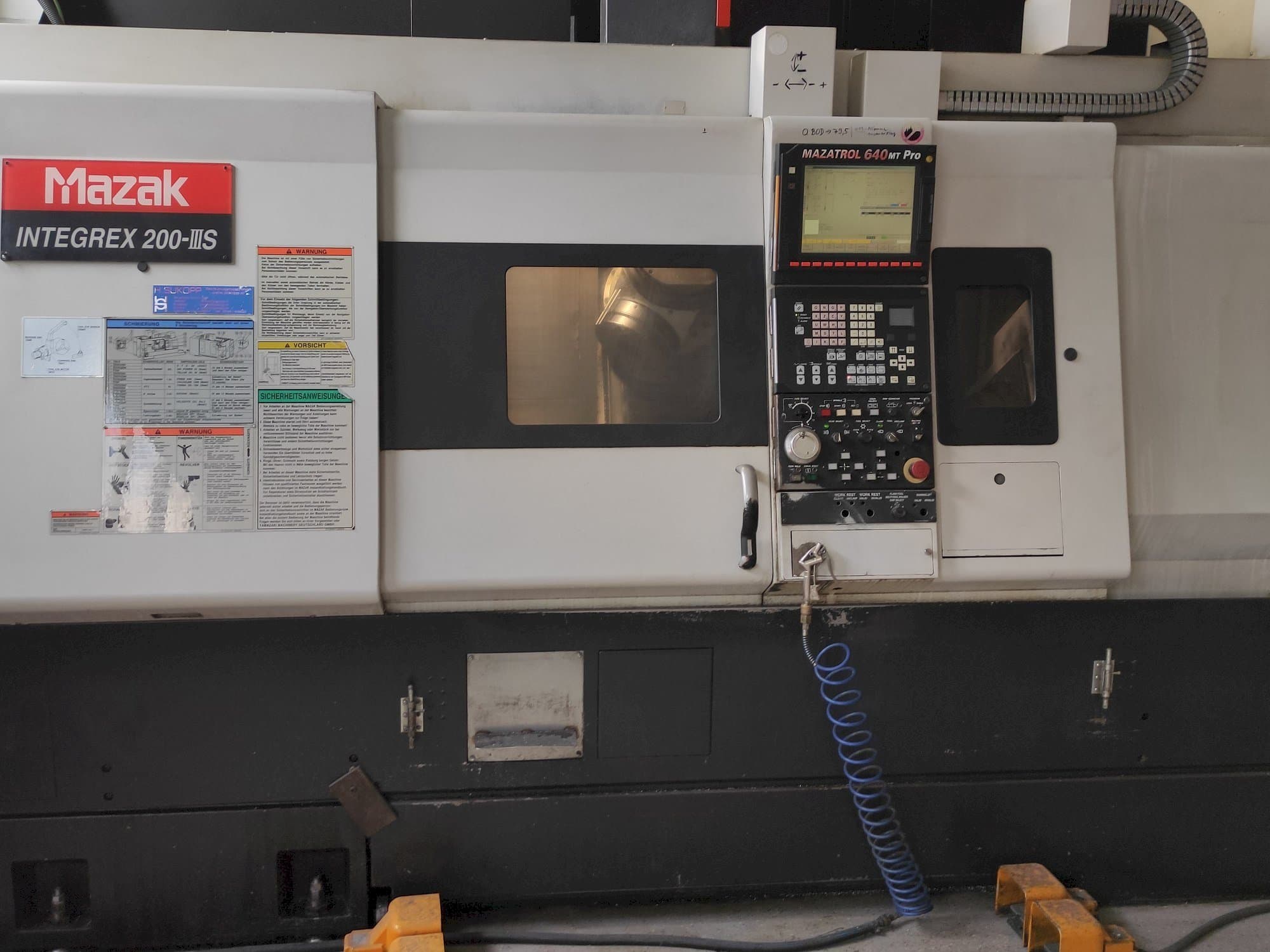

Front view of Mazak Integrex 200-III S machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 200-III S

Photo Gallery

Mazak - Integrex 200-III SCZ-TUR-MAZ-2004-00002

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Integrex 200-III S Lathe

Show in original language

This Mazak Integrex 200-III S Lathe was built in Japan in the year 2004. It is equipped with a Mazak MAZATROL 640MT Pro control unit. This machine has 2 spindles, they can work with a spindle speed up to 5000 rpm. It is in very good condition, regularly maintained.

Overview

brand: Mazak
year: 2004
MODEL: Integrex 200-III S
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Integrex 200-III S

General Data

Measurements width: 3820 mm
Measurements depth: 2060 mm
Measurements height: 2597 mm
Machine weight: 9600 kg

Control Unit

Model: Mazatrol 640MT Pro
Brand: MAZATROL

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN
Spindle motor power: 15/22 kW (100%/30 min)
Number of axis: 6

Workpiece

Workpiece drm: 580 mm
Workpiece x: 160 mm
Workpiece y: 1045 mm

Tools

Slots in storage: 40
Max weight: 10 kg
Max tool diameter: 90/125 mm
Max tool length: 300 mm
Type of tool holder: Capto C6

Media

Power consumption: 78 kVA

Additional Information

Machine history

End product: Mould
Industries: Die & mould

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter 660 mm
- - Max turning length 1016 mm
- - B-axis swivel head range 225 deg.
- - C-axis 360 deg.
- - Main spindle bore 76 mm
- - Milling spindle speed 12. 000 rpm
- - Sub-spindle motor 15/18. 5 kw (100%/30 min)
- - Rapid traverse x,z 38 m/min
- - Internal cooling, tool eye, 8'' 3 jaw chucks both spindles
Qualitative Machine Benefits:
- - Very good condition
- - Regularly maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
