Mazak Integrex 100 II SY
Mazak - Integrex 100 II SY
2003
Rs. 5,035,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Mazak Integrex 100 II SY lathe
Show in original language

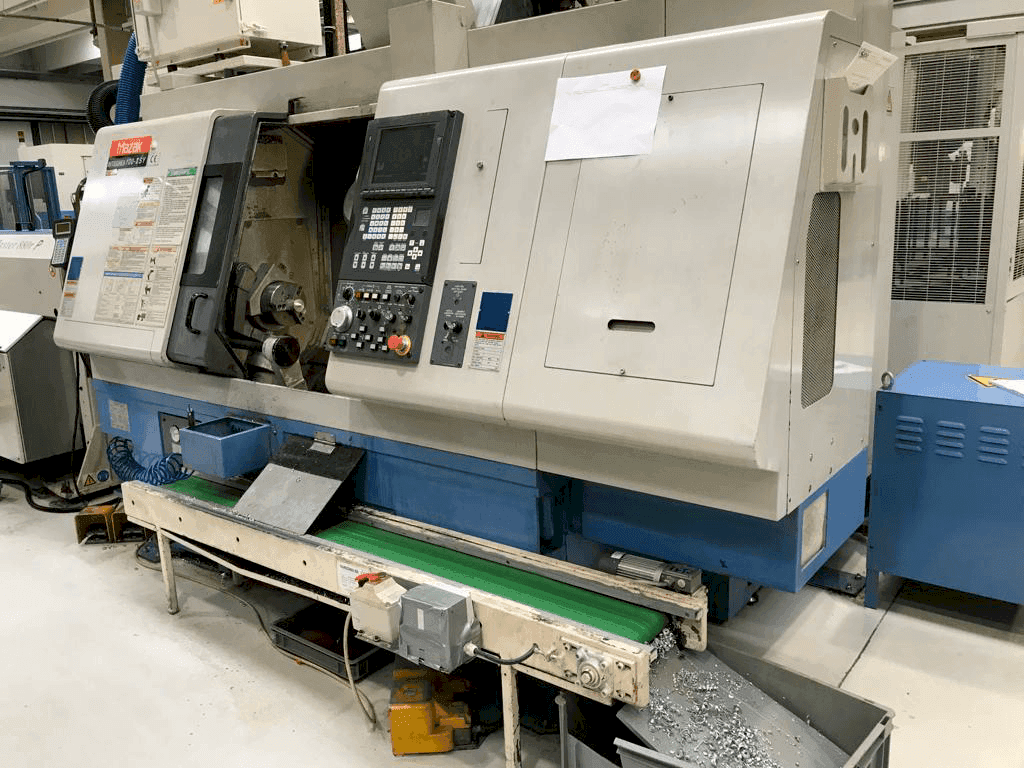

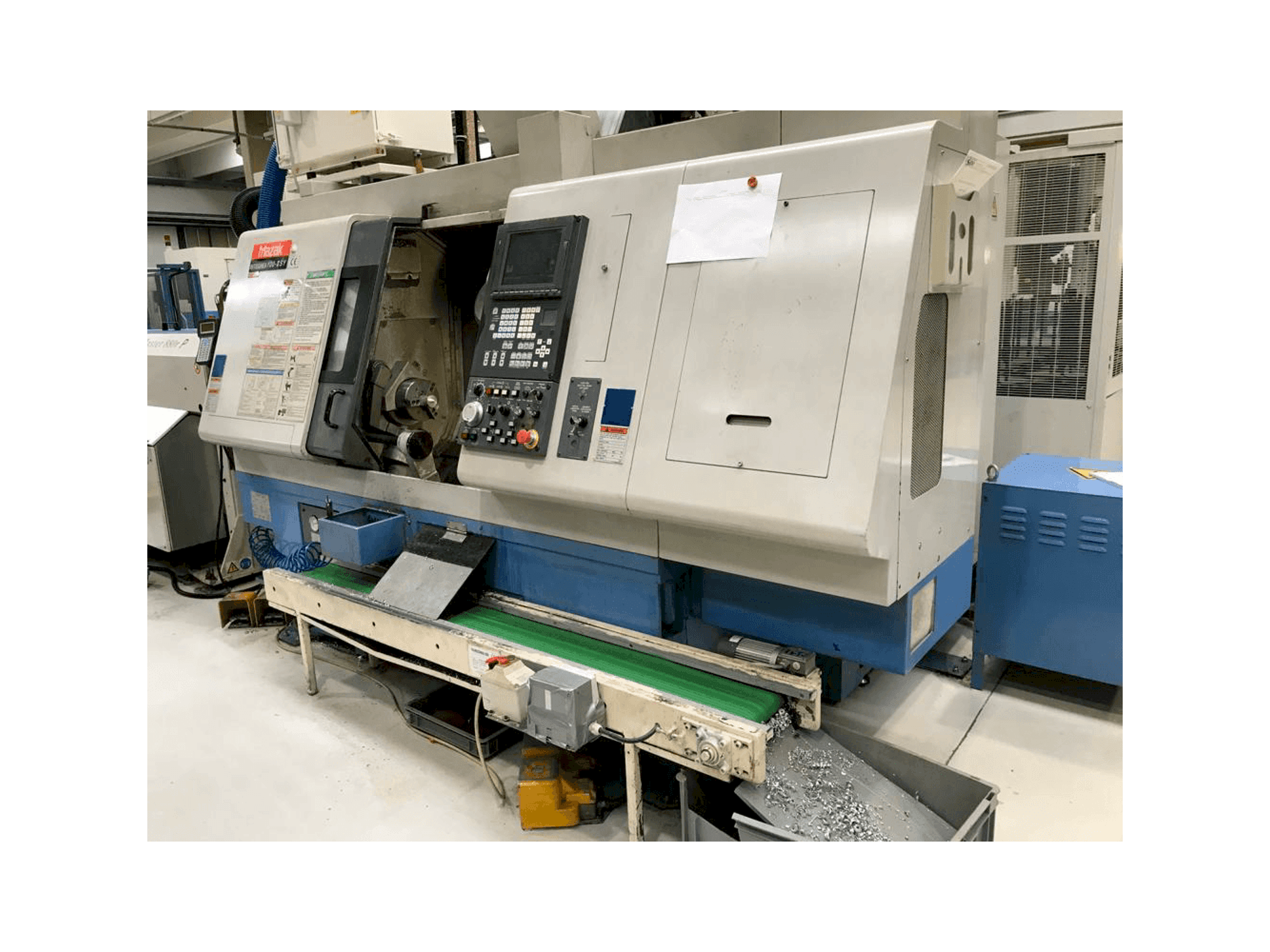

This Mazak Integrex 100 II SY lathe was made in the year 2003 in Japan. It is equipped with a Mazatrol 640 M control unit. The machine has a spindle speed of 6000 rpm.
Overview
- brand: Mazak
- year: 2003
- MODEL: Integrex 100 II SY
- application type: Turning
- Location: Italy
- machine type: Lathe
- availability: Immediately
- control unit brand: MAZATROL
- GINDUMAC ID: IT-TUR-MAZ-2003-00002
Technical Information
General Data
- Measurements width: 3100 mm
- Measurements depth: 2080 mm
- Measurements height: 2320 mm
- Machine weight: 4900 kg
Control Unit
- Brand: MAZATROL
- Model: 640 M
Main drive
- Spindle speed range: 6000 1/MIN
- Spindle motor power: 7.5-5.5 KW
Movement
- X-AXIS Movement: 360 mm
- X-AXIS Rapid traverse: 30 m/MIN
- Y-AXIS Movement: 120 mm
- Y-AXIS Rapid traverse: 26 M/MIN
- Z-AXIS Movement: 785 mm
- Z-AXIS Rapid traverse: 33 M/MIN
- C-AXIS Movement: 0.001° MM
Media
- Power consumption: 9 KVA
Additional Information
- Technical Machine Benefits:
- - Self centering right - left
- - Rear exhaust chip evacuator
- - Preparation from bar
- - Workpiece unloading arm
- - Conveyor belt for pieces
- - Atc 40 places
- - Capto 6 milling head attachment
- - Dia. Max turnable 290 mm
- - Turning length 755 mm
- - Spindle attachment mazak capto c6
- Qualitative Machine Benefits:
- - Spindle interior 61 mm
- - Counter spindle 6,000 rpm
- - Counter spindle resolution 0. 001°
- - Milling spindle rpm 15,000 rpm, milling spindle power 22 kw
- - B-axis positioning 0. 001°, b-axis continuous
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
