- MAZAK HCN-8800 Horizontal Machining centre

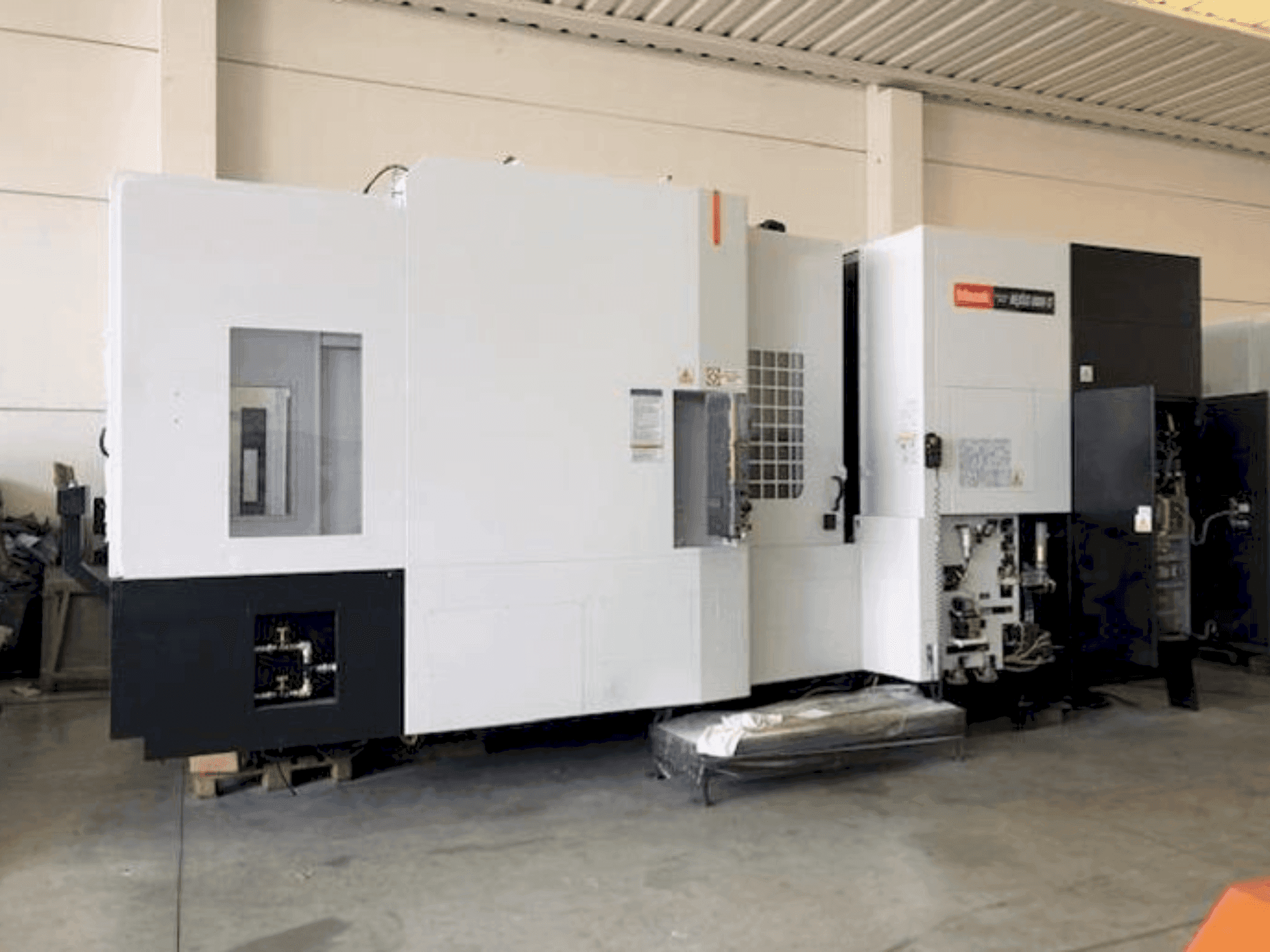

This MAZAK HCN-8800 Horizontal Machining centre was manufactured in the year 2008 in Japan. It is equipped with a MATRIX 1 control unit. The machine disposes of a 4 axis and a spindle. Tool magazin with a capacity of 120 tools.
Overview
- brand: Mazak
- year: 2008
- MODEL: HCN-8800
- application type: Milling
- Location: Italy
- machine type: Machining centers (horizontal)
- availability: Sold
- control unit brand: MATRIX
Technical Information - Mazak HCN-8800
General Data
- Measurements width: 3881 mm
- Measurements depth: 7966 mm
- Measurements height: 3726 mm
- Machine weight: 31300 kg
Control Unit
- Brand: MATRIX
- Model: 1
Main drive
- Number of axis: 4
Movement
- X-AXIS Movement: 1400 mm
- X-AXIS Rapid traverse: 60000
- Y-AXIS Movement: 1200 mm
- Y-AXIS Rapid traverse: 60000
- Z-AXIS Movement: 1325 mm
- Z-AXIS Rapid traverse: 60000
Tools
- Slots in storage: 120
- Max weight: 30 kg
- Max tool diameter: 250 MM
- Max tool length: 630 MM
Media
- Cooling pressure: 50 BAR
Additional Information
- Technical Machine Benefits:
- - Board length (board) 800 // board width (board) 800
- - Distance between table top and spindle nose (table) 100-1425
- - Max. Dimensions piece (length x width x height) (table) d. 1450 x h. 1450
- - Table surface (spindle) tapped holes
- - Max. Weight workpiece (mandrel) 2200
- - Spindle (chuck) 8000 / spindle attachment (chuck) iso 50
- - Torque (cont. / 10 min) (spindle) 1218 nm
- - Tool selection method (atc magazine) fixed // tool change time (atc magazine) 5 sec.
- - Cooling tank (coolant) 500l
- - Table 800x800 4th axis continuous
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
