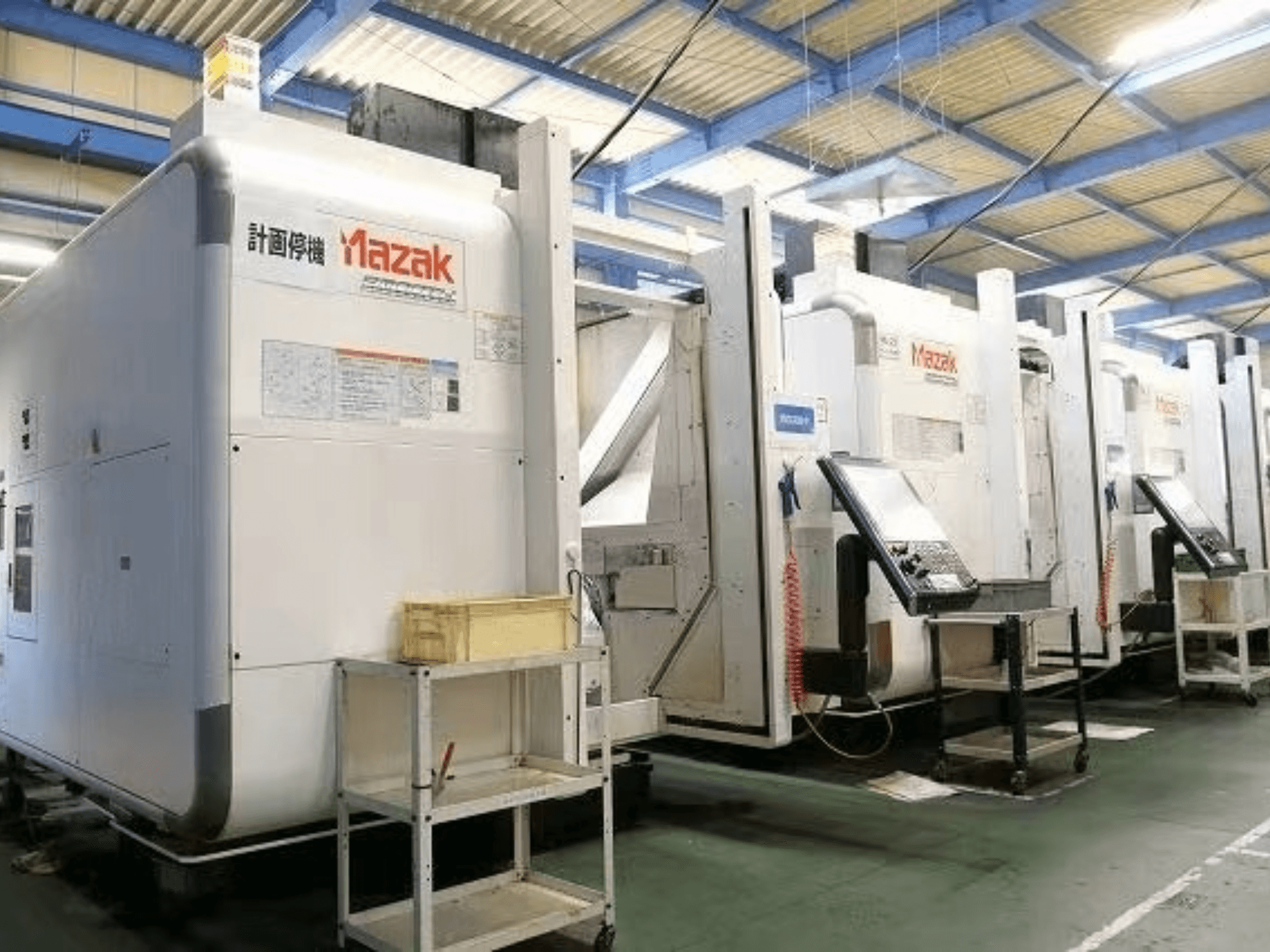

This 5-axis Mazak Variaxis i-500 was manufactured in 2019, featuring a spindle speed of up to 12,000 rpm and a tool magazine capacity of 30 tools. It supports workpieces up to Ø500 mm by 350 mm and has a table load capacity of 300 kg. Consider the opportunity to buy this Mazak Variaxis i-500 universal machining centre. Contact us for more information about this machine.
Overview
- brand: Mazak
- year: 2019
- MODEL: Variaxis i-500
- application type: Milling
- Location: Japan
- machine type: Universal Machining Centre
Technical Information - Mazak Variaxis i-500
Dimensions
- Table Load: 300 kg
Movement
- Number of Axes: 5
- X-axis Travel: 350 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Speed: 12000 RPM
Additional Information
Availability: 15 units
Maximum workpiece dimensions: Ø500 mm × 350 mm height
A-axis travel: −120° to +30° (0.0001° resolution)
C-axis travel: ±360° (0.0001° resolution)
Distance spindle–table top (horizontal): 50–560 mm
Distance spindle–table center (vertical): 40–550 mm
Table dimensions: Ø500 mm × 400 mm width
Spindle taper: 724 taper No. 40
Spindle bearing inner diameter: 80 mm
Tool magazine capacity: 30 tools
Special specifications:
Oil station fixture mounting: 6.9 MPa, 4 ports, center 500 × 400 T-groove table; Ports: 1P Clamp, 1P Uncouple, 2P Seat
Front door with automatic opening/closing and area sensor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
