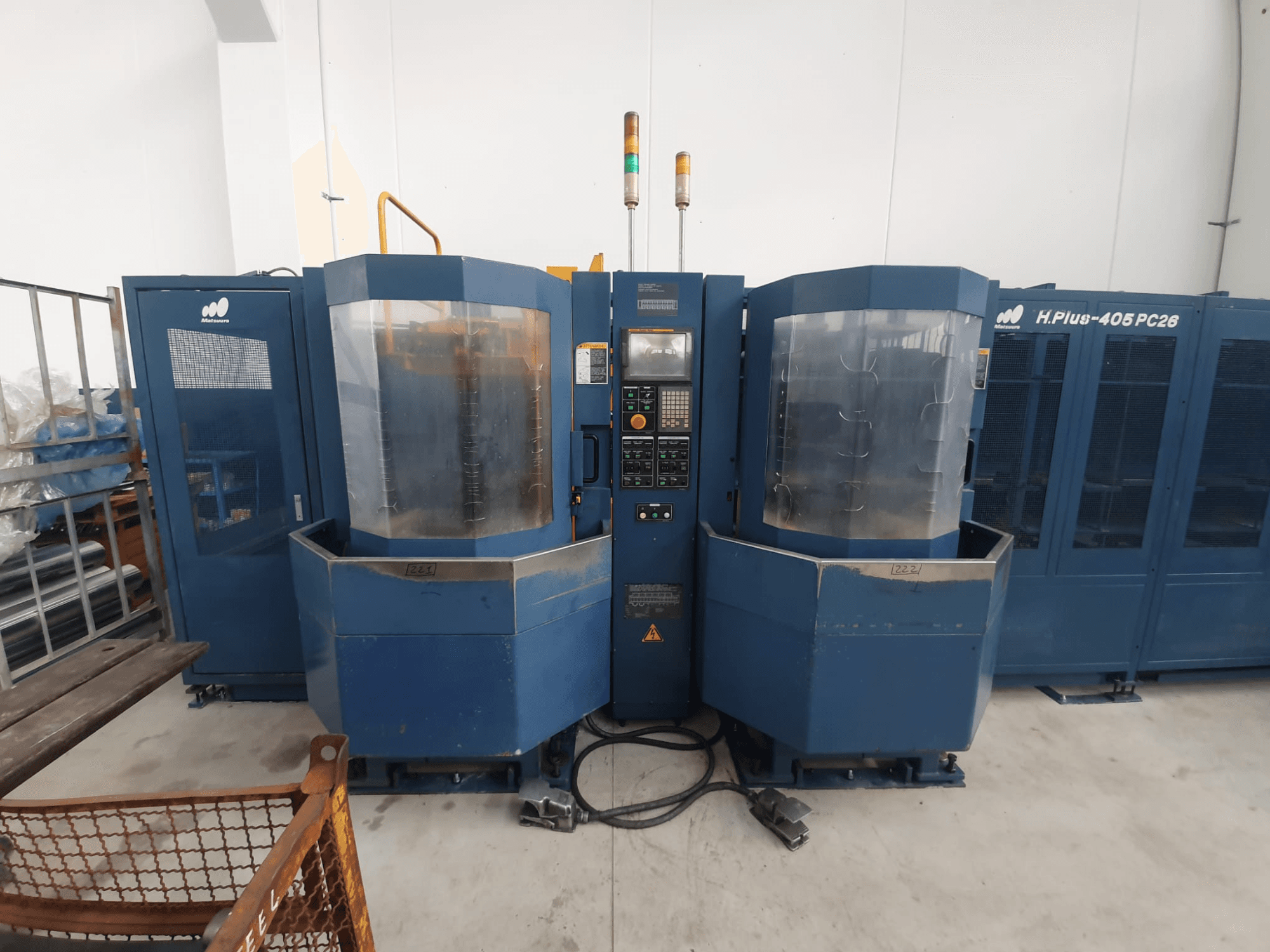

This 4-axis Matsuura H plus 405 was manufactured in 2004. It features a pallet size of 500 × 500 mm, X/Y/Z-axis travel of 600 mm each, and a B-axis indexed at 1°. The spindle operates at 12,000 rpm with an ISO 40 taper. It includes a high-capacity tool magazine for 240 tools and supports 24 pallets with dual loading/unloading stations. Consider the opportunity to buy this Matsuura H plus 405 horizontal machining centre. Contact us for more information.
Overview
- brand: Matsuura
- year: 2004
- MODEL: H plus 405
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
Technical Information - Matsuura H plus 405
Movement
- Number of Axes: 4
- X-axis Travel: 600 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 600 mm
Additional Information
Pallet size: 500 × 500 mm
Number of pallets: 24 pallets
Loading/unloading stations: 2
Tool magazine capacity: 240 tools
Probing system: Yes (touch probe)
Tool presetting: Yes
Tool breakage detection: Laser system
Spindle taper: ISO 40 (DIN 69871)
Spindle speed: 12000 rpm
High-pressure coolant: 50 bar with paper filter
Machine condition: Available for any test / under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
