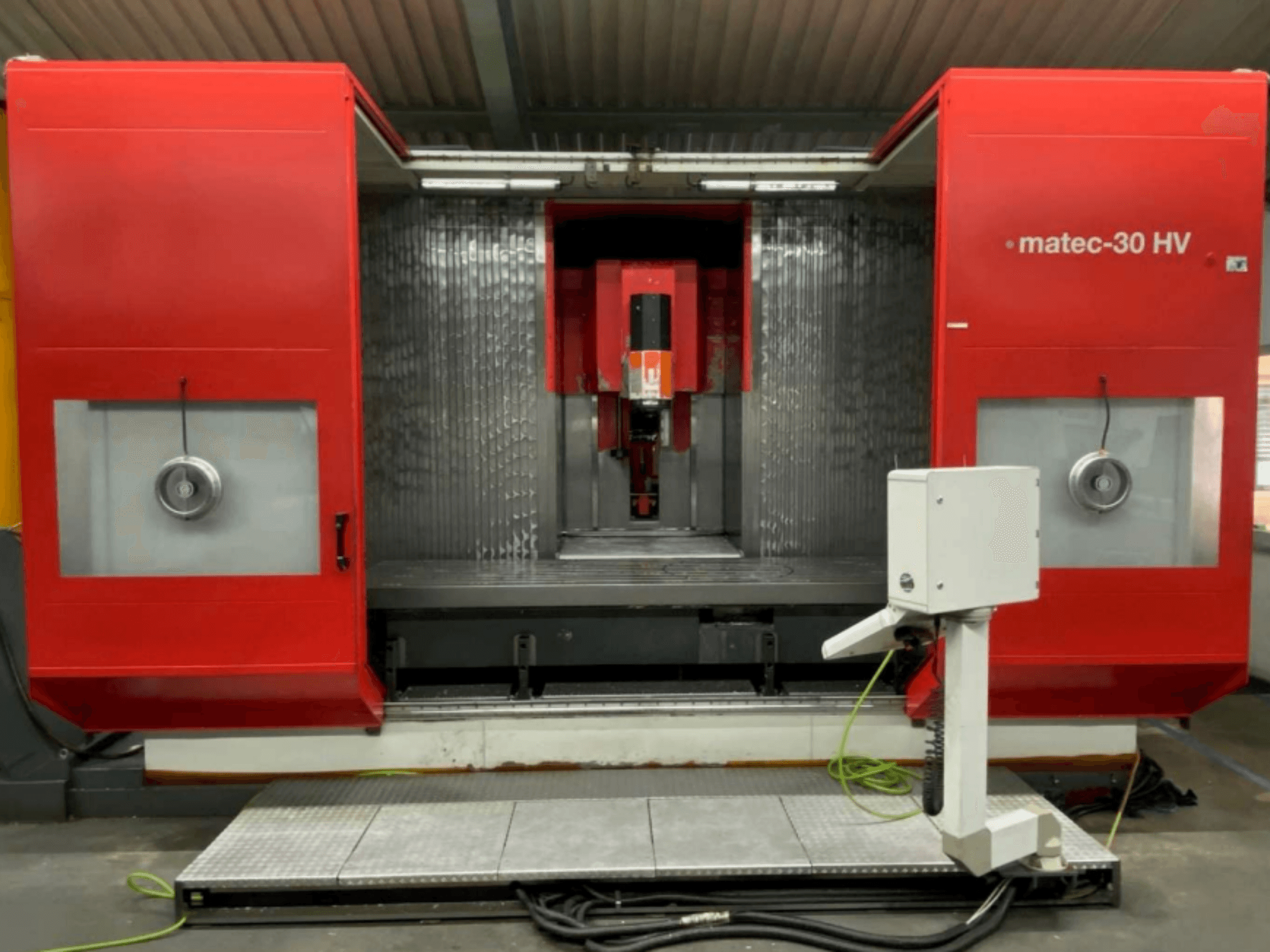

This 5-axis Matec HV 30 was manufactured in 2007, featuring a Heidenhain iTNC 530 control, a new spindle installed in August 2021 with 5,577 hours, and a spindle speed of 12,000 rpm SK40. It offers X-axis travel of 3000 mm, Y-axis travel of 1000 mm, and Z-axis travel of 1100 mm. Consider the opportunity to buy this Matec HV 30 vertical machining centre. Contact us for more information about this machine.
Overview
- brand: Matec
- year: 2007
- MODEL: HV 30
- production hours: 5577
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- Available from: 02/03/2026
- control unit brand: HEIDENHAIN
Technical Information - Matec HV 30
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Movement
- Number of Axes: 5
- X-axis Travel: 3000 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 1100 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Operating hours: 83,000 h
Total spindle hours: 32,800 h
New spindle installed: Aug 2021 → current spindle hours: 5,577 h
Material history: ~95% aluminum machining
B-axis: ±105°
C-axis: 360°
Handwheel
Tool magazine: 60 positions, SK40
Internal coolant supply
Additional equipment
Oil mist extraction
Renishaw probe
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
