MARLA S-CUT 3010

Photo Gallery

MARLA - S-CUT 3010PL-SHE-MAR-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

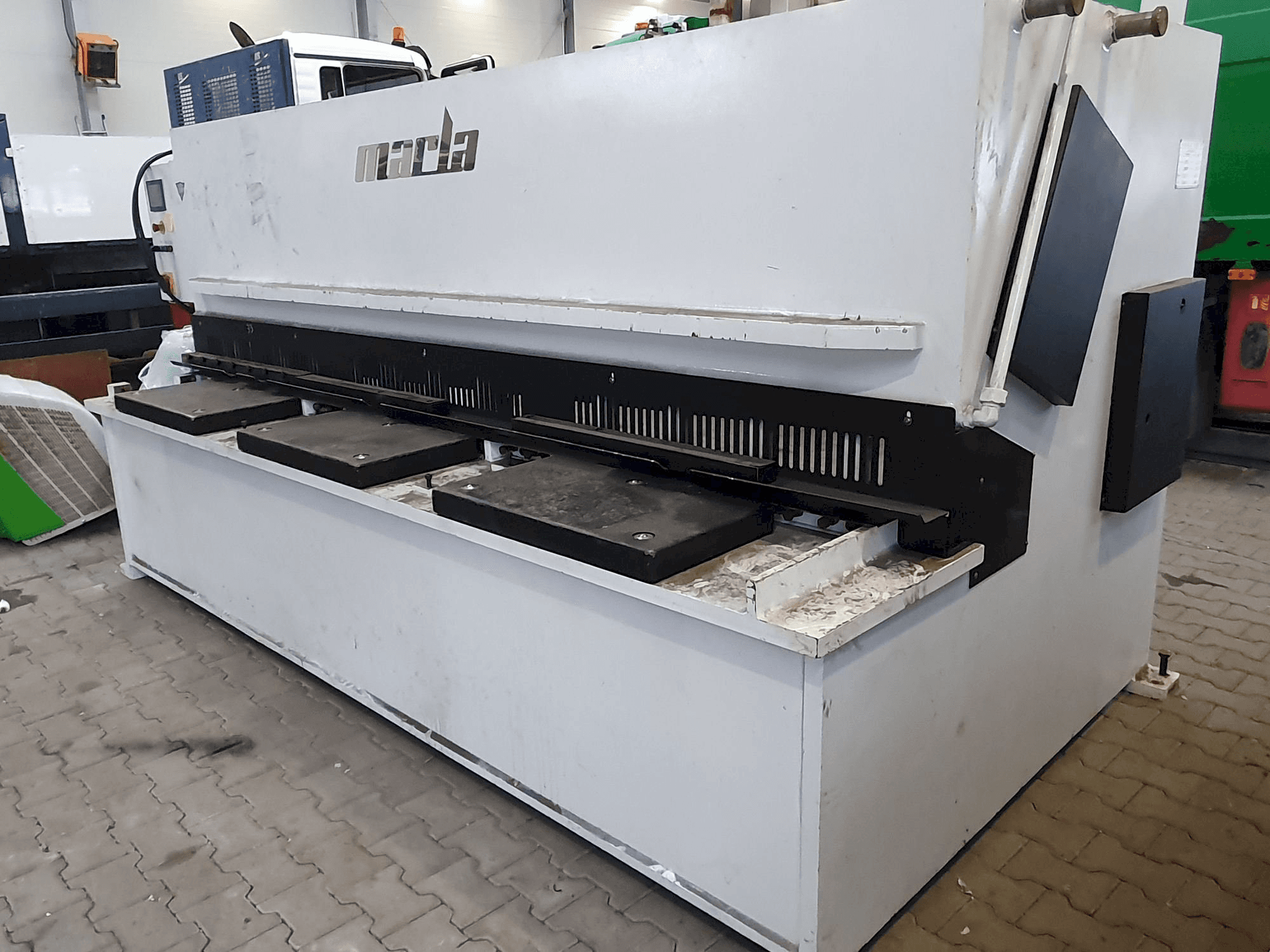

This MARLA S-CUT 3010 Shearing Machine was built in the year 2017 in Turkey. This machine can work with a cutting length 3100 mm and a Backgauge Force 1kW. It is operated through a CYBELEC CybTouch 6 control unit. This machine includes safety light curtains. It is in very good conditions and it is ready for tests.

Overview

brand: MARLA
year: 2017
MODEL: S-CUT 3010
application type: Shearing
Location: Poland
machine type: Hydraulic Shearing Machine
control unit brand: CYBELEC

Technical Information - MARLA S-CUT 3010

General Data

Measurements width: 4200 mm
Measurements depth: 3600 mm
Measurements height: 2100 mm
Machine weight: 9000 Kg

Control Unit

Model: CybTouch 6
Brand: CYBELEC

Main drive

Throat: 50 mm
Backgauge adjustment: 1000 mm
Main motor power: 11 kW
Stroke: 13 rpm

Table

Outer length: 3515 mm
Outer width: 580 mm
Height adjustment: 865 mm

Media

Main electronic connection: 400 V / 50 Hz
Oil tank: 200 Lt.

Additional Information

Additional equipment

Safety light curtains included

Machine Benefits

Qualitative Machine Benefits

Very good condition.
Not used at the moment but it could be prepared for test. Ready for tests.

Technical Machine Benefits

Cutting thickness: ms (450 n/mm²) – 10 mm, ss (700 n/mm²) – 6 mm
Cutting angle – 1 deg. 30’
Cutting length – 3100 mm
Holddown force – 22 tons
Back gauge force – 1kw
Back gauge speed – 200 mm/sec
Front armas – 2 psc
Holddowns – 16 pcs

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
