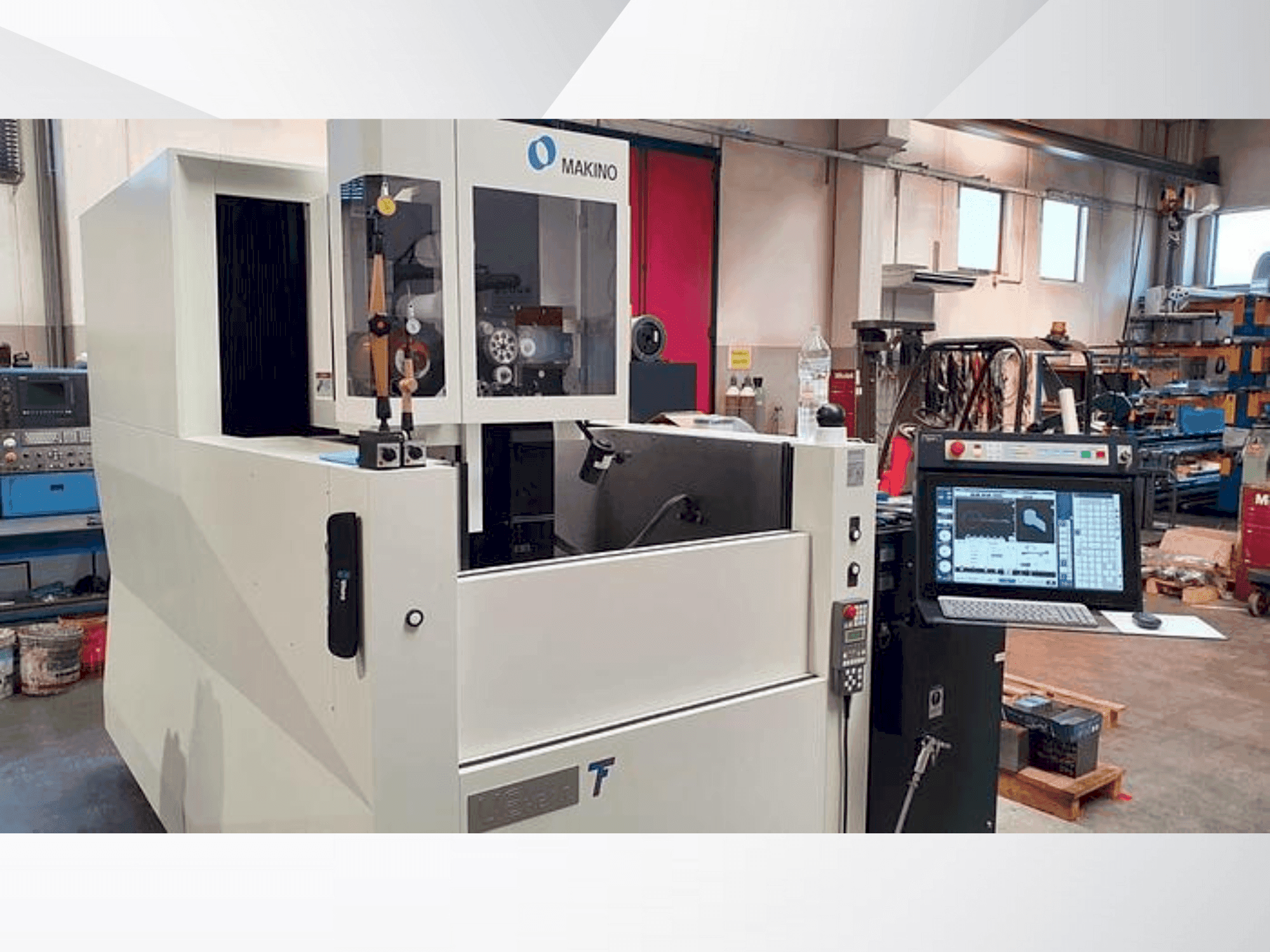

Front view of Makino U6 HEAT machine
Front view of Makino U6 HEAT machine

Makino - U6 HEATIT-EDM-MAK-2020-00001

Rs. 9,693,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Makino U6 HEAT wire EDM machine was manufactured in 2020. It features a standard 4-sided hardened worktable, a high-efficiency wire guide system, and dual high flow rate pumps. With a maximum workpiece size of 1000 x 800 x 400 mm and a weight capacity of 1500 kg, it's ideal for high-speed machining of low-flush applications. If you are looking to get high-quality EDM capabilities, consider the Makino U6 HEAT machine we have for sale. Contact us for more information.

Overview

  • brand: Makino
  • year: 2020
  • MODEL: U6 HEAT
  • application type: EDM
  • Location: Italy
  • machine type: Wire EDM Machine

Technical Information - Makino U6 HEAT

Main drive

  • Wire diameter: 0.100 mm, 0.150 mm, 0.200 mm, 0.250 mm, 0.300 mm ø
  • Number of axis: 5

Movement

  • X-AXIS Movement: 650 mm
  • Y-AXIS Movement: 450 mm
  • Z-AXIS Movement: 420 mm
  • V-Axis Movement: ±75 MM
  • U-Axis Movement: ±75 MM

Workpiece

  • Workpiece x: 1000 mm
  • Workpiece y: 800 mm
  • Workpiece z: 400 mm
  • Workpiece weight: 1500 kg

    Additional Information

    Additional equipment

    • Standard 4-sided hardened worktable
    • Wire guide system divided into V
    • High flow rate pumps (2 pumps)
    • 4-filter filtration system
    • Higher capacity cooling unit
    • Standard mouse and keyboard
    • H.E.A.T. technology for high-speed machining of low-flush applications

    Extra Information

    Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
