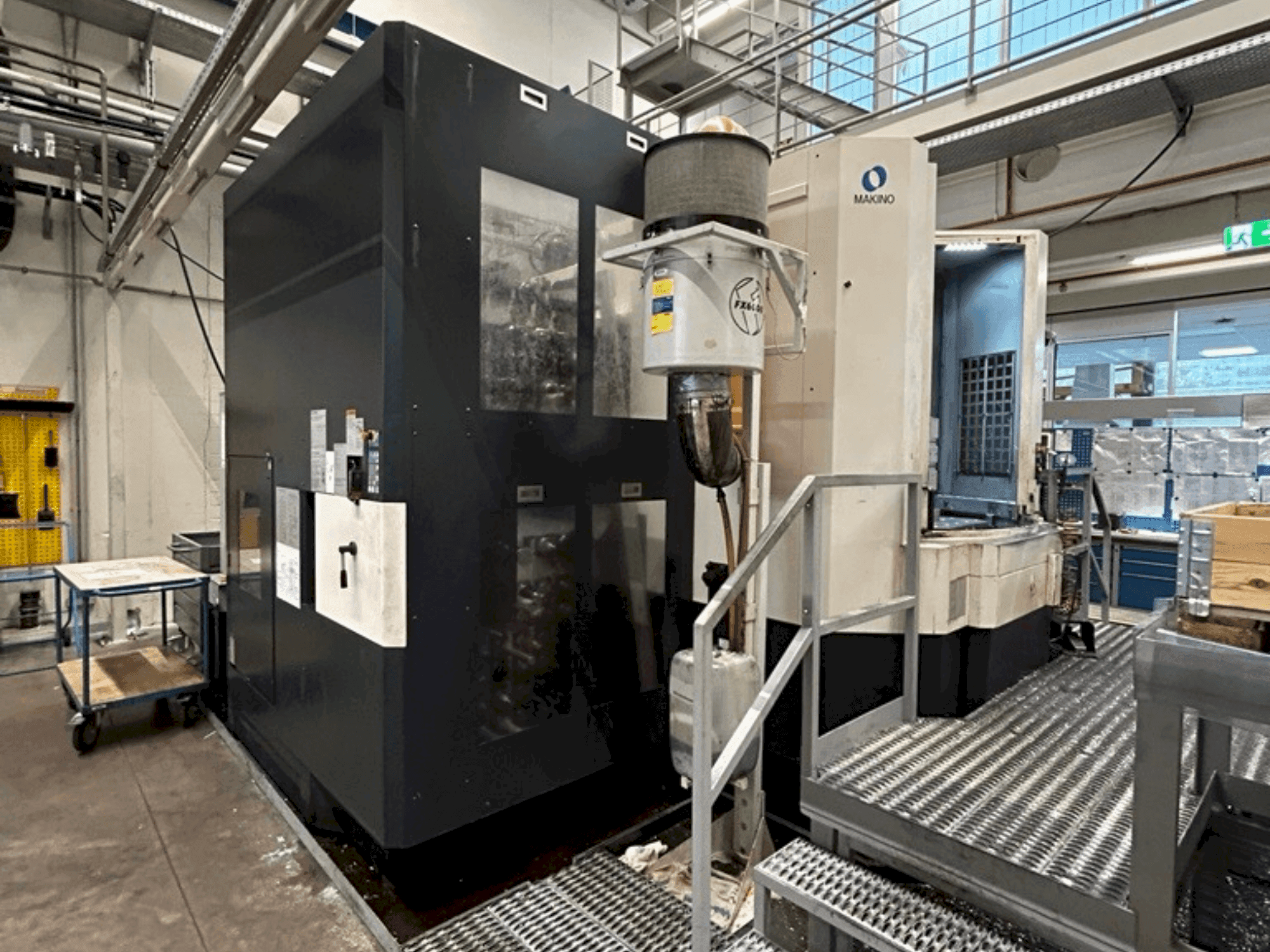

Makino - a81DE-MIL-MAK-2011-00001

B axis (pallet table): 360° continuous

Distance from pallet center

• To spindle center: 80–880 mm

• To spindle gauge line: 50–1070 mm

Pallet

• Size: 630 × 630 mm

• Surface: 24 × M16 tapped holes (optional: 22 mm T-slots*)

• Height to pallet surface: 1300 mm

• Max pallet load: 1200 kg (optional: 1320 kg*)

Workpiece capacity: Max Ø1000 × 1300 mm (diameter × height)

Indexing

• Index angle unit: 1° (360 positions)

• Indexing time (90°/180°): 1.9/2.7 s (optional: 1.6/2.3 s*)

Spindle

• Torque (25% ED/continuous): 488/304 Nm

• Accel time to 10,000 rpm: 3.8/1.4 s

• Lubrication/Cooling: Oil-air / jacket

Feedrates

• Rapid: 50,000 mm/min

• Cutting: 1–50,000 mm/min

Automatic Tool Changer (ATC)

• Tool storage capacity: 40 or 60 tools

• Max tool moment: 45 Nm (only with 97/137/186/242/300-tool magazines)

• Tool change time (tool-to-tool / chip-to-chip, MAS): 1.7 / 4.2 s

Support points: 3
