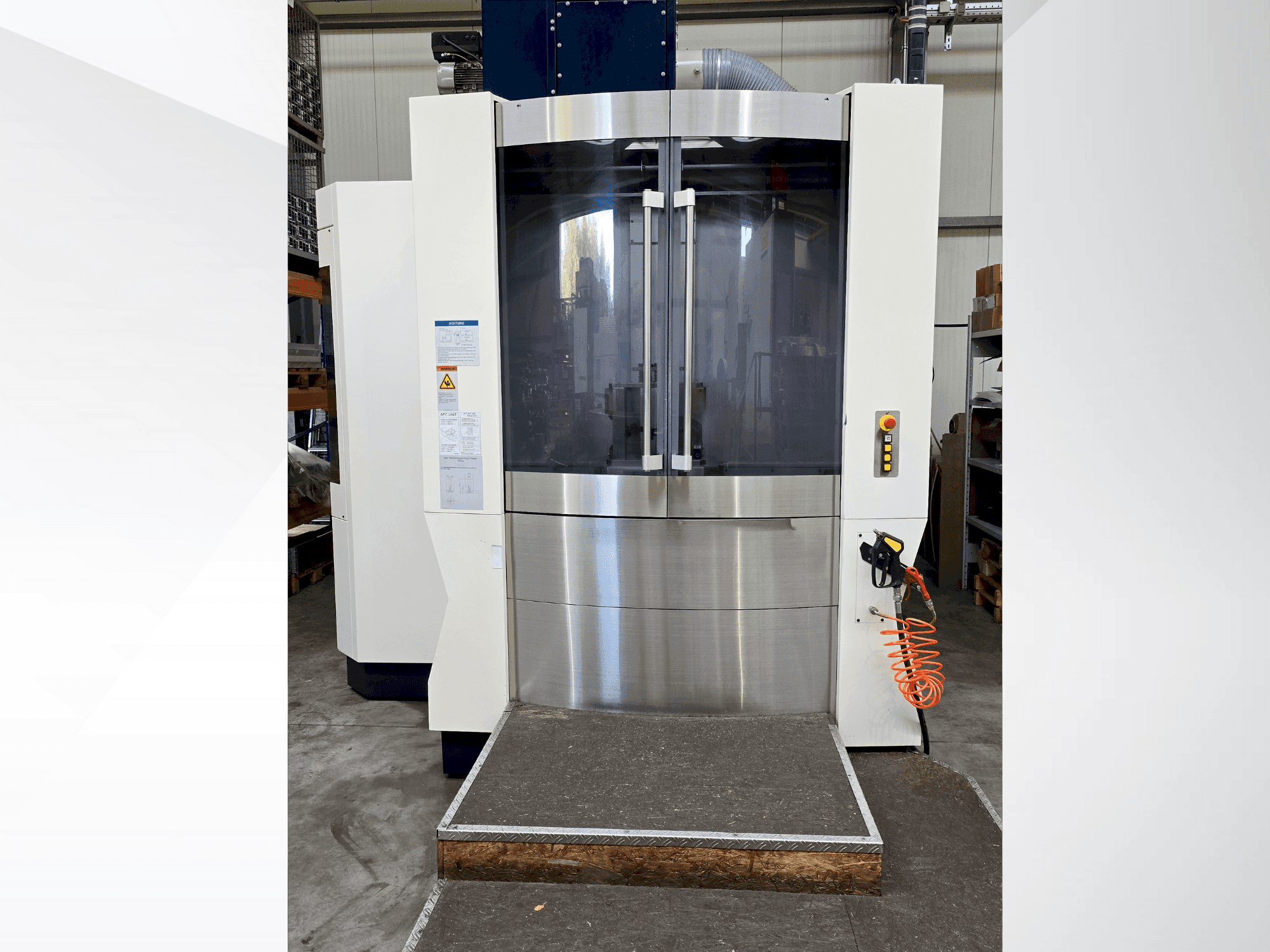

Front view of Makino A61nx  machine

Makino - A61nxDE-MIL-MAK-2015-00001

Rs. 17,366,500
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Makino A61nx horizontal machining center was manufactured in 2015. It features a robust spindle with speeds up to 14,000 min-¹, a torque of 240 Nm, and a power of 30 kW. The machine includes a high-capacity tool magazine with storage for 60 tools and rapid tool change times. Ideal for heavy-duty machining with a pallet size of 500 × 500 mm and maximum workpiece weight of 700 kg. For more information about this horizontal machining center, please reach out to us.

Overview

  • brand: Makino
  • year: 2015
  • MODEL: A61nx
  • application type: Milling
  • Location: Switzerland
  • machine type: Horizontal Machining Centre
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - Makino A61nx

General Data

  • Measurements width: 2910 mm
  • Measurements depth: 4888 mm
  • Measurements height: 2981 mm
  • Machine weight: 12000 kg

Control Unit

  • Brand: FANUC
  • Model: 310iS-A

Main drive

  • Number of spindles: 1
  • Spindle speed range: 14000 1/MIN
  • Spindle motor power: 22 kW
  • Tool taper: HSK-A 63
  • Number of axis: 4

Movement

  • X-AXIS Movement: 730 mm
  • Y-AXIS Movement: 730 mm
  • Z-AXIS Movement: 800 mm

Workpiece

  • Workpiece weight: 500 kg

Tools

  • Max weight: 12 kg
  • Max tool diameter: 70 mm
  • Max tool length: 510 mm

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes
  • Cooling pressure: 30 bar

    Additional equipment

    • - Direct path measuring systems in XYZ-axis
    • - Core cooling of the ball screw spindles and bearings with circulating oil // Jacket cooling on spindle nose and motor
    • - High-speed blanking function
    • - Linear guides in heavy-duty design: 55 mm
    • - https://gindumacgmbh.zendesk.com/sales/deals/176297652#:~:text=Tool%20magazine%3A%20Storage%20capacity%2060%20tools
    • - Renishaw OMP60 touch probe // Renishaw Inspection Plus
    • - Automatic override of the corners: G62
    • - Restart after programme interruption
    • - User macro with 600 variables
    • - Flow monitor for coolant through the spindle

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Pallet size: 500 × 500 mm
        • - Maximum workpiece dimensions (diameter/height): 800/1000 mm
        • - Direct path measuring systems, core cooling and jacket cooling, chip-to-chip time: 2. 4 s
        • - Memory extension for 500 main and sub-programmes
        • - Air curtain on the operating door
        • - Space requirement: approx. 8. 3 x 5 x 2. 981 m (without conveyor)
        • - Hours: 27600h duty cycle / 10350h processing time
        • - Feed from below: the transformer is external and where you put the cables (power + network) in from above or below doesn't matter. The chip system is a closed circuit, so this should be possible.

      Extra information

      • - Transport dimensions: 4704 mm x 2466 mm x 2916 mm // The pallets do not have integrated media feed-throughs for supplying hydraulic clamping devices such as clamping force blocks. The pallet itself is clamped from below, but there are no additional media ducts or connections for further clamping devices on the pallet. A hydraulic or pneumatic clamping device connection via the pallet is therefore not provided

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
