MAHR - MARSURF GD 26DE-MEA-MAH-2019-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used MAHR MARSURF GD 26 - CMM For Sale | gindumac.com

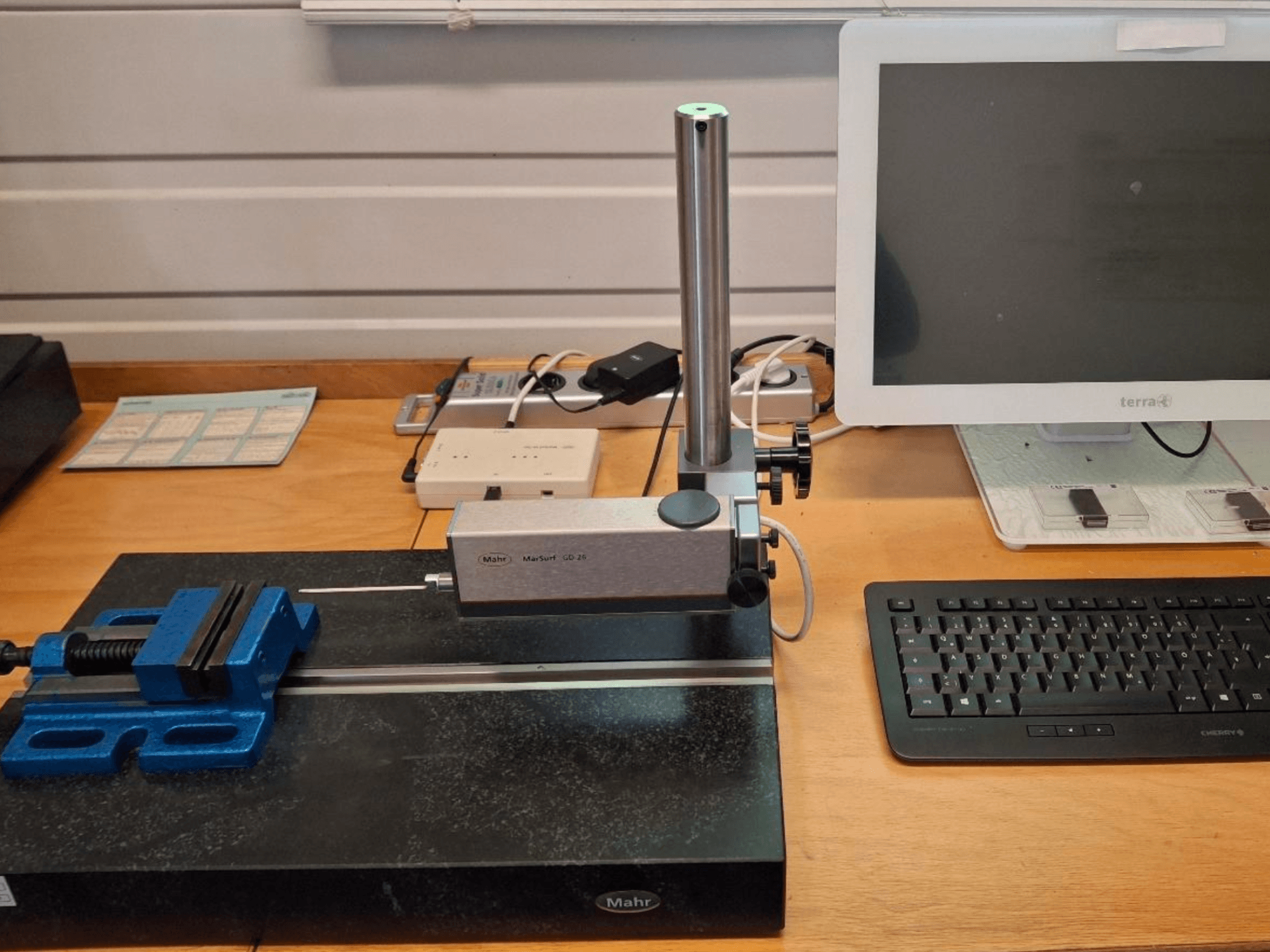

CMM machine manufactured in 2019. This MAHR MARSURF GD 26 features a measuring path of 26 mm and a maximum measuring range of up to ±750 µm. It includes a motorized height adjustment of 7.5 mm and an automatic probe system zero setting. If you are looking to get high-quality measurement capabilities, consider the MAHR MARSURF GD 26 machine we have for sale. Contact us for further details.
Overview
- brand: MAHR
- year: 2019
- MODEL: MARSURF GD 26
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
Technical Information - MAHR MARSURF GD 26
Dimensions
- Machine Weight: 1.3 kg
Movement
- Number of Axes: 2
- X-axis Travel: 26 mm
Additional Information
Measuring Path: 26 mm
Measuring Range: ±250 µm
Maximum Measuring Range: up to ±750 µm
Measuring Speed: 0.1 – 1.0 mm/s
Positioning Speed (X-Axis): 5 mm/s
Height Adjustment (Z-Axis): 7.5 mm, motorized
Positioning Speed (Z-Axis): 2 mm/s
Probe System Zero Setting: Automatic to Zero or Nominal Value
Inclination Adjustment: ±1.5°
Operating Temperature: +5°C to +40°C
Storage Temperature: -15°C to +55°C
Relative Humidity: 30% – 85% (Non-Condensing)
Weight: Approx. 1.3 kg
PC-Based Measuring System
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
