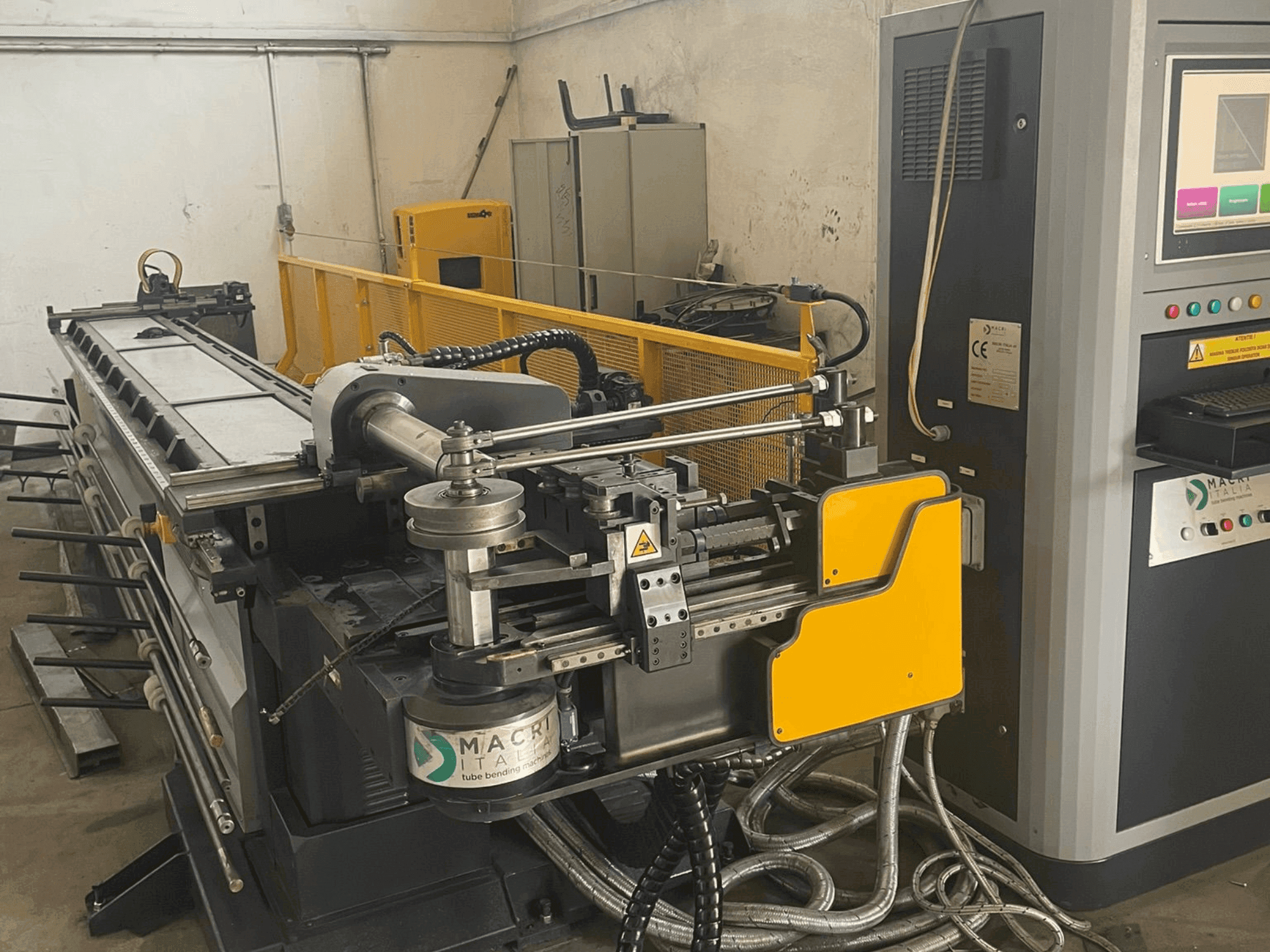

This MACRI PROVAR 6-45 U-D was manufactured in 2022. It features a maximum steel bending capacity of Ø 45x4 mm and stainless steel up to Ø 40x3 mm. With a bending angle of up to 190° and speeds reaching 450 mm/sec on the X axis, this roll bending machine ensures precision and efficiency. Consider the opportunity to buy this MACRI PROVAR 6-45 U-D roll bending machine. Contact us for more information about this machine.
Overview
- brand: MACRI
- year: 2022
- MODEL: PROVAR 6-45 U-D
- application type: Bending
- Location: Romania
- machine type: Roll Bending Machine
Technical Information - MACRI PROVAR 6-45 U-D
Dimensions
- Machine Weight: 4500 kg
Additional Information
Machine Benefits
Technical Machine Benefits
- Max diameter (steel 450 n/mm²): ∅ 45x4 mm // max diameter (stainless steel 700 n/mm²): ∅ 40x3 mm // max diameter (steel 450 n/mm²): 40x35x2 mm
- Tube passage in the collet: ∅ 45 mm
- Useful working length with tube passage in the collet: 5100 mm
- Bending angle max: 180+10°
- Speed y axis: 150 °/sec. // speed x axis: 450 mm/sec. // speed z axis: 360 °/sec.
- Precision y axis: +/-0. 1° // precision x axis: +/-0. 1 mm // precision z axis: +/-0. 1°
- Bending: clockwise
- Total installed power: 15 kw
- Voltage and frequency: 400 volt / 50 hz
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
