LVD - PhoenixDE-CUT-LVD-2022-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used LVD Phoenix For Sale | gindumac.com

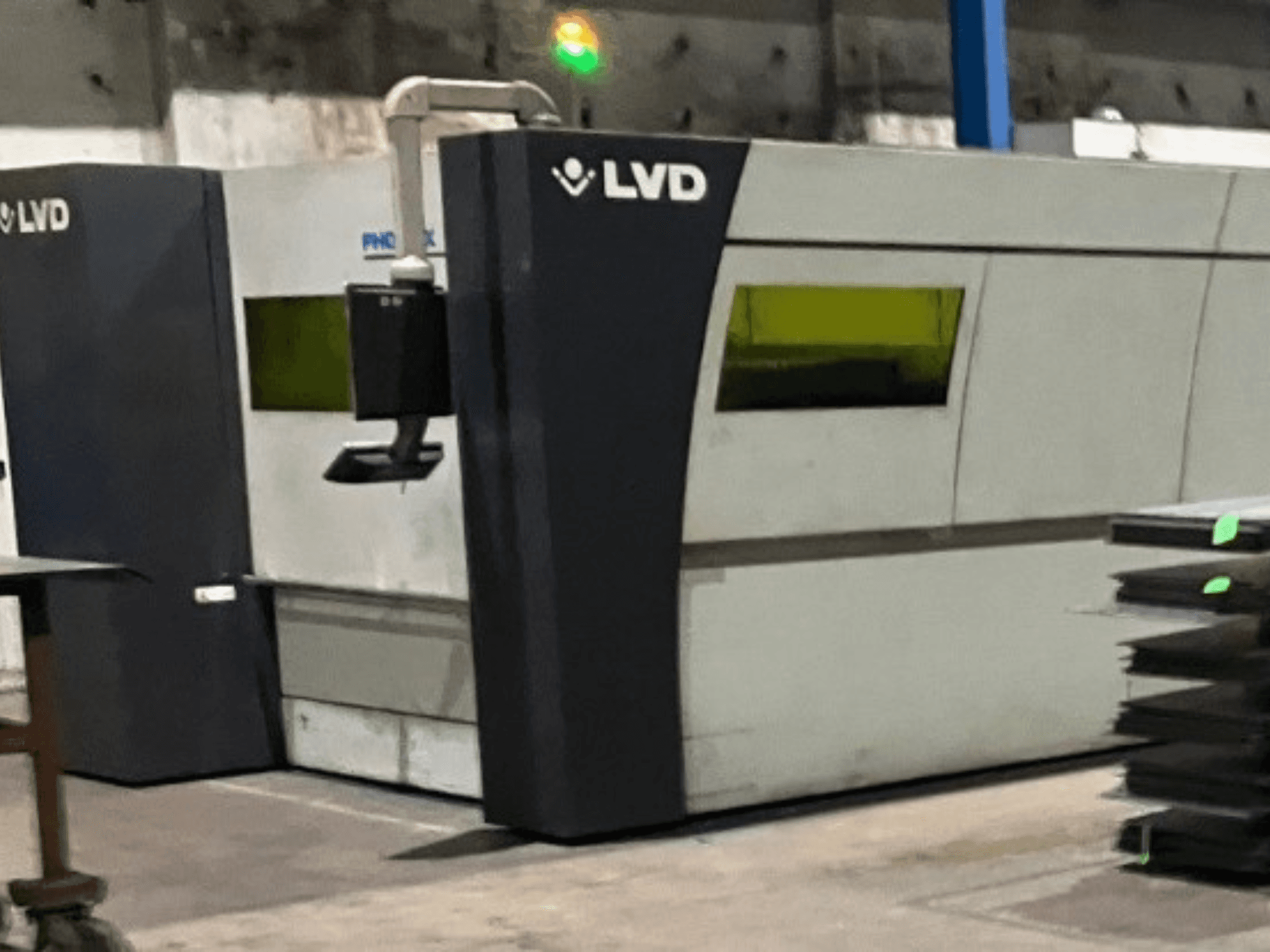

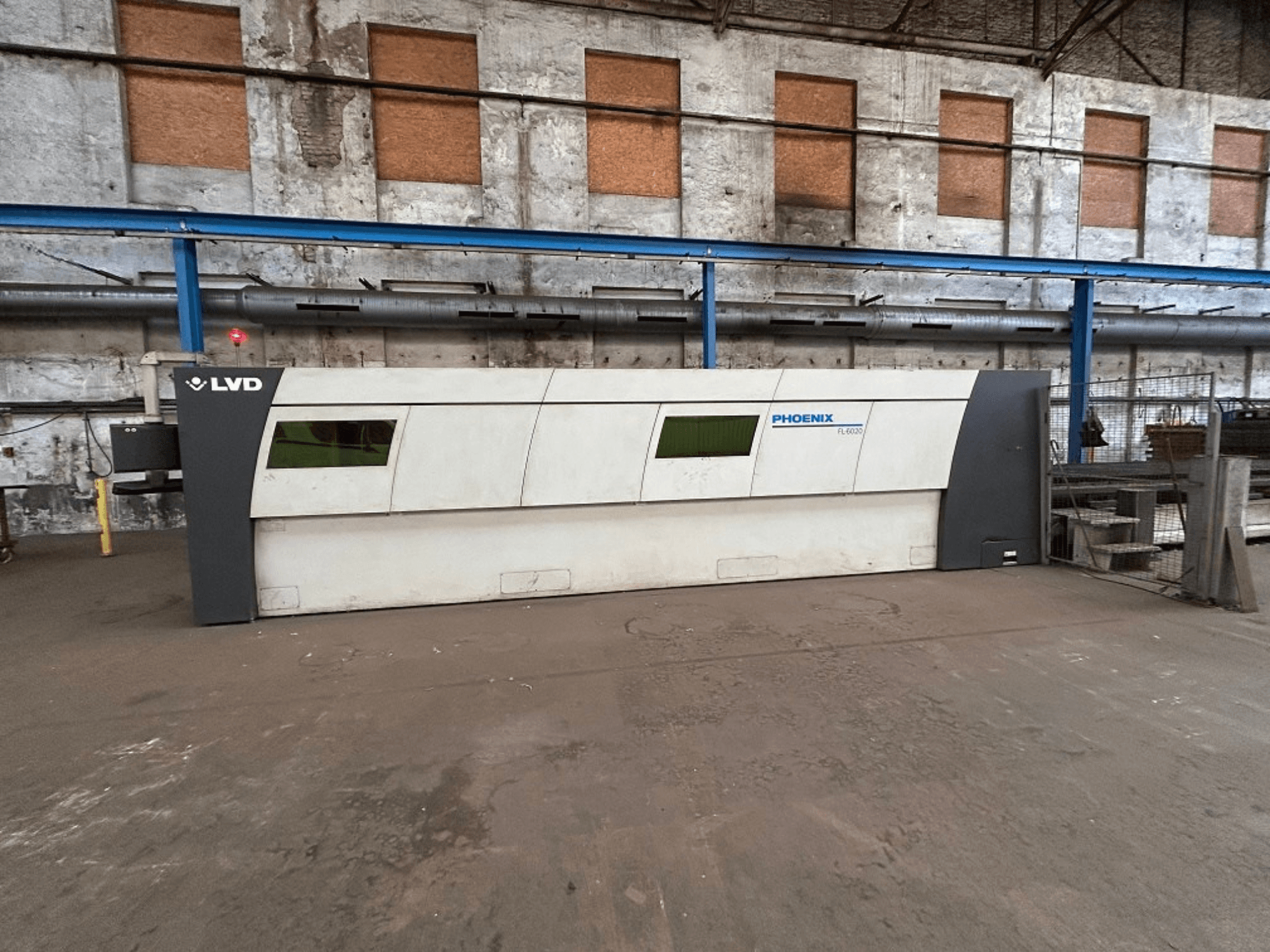

This 3-axis LVD Phoenix fiber laser cutting machine was manufactured in 2017. It features a cutting length of 6040 mm, width of 2040 mm, and can handle material thickness up to 20 mm. Consider the opportunity to buy this LVD Phoenix fiber laser cutting machine. Contact us for more information about this machine.
Overview
- brand: LVD
- year: 2017
- MODEL: Phoenix
- production hours: 10869
- application type: Cutting
- Location: Germany
- machine type: Fiber Laser Cutting Machine
- control unit brand: SIEMENS
Technical Information - LVD Phoenix
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840Dsl
Dimensions
- Machine Height: 2550 mm
- Machine Length: 17200 mm
- Machine Weight: 21500 kg
- Machine Width: 6300 mm
Movement
- Number of Axes: 3
- X-axis Travel: 6280 mm
- Y-axis Travel: 2070 mm
- Z-axis Travel: 130 mm
Technical Specification
- Laser Power: 6 kW
Additional Information
Width: 2040 mm
Thickness: 20 mm
2023: new Generation 3 laser head (original price €35,000)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
