LORENZ - LS 420AT-OTH-LOR-2008-00001
Rs. 9,112,850
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Used LORENZ LS 420 Shaping Machine For Sale | gindumac.com
Show in original language

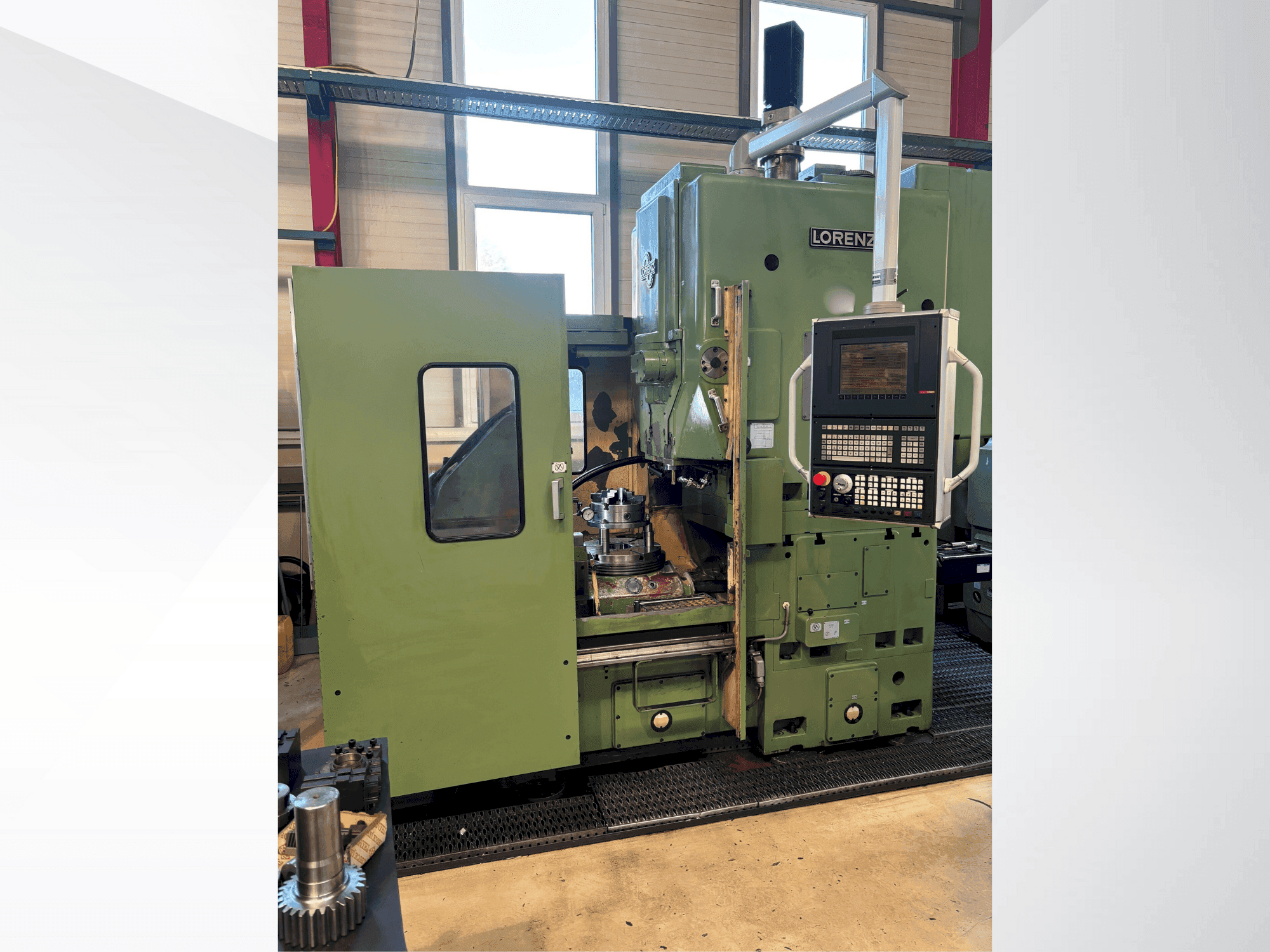

This 4-axis Lorenz LS 420 gear shaping machine was manufactured in 2008. It features a NUM control system, capable of handling external and internal splines, single points, and segment splines. It can manage spline jointing up to B = 25 mm and spline hub profiles. The stroke length is 140 mm. Consider the opportunity to buy this Lorenz LS 420. Contact us for more information.
Overview
- brand: LORENZ
- year: 2008
- MODEL: LS 420
- application type: Shaping & Planing
- Location: Spain
- machine type: Shaping Machine
Technical Information - LORENZ LS 420
Main drive
- Number of axis: 4
Additional equipment
- - rolling, single tooth, spiral feed
Additional Information
- Technical Machine Benefits:
- - Stroke length: 140 mm
- - External splines
- - Internal splines
- - Single points
- - Segment splines
- - Spline jointing up to 25 mm
- - Spline hub profiles internal / external
- - Splines up to quality 6 / 7
- Qualitative Machine Benefits:
- - Modernized and converted to cnc 2008 with all mentioned processes.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
